Linear Rib-S

Material

Made with a fire resistant fibre gypsum high density, 1200 kg/m³ core and a natural wooden veneer. An all-natural product.

Acoustics

With a standard installation our Linear Rib gives a large open area of 24% which warrants for a good sound absorption. By increasing the installation interval even higher sound absorptions can easily be achieved. Our acoustic felt, Acoustex is 0,2 mm, and available in black, white and grey.

Fire Reaction

Gustafs Linear Rib System is made for public spaces. The individual parts and the final installation has B-s1,d0 – which means little or no contribution to fire.

01 EDGE RADIUS 0,5mm +

01 EDGE RADIUS 0,5mm

The edge radius of the Linear Rib-S is 0,5 mm.

02 EASY TO INSTALL +

02 EASY TO INSTALL

Capax is our truly concealed installation system in aluminum which provides you a reliable, quick and cost saving work flow. The ribs and installation fixtures are designed as one system, warranting a perfect aligned result. This will result in a beautiful wood slatted ceiling or wall installation.

03 FLEXIBILITY IN DESIGN +

03 FLEXIBILITY IN DESIGN

Many parameters can be adjusted individually.
The ribs are available in a multitude of thicknesses varying from 13 up to 74 mm. The standard width is 38 mm, 22 mm and 88 mm. The gap between the ribs is 12 mm.

All ribs are made to order, bespoke, based on your choices:

Surface

Wood veneer, foil or painted.

Veneer finish treatment

The wooden veneer can be laquered in different sheens from high gloss to a matte oiled look, or pigmented in different coverage.

Installation

Easy to create beautiful curved walls and ceilings, or curved intersections between walls and ceilings using our standard Capax installation solutions.

Measurements

We do have standard measurements on our Linear Ribs, but we do not want to restrict you. Gustafs Linear Ribs can be customized, pre-fabricated according to your drawings.

Design

Our design is constantly evolving as we develop different surfaces, such as veneer, textiles, metals, and colors. Choose your surface and desired top finish method to achieve an unique design.

PROJECT

DTU

The Biosphere at the Technical University of Denmark is a fantastic facility with wooden slats in the heart of the university.

Explore the project

PROJECT

Office building

In the bright, welcoming entrance, Gustafs has been given the honour of cladding the walls with our wooden slats. The multi-storey atrium has been clad with Gustafs Linear Rib in ash veneer.

Explore the project

Explore more of our rib products

Linear Rib-R

Acoustic wooden slats with 3 mm rounded edge radius and the fire classification B-s1,d0. Rib-R lets you create beautiful spaces with real wood slatted walls and ceilings.

Linear Rib-R

Linear Stripe-XL

Acoustic wood veneered ribs with the highest fire classification A2-s1,d0. With Stripe-XL you can create beautiful wooden walls and ceilings with the highest fire classification.

Linear Stripe-XL

When you want your innovative vision to be as you intended

Our flexible inhouse production will realize your ideas and designs with almost no limitations. Surfaces and surface materials and surface finishes are 99% of what you see of our products so we decided to be leading experts in these fields.

KNOWLEDGE HUB / SURFACES

Wood Veneer

The Gustafs Linear Ribs is available in any of our standard veneer collections, Nature & Gemini. Veneered ribs can have different surface finishes, gloss, pigment, paint.

Explore our veneers

Paint

The bare fibre gypsum ribs can be painted in any NCS or RAL colour codes up to a gloss rate of 50.

Foil

As an alternative to wooden veneer or painted surfaces, we offer laminate as an eye catching finish for our wall and ceiling ribs.

01 VENEER FINISH +

01 VENEER FINISH

A pigment laquer can be used to change the colour tone of the veneer on Gustafs Linear Ribs and still keep the full veneer feeling. Make the wood lighter, grey toned or a why not pigment it in a spectecular colour.

02 PAINT +

02 PAINT

Ribs can be painted in an endless number of colours. You can use any RAL or NCS colour you want.

03 FOIL +

03 FOIL

As an alternative to wooden veneer or painted surfaces, we offer foil as an eye catching finish for our wall and ceiling ribs.

01 Surface option – Wood veneers

Nature veneers

Nature veneers will have the lively variations and characteristic expression associated with each wood species.
Learn more about how veneers can be sliced and matched >>

ASH

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 56,3

ROTARY CUT BIRCH

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 61,3

BIRCH

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 56,2

MAPLE

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 55,4

BEECH

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 38,5

OAK

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 35,5

ELM

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 30,5

WALNUT

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 21,6

SAPELE

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 20,5

AMERICAN PINE

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 47,8

PEAR

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 29,2

CHERRY

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 24,2

When you want your innovative vision to be as you intended

Shape, dimensions, pigment, play with angles, bend surfaces, build optical illusions and create harmonious innovations. By experimenting freely, you can achieve an even more exciting and personal expression. The only limit is your creativity. We can assist you with your design wishes and help provide the rib solution with your own personal touch.

01. Dimensions

You can freely combine different rib dimentions on your wall or ceiling. You can vary both the width and the thickness of the ribs.

02. Spacing

You can vary open and closed spacings, coloured spacings and combine lights with your wall or ceiling surface.

03. Installation

Combine different dimensions from the Gustafs Linear Rib range.
See the available dimensions for each application.

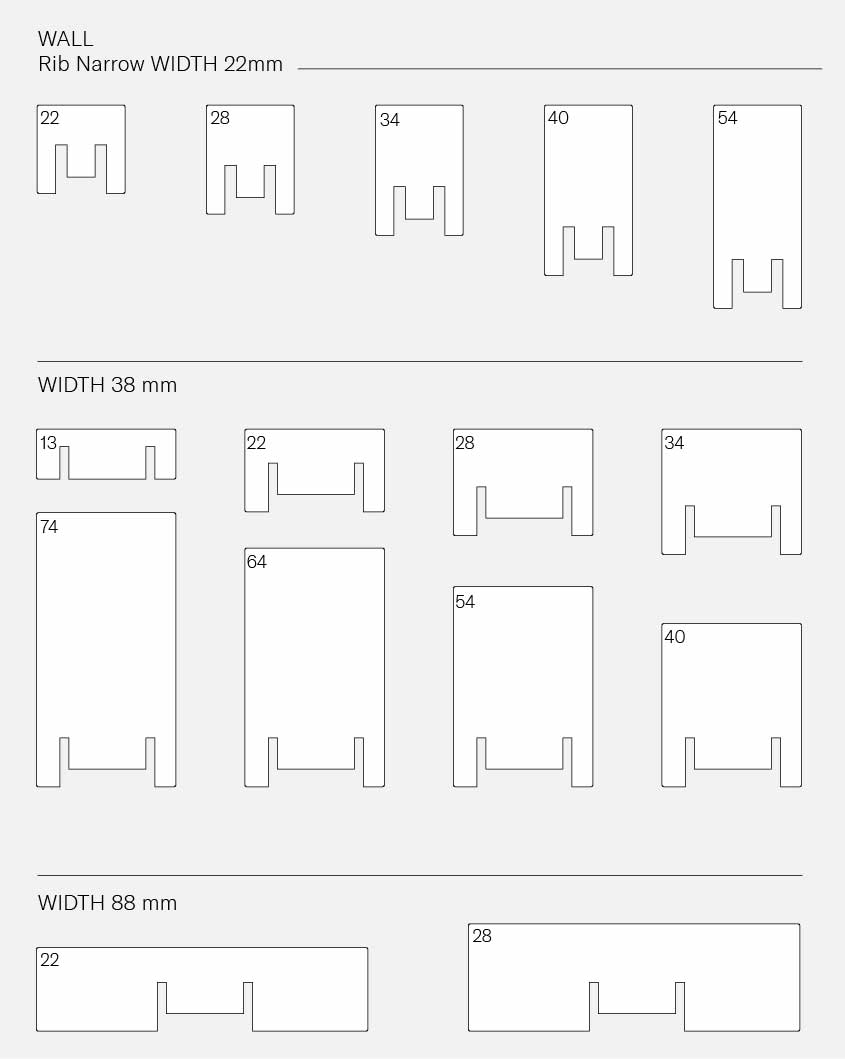

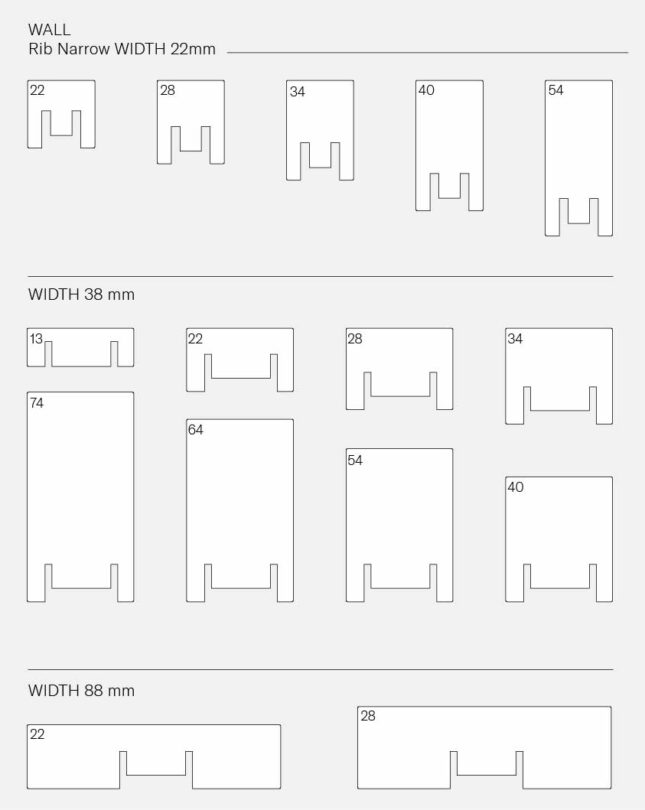

01 STANDARD RIB DIMENSIONS

THICKNESS	LENGHT	WIDTH
13	2970	–	38	–
22	2400	22	38	88
22	2970	22	38	88
28	2400	22	38	88
28	2970	22	38	88
34	2400	22	38	–
34	2550	–	38	–
34	2970	22	–	–
40	2400	22	38	–
40	2550	–	38	–
40	2970	22	–	–
54	2400	22	38	–
54	2550	–	38	–
54	2970	22	–	–
64	2400	–	38	–
64	2550	–	38	–
74	2400	–	38	–
74	2550		38	–

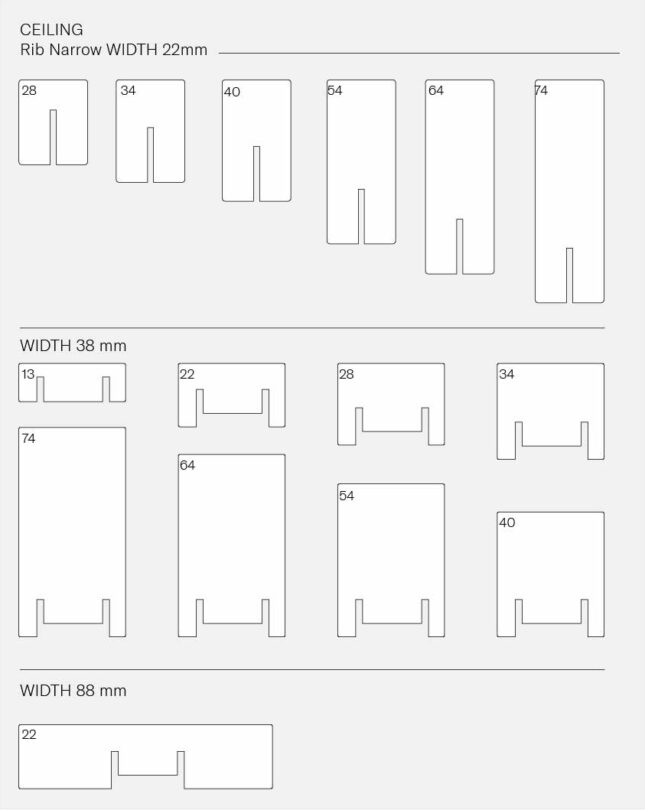

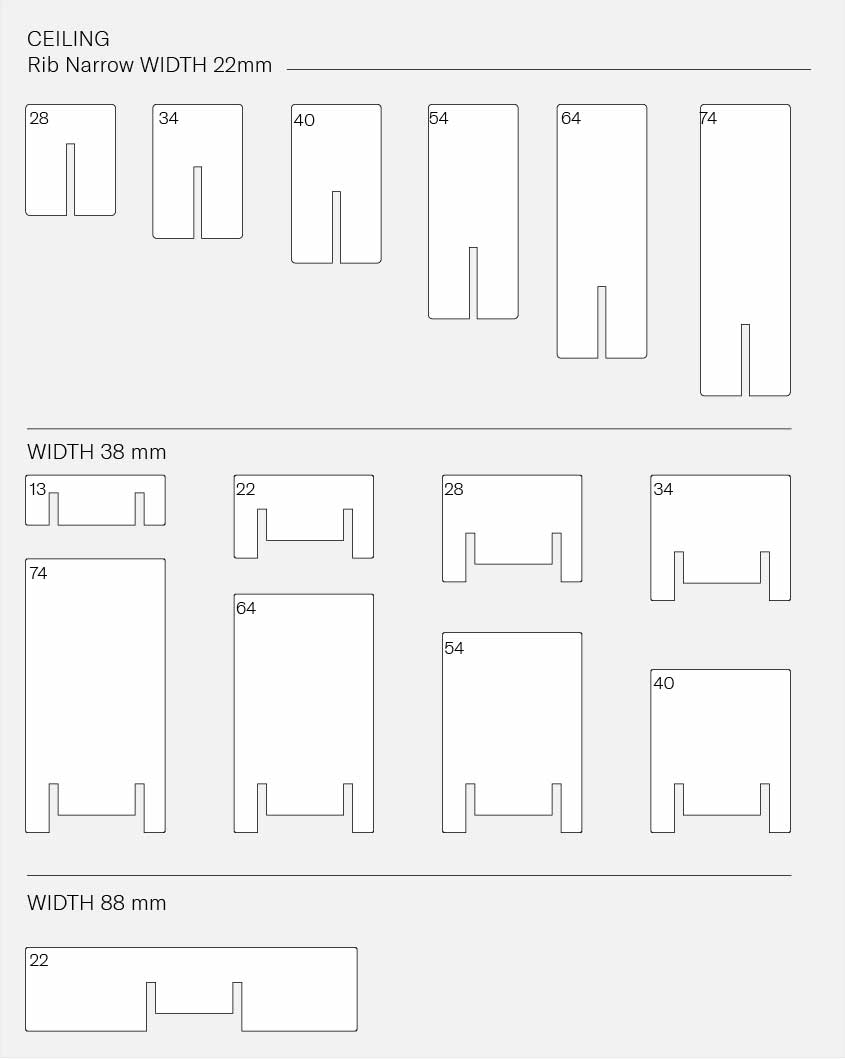

Possible Rib dimensions for Ceilings:

Width: 38 mm, Thicknesses 13-40 mm.
Width: 88 mm, Thickness 22 mm.

01. DIMENSIONS +

01. DIMENSIONS

Rib-S is available in a multitude of dimensions.
Standard widths 22 mm, 38 mm and 88 mm.
Thicknesses from 13 mm up to 74 mm. Combine freely.

02. SPACING +

02. SPACING

Using our standard installation method, the space between the ribs is 12 for walls and 12 or 22 mm for ceilings, but you can achieve an even more exciting and personal expression by experimenting with the space between the Ribs

02. Spacing

Gustafs Linear Rib acoustics

Quality in room acoustics requires a well-balanced combination of absorption and reflection. Gustafs Linears will deliver perfect recipes and provide good sound diffusion too. Simply adjust the room acoustics by varying the spacing. These Helmholtz absorbers are typically used to reduce mid to medium high frequencies.

KNOWLEDGE HUB / ACOUSTICS

Wall installation acoustic values Linear Rib-S

APPLICATION	RIB WIDTH	SPACING	INSULATION	αw / NCR
Wall	38 mm	12 mm	17 mm	0,70-C/0,80
Wall	38 mm	12 mm	45 mm + 30 mm void	0,70-C/0,80
Wall	38 mm	22 mm	17 mm + 30 mm void	0,85-B/0,90

Ceiling installation acoustic values Linear Rib-S

DEMOUNTABLE

APPLICATION	RIB WIDTH	SPACING	INSULATION	αw / NCR
Ceiling-CD	38 mm	12 mm	15 mm + 200 mm void	0,80-B / 0,80
Ceiling-CD	38 mm	22 mm	15 mm + 200 mm void	0,90-A / 0,90

SEMI DEMOUNTABLE

APPLICATION	RIB WIDTH	SPACING	INSULATION	αw / NCR
Ceiling	38 mm	12 mm	45 mm + 200 mm void	0,70-C / 0,80
Ceiling	38 mm	62 mm	45 mm + 200 mm void	0,95-A / 1,00

Safety in our core

Gustaf Linear System Ribs a reliable cladding all over the world, giving both you and your customers peace of mind with your choice. Gustafs Linear System Rib achieves Euroclass Reaction to Fire B-s1,d0.

KNOWLEDGE HUB FIRE

Reaction to fire – classifications Gustafs Linear System (EN 13501-1)

PRODUCT	CORE MATERIAL	VENEER	PRINTED VENEER	FOIL
Linear Rib System	High Density Fibre Gypsum	B-s1,d0	B-s1,d0	B-s1,d0
High Density Fibre Gypsum	ASTM-A	ASTM-A	ASTM-A	ASTM-A

FIRE SAFETY +

FIRE SAFETY

The core in our ribs makes our fire safety unique. The rest is superficial.

KNOWLEDGE HUB / CORE

Download

FIRE CLASSIFICATION

Reaction to fire

DOWNLOAD.PDF

With our low emission wood, you can breathe out.
And everyone else can breathe in.

The fibre gypsum core of Gustafs panels is regarded an inherently none-emitting source of VOCs, just like stone, ceramic, metals, glass and concrete. The panels are also completely impregnation-free and that is why our panels are naturally very low emitting, guaranteeing a healthy room air quality.

KNOWLEDGEHUB / EMISSIONS

Our panels comply with the following building certifications

	TVOC required	TVOC result	Formaldehyde required	Formaldehyde result
BREEAM	≤ 0,3 (mg/m³)	0,147 (mg/m³)	≤ 0,01 (mg/m³)	0,005 (mg/m³)
LEED none U.S.	≤ 1,0 (mg/m³)	0,147 (mg/m³)	< 0,06 (mg/m²h)	0,005 (mg/m²h)
BVB	< 0,2 (mg/m²h)	0,16 (mg/m²h)	< 0,05 (mg/m²h)	0,005 (mg/m²h)
M1	< 0,2 (mg/m²h)	0,160 (mg/m²h)	< 0,05 (mg/m²h)	0,005 (mg/m²h)
Blue Angel	≤ 0,3 (mg/m³)	0,147 (mg/m³)	≤ 0,06 (mg/m³)	0,005 (mg/m³)

More Building Certifications >>

EMISSIONS +

EMISSIONS

No added formaldehyde

The glues and lacquers used in our solutions are always certified NAF systems – No Added urea Formaldehyde.

KNOWLEDGE HUB / EMISSIONS

A zero footprint is our target

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy, that our products are made from 98 percent natural materials and 94 percent recycled materials, and that all wood panels are free from retardants, added formaldehyde or isocyanate binders.

KNOWLEDGEHUB / SUSTAINABILITY

5 natural benefits of the fibre gypsum core

Gustafs Linear Ribs are produced with a high-density, reinforced fibre gypsum core having inherent properties regarding dimension stability, emissions, sustainability, fire safety and acoustics. These 5 fundamental demands in today’s modern building industry effectively eliminate most traditional wood-based alternatives.

Stability

Unaffected by indoor climate changes, fibre gypsum doesn’t bulge, warp or swell – making zero-spaced joints perfectly viable. The ribs will stay stable and straight, with a beautiful end result over their full life time.

Fire Safety

Non-combustible and homogeneous by nature, fibre gypsum doesn’t need chemicals to achieve its fire rating. A Linear Rib with a wood veneer wrapping still consists of 97% fibre gypsum and has a fire classification of B-s1,d0.

Acoustics

Acoustically, the use of wall cladding with a higher density is usually favourable compared to lighter materials. Fibre gypsum-based ribs are heavier than wood-based wall cladding materials and sound waves will not make them vibrate or resonate.

Sustainability

Thanks to the cores high density and low thermal conductivity, the ribs help to maintain room temperature, reducing the need for cooling or heating. Fibre gypsum contains of 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material, very important for the certification of buildings.

Emissions

Fibre Gypsum cores are extremely low emitting. One of the reasons is that they are produced without wood binders and automatically without added urea-formaldehyde or isocyanates. Interior Panels and Ribs, containing 97% Fibre Gypsum, will per definition have very low TVOC and formaldehyde emissions.

Challenge us by designing a panel we can’t produce.

Gustafs Linear system Ribs, provides designers the possibillity to create exciting and appealing rooms while at the same time ensuring the highest possible well-being for their occupants.

OUR PROCESS

01 SHAPES +

01 SHAPES

It is also possible to create ribs with bespoke shapes.

02 PATTERNS +

02 PATTERNS

A. Offset / various dimensions
B. Decreasing lengths
C. Diagonal
D. Fishbone
E. Offset Fishbone

03 COLOURS +

03 COLOURS

The flexibility in our production allows you to create with almost no restrictions. Room claddings should be made to fit the room not the other way around. We can assist you with your design wishes and help provide a solution with your own personal touch.

Some of our bespoke projects

Singing wall

At Sthlm New 04 creativity has taken its form in a unique installation, the architects’ inspiration from the music has left its mark. By combining Linear Rib in oak and walnut veneer , sound waves have been created to the tunes of two different songs.

>>

Kista+

The office entrance interior at IBM has been designed with Gustafs decorative panelling for walls at different locations in the new office.

>>

Malmö live congress

The featured wall rising at the entrance of the congress is cladded with Gustafs solid painted timber panels in various red and black shades. Along with the painted Gustafs rib’s there are integrated lighting that creates a beautiful effect on the wall.

>>

Details that make the difference

Rib Accessories are unique details including lights, hatches, grilles or other solutions to be combined with your wall or ceiling system. Our panel accessories complete your vision and simplify complicated solutions.

Rib end-caps

Self-adhesive end-caps for gypsum ribs. Supplied in real veneer matching the veneer on the ribs.

Hatches

For quick frequent access to the ancillary systems behind suspend ceilings.

D-Line – Linear lightning för Gustafs Linear System

Integral linear lightning solution for Gustafs Linear Ceiling System. The lamp housing uses the same fixture clips as the ribs and has due to that a free positioning and is demountable. D-Line uses a modern micro prismatic dimming in combination with high-quality LED light sources.
Installation instructions D-line >>

Spot lightning för Gustafs Linear System

Integral spot lightning solution for Gustafs Linear Ceiling System. The lamp track uses the same fixture clips as the ribs and has due to that a free positioning and is demountable. Comes with a modern micro prismatic dimming and high-quality LED light sources.

Acoustex 0,1 – Acoustic felt for Gustafs Linear System

Black acoustic backing with fire class A2-s1,d0. The anti-tear qualities make the felt suitable for use in schools and other tough environments. Supplied in rolls 1,27×100 m. Thickness 0,1 mm.

Acoustex 0,2 – Acoustic felt for Gustafs Linear System

Our most popular black, grey or white acoustic backing with fire class B-s1,d0. Supplied in rolls 1,2×100 m for black and white, grey comes 1,3×100 m. Thickness 0,2 mm.

Acoustex 3,0 – Acoustic felt for Gustafs Linear System

Acoustic backing in the colours Wool Grey or Anthracite with fire class B-s1,d0. The anti-tear qualities make the felt suitable for use in schools and other tough environments. Supplied in rolls 1,2×25 m. Due to the thickness of 3,0 mm, its form stability allows use with wider spacings between the linear ribs. Contains minimum 50% recycled PET bottles and is approved by all international standards regarding in-door climate emissions.

Acoustex 9,0 – Sturdy acoustic felt for multiple use

Extremely form stable acoustic backing in the colours Wool Grey, Dark Grey or Anthracite with fire class B-s1,d0. Can be used as an individual sound absorber or integral as the acoustic insulation layer behind Gustafs demountable Linear Ceiling-CD system. Supplied in sheets in various formats. Contains minimum 50% recycled PET bottles and is approved by all international standards regarding in-door climate emissions. Thickness 9,0 mm.

Solid wood corner – Corner profile

For a smooth transition, these solid wood corner pieces will be adapted to the design of the corner and the dimensions of the ribs meeting vertically. Comes in the wood specie of choice.

A versatile installation system with many benefits

Capax is our unique aluminum profile installation system that provides you a concealed, reliable, quick and cost saving installation. The Quick-Up assembly system is a user friendly aluminum grid offering installation reliability and a perfect visual result. No tools are needed to assemble the interlocking components. A demountable version is available, ideal when access to the ancillary systems is required.

Wall installation

All Rib dimensions can be used.

Concealed and fully demountable.

WALL INSTALLATION

WALL INSTALLATION RIB 22mm

Ceiling installation

Concealed and fully demountable installation.

Possible for the Rib dimensions:

Width: 38 mm, Thicknesses 13-40 mm.
Width: 88 mm, Thickness 22 mm.
Dimensions

CEILING INSTALLATION

01 CURVED INSTALLATIONS +

01 CURVED INSTALLATIONS

The standard radius for curved installation is possible down to 300mm for both convex and concave, shapes.

02 CONCEALED INSTALLATION +

02 CONCEALED INSTALLATION

Perfect visual result with truly concealed and quick installation. No tools are needed to assemble the interlocking components.

03 DEMOUNTABLE +

03 DEMOUNTABLE

Ribs can be installed with spring clips, they can be demounted by gently pulling, starting at one of the ends.

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Rib-S

Fire

+

Reaction to Fire: B-s1,d0

ASTM: A

Acoustics

+

Configurations possible to achieve absorption class A, B or C.

Environmental performance certification program for buildings

+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions

+

E1
M1
Blue Angel
AgBB
French VOC
Belgian VOC

Declaration of Performance

+

Yes

EPD

+

Yes

FSC®

+

FSC® (Forest Stewardship Council®)
Gustafs FSC® certificate code is: SAI-COC-010919

And more ...

+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Country of origin: Sweden
Hygien cleaning: 70% Alc.
Recycled content: 94%
Recycled Post consumer: 17%

Material

Acoustics

Fire Reaction

All ribs are made to order, bespoke, based on your choices:

Surface

Veneer finish treatment

Installation

Measurements

Design

DTU

Office building

Explore more of our rib products

Linear Rib-R

Linear Stripe-XL

When you want your innovative vision to be as you intended

Wood Veneer

Paint

Foil

01 Surface option – Wood veneers

Nature veneers

When you want your innovative vision to be as you intended

01. Dimensions

02. Spacing

03. Installation

Possible Rib dimensions for Ceilings:

02. Spacing

Gustafs Linear Rib acoustics

Wall installation acoustic values Linear Rib-S

Ceiling installation acoustic values Linear Rib-S

Safety in our core

Reaction to fire – classifications Gustafs Linear System (EN 13501-1)

Download

REACTION TO FIRE

With our low emission wood, you can breathe out. And everyone else can breathe in.

Our panels comply with the following building certifications

No added formaldehyde

A zero footprint is our target

5 natural benefits of the fibre gypsum core

Stability

Fire Safety

Acoustics

Sustainability

Emissions

Challenge us by designing a panel we can’t produce.

Some of our bespoke projects

Singing wall

Kista+

Malmö live congress

Details that make the difference

Rib end-caps

Hatches

D-Line – Linear lightning för Gustafs Linear System

Spot lightning för Gustafs Linear System

Acoustex 0,1 – Acoustic felt for Gustafs Linear System

Acoustex 0,2 – Acoustic felt for Gustafs Linear System

Acoustex 3,0 – Acoustic felt for Gustafs Linear System

Acoustex 9,0 – Sturdy acoustic felt for multiple use

Solid wood corner – Corner profile

A versatile installation system with many benefits

Wall installation

Ceiling installation

Possible for the Rib dimensions:

Avoid devalue engineering of your design

Available certifications for Rib-S

Fire

Acoustics

Environmental performance certification program for buildings

Emissions

Declaration of Performance

EPD

FSC®

And more ...

Download files for Gustafs Linear Ribs

CAD-FILES

With our low emission wood, you can breathe out.
And everyone else can breathe in.
