Linear Rib Installation – Wall

The Capax installation system for Linear RIB is a user-friendly aluminium grid, offering installation reliability and a perfect visual result.

Compatible products: Linear Rib-R, Rib-S and Stripe-XL.

APPLICATION

Wall

TYPE / SOLUTION

Linear System

INSTALLATION

CAPAX SYSTEM

Capax System Rib – wall installation

Capax is our aluminum profile installation system that provides you a concealed, reliable, quick and cost saving installation. The Quick-Up assembly system is a user friendly aluminum grid offering installation reliability and a perfect visual result. No tools are needed to assemble the interlocking components. A demountable version is available, ideal when access to the ancillary systems is required.

01 EASY TO INSTALL +
01 EASY TO INSTALL

Capax installation system provides you a concealed, reliable, quick and cost saving installation.

02 CURVED INSTLLATIONS +
02 CURVED INSTLLATIONS

Using standard components, curved installations are possible down to radius 300 mm for both convex and concave shapes.

Customised installations

These instructions refer to our standard installation. For other solutions such as curved walls, closures and door liners, contact our support.

CONTACT SUPPORT

Before you start the installation

Plan

Select Ribs on colour shade and plan your ceiling installation, we recommend mixing varying shades randomly.

Room temperature

The room temperature should be between 18-50 C°.

Humidity

The air humidity should be between 25-60%. The humidity in the under laying construction (concrete) should not be higher than 15%.

Step by step - Wall installation using 2400 mm long Linear Ribs.

STEP 1

1. Attach the Capax BASE-W profiles to the wall every 600 mm with the help of a laser-level. Every rib should be supported by 5 BASE-W profiles with approximately 600 mm in between the supporting points.

STEP 2

2. The holes in the BASE-W profile must always be aligned, also when placing several BASE-W profiles in line.

STEP 3

3. Optionally, install a layer of 17 mm insulation material between the profiles.
Alternatively use 45 mm thick insulation, in that case, add 28 mm battens behind the BASE-W profiles.

STEP 4

4. Optionally, install Acoustex felt with some double-sided tape to keep it in place during the installation. Pre-hole the Acoustex felt by using another BASE-W profile as a template.

STEP 5

5. Attach the Capax U-FIX holder flush to the BASE-W profile, using the prefabricated holes.

STEP 6

6. Twist the U-FIX clips 90° into a perpendicular position in relation to the BASE-W.

STEP 7

7. Attach the Ribs to the U-FIX clips by using a rubber hammer. Use Capax 3253 to support and align vertically installed ribs. If needed, carefully re-align by hitting the ends of the Ribs with a rubber hammer and using a wooden protection block.

STEP 8

8.  In-line connections of ribs should be backed by the U-FIX-N 200 connector or by a sharing U-FIX.



Customised installations

These instructions refer to our standard installation. For other solutions such as curved walls, closures and door liners, contact our support.

CONTACT SUPPORT

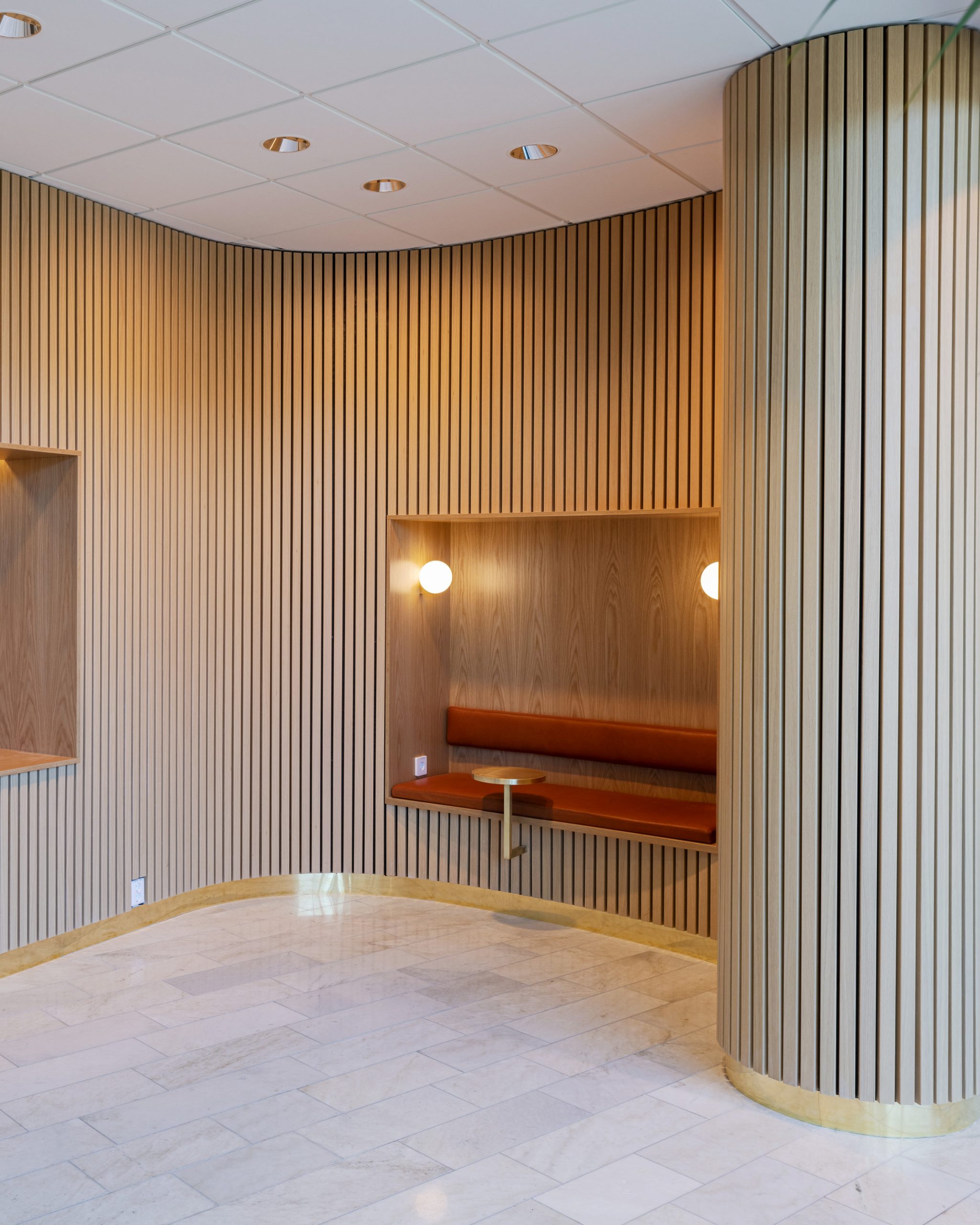

Curved wall installations

Standard curved installation with Linear rib, is possible down to a radius of 300 mm.

Capax wall Profiles

U-fix 50

Gripper for Ribs, with hole, length 50 mm



U-fix 200

In-line connector for ribs, length 200 mm

u-fix



Base-W

Wall batten, length 3000 mm

base.wall



Base-w C-50

Wall batten, length 3000 mm

base.wall



INSULATION & ACOUSTEX

A. Capax BASE-W
B. Wall fixing screw
C. Gustafs Ribs
D. Spring clips
E. Capax U-Fix
F. Insulation
G. Capax In-line connection

Products with this installation method

*Please note Ribs with width 22mm (Narrow) is installed using different components. Installation Rib Narrow.

Wood

Wood is a natural product and each veneer is unique. Colour, pattern and structural differences are considered as normal and a part of the décor. Select panels and ribs on colour shade and plan your wall or ceiling installation, we recommend mixing varying shades randomly. Wood changes over time when exposed to UV-light.

Conditions for Storage, Installation and Use

Only for indoor use and not in wet rooms. Storage, Installation and Use at 18-50 C° and 25-60% air humidity. The humidity in the under laying construc-tion (concrete) should not be higher than 15%. Gustafs solutions are sensitive to humidity and water, therefore they should always be stored dry and in-door.

Storage & Transportation

Do not transport unsecured ribs.

Do not stack pallets.

Keep the packaging closed during storage.

Lift ribs flat, vertically and one at the time.

Avoid exposure to strong and direct sunlight.

Cleaning

Cleanings is done by dry mop or vacuum. Use synthetic cleaning fluid without ammonia for greasy stains, fruit, wine and coffee. Blood is removed with cold water.

Our UV coated and Laminate surfaces are approved for hospital cleaning products containing up to 70% alcohol.

On building site

Avoid exposure to strong and direct sunlight.

Do not expose visible surfaces to sharp objects during installation.

Do not slide products on each other.

Protect both non-installed and installed panels and ribs from impact coming from ladders, trolleys, furniture installation, etc, including all other workers and their tools.
