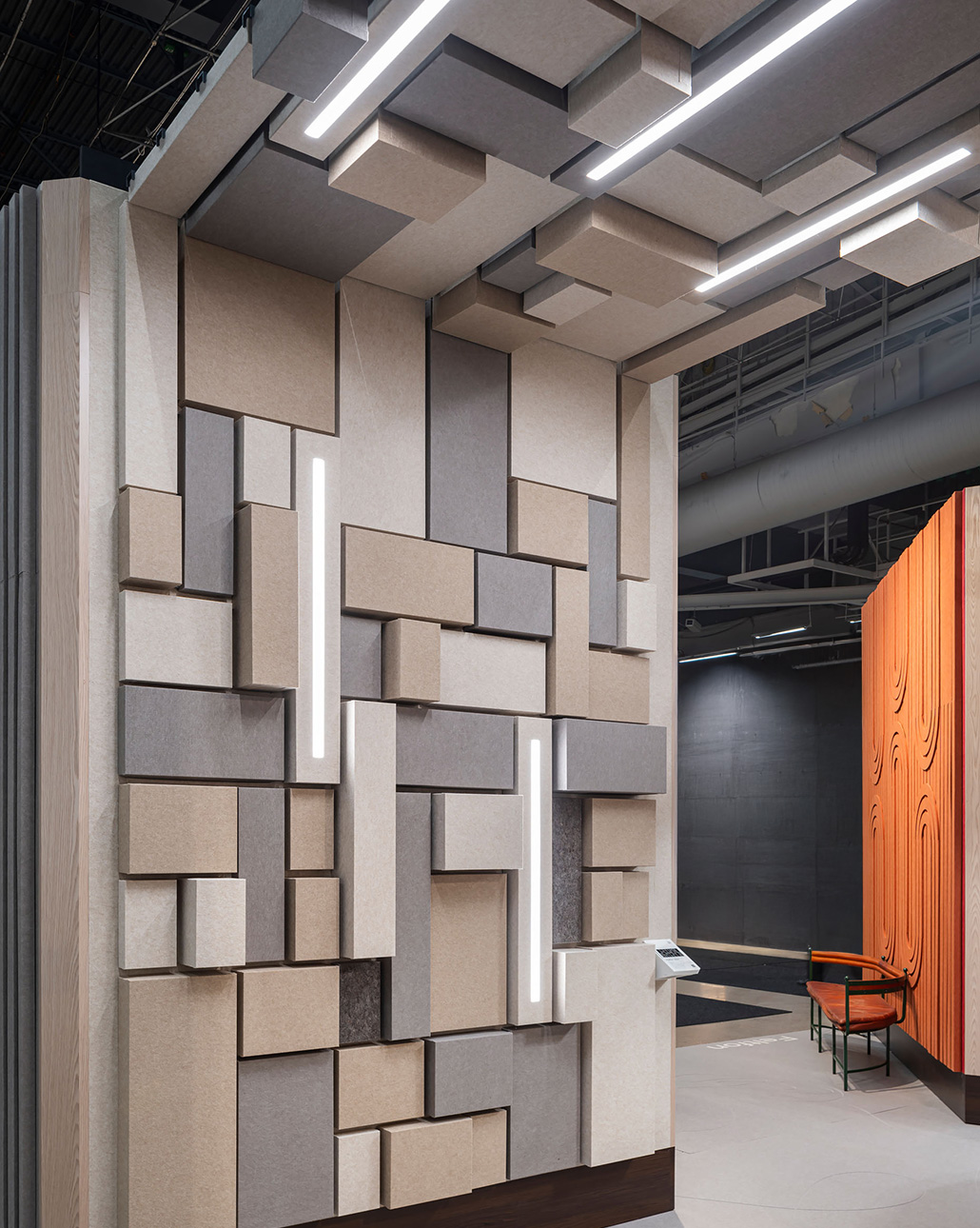

Feltfon Blox

WALL AND CEILING ABSORBENT in cubical design

Feltfon© Blox utilizes the user-friendly Capax installation system, available in designs for both walls and ceilings. With nine available rectangular dimensions in various depths, the Blox system provides the flexibility to craft an infinite array of distinctive designs. Engineered with Gustafs Acoustex©, Feltfon Blox is water-resistant, making it suitable for diverse wet public interiors, including swimming halls and spas. Functioning as a highly effective noise-cancelling solution, Feltfon© Blox achieves a fire class B-s1,d0 rating without requiring impregnations.

TYPE / SOLUTION

Feltfon Jewel

APPLICATION

Ceilings, Wall, Wet rooms

Fire Class

B-s1,d0

Acoustic class

A, C, D

Material

Gustafs Acoustex© 9 mm, is a next generation textile made from minimum 50% post-consumer recycled material.

Design

Create your own mix. Blox is available in many felt colours and dimensions allowing you to create patterns as you please.

A safe choice

Gustafs Feltfon is made for public spaces. It has fireclassification B-s1,d0 – which means little or no contribution to fire.

01 DESIGN +
01 DESIGN

Installed with the same installation system Feltfon Blox is easy to combine with Feltfon Linear.

02 WET ENVIRONMENTS +
02 WET ENVIRONMENTS

Feltfon Blox can be used in humid environments such as indoor gyms, pool areas and spas. Areas where you often want to eliminate disturbing sounds.

03 ACOUSTICS +
03 ACOUSTICS

9 mm of felt thickness means 9 mm of air permeable material. Together with the hollow core, Feltfon Blox is a super absorber up to class A.

Mix and match

1. Decide upon your design.
2. Choose the colours and depths of the Blox .
3. Select a colour for the background felt or choose to leave the spacings open.

Recycled material

Gustafs Acoustex© 9 mm is an air permeable material made from minimum 50% post-consumer recycled material, the important number used in certification programs for buildings.

Versatile applications

Feltfon Blox is perfect for a wide range of settings, including homes, offices, studios, restaurants, and more. Whether you’re looking to create a cozy atmosphere or a silent professional workspace, Feltfon Blox will be a perfect tool.

Enhance your workspace and improve the acoustics

Elevate the acoustic quality of your workspace by installing Feltfon Blox acoustic islands overhead. Integrating Blox of varying sizes and depths not only helps in absorbing noise but also enhances sound diffusion, contributing to a more pleasant and natural auditory environment.

Explore more products from the Feltfon range

Break away from the linear pattern and unleash your creativity

Feltfon Blox offers unique and distinctive possibilities for creating captivating and dynamic designs. Create fresh and exciting patterns or use our inspiration patterns below.

Get inspired by our patterns

B01

Symetric pattern with mixed Blox sizes in different depths.

B02

Mixed Blox sizes with the same depth.

B03

Mixed Blox sizes and depths

Turn our standards into something unique

By mixing dimensions freely, you can achieve an exciting and personal expression on your wall or ceiling. The only limit is your creativity.

Dimensions

A wide range of standard dimensions let you design without having to re-invent the wheel.

Spacing

Using the Gustafs Quick-Up Capax System: Spacings horisontal, 22 mm and verticle 27 mm.

Installation

Install capax profiles cc 300 mm.

Installation >>

STANDARD

Feltfon Blox

Model Length Width Depth
273-164-40 273 164 40
273-350-40 273 350 40
273-536-40 273 536 40
273-164-100 273 164 100
273-350-100 273 350 100
273-536-100 273 536 100
273-164-160 273 164 160
273-350-160 273 350 160
273-536-160 273 536 160
573-164-40 573 164 40
573-350-40 573 350 40
573-536-40 573 536 40
573-164-100 573 164 100
573-350-100 573 350 100
573-536-100 573 536 100
573-164-160 573 164 160
573-350-160 573 350 160
573-536-160 573 536 160
873-164-40 873 164 40
873-350-40 873 350 40
873-536-40 873 536 40
873-164-100 873 164 100
873-350-100 873 350 100
873-536-100 873 536 100
873-164-160 873 164 160
873-350-160 873 350 160
873-536-160 873 536 160
STANDARD
Depth

All models are available in 3 depths, 40, 100 and 160 mm.



Spacing

The verticle spacing is 22 mm and the horizontal spacing is 27 mm.

Acoustex Felt – Green Acoustics made from rPET

A minimum of 50% recycled PET bottles, chipped into flakes and mixed with fresh PET material, are spun into Gustafs Acoustex felt. PET is very suitable to be re-processed and Feltfon Linear is a 100% recyclable solution.



01. THE PERFECT LOOP +
01. THE PERFECT LOOP

Our Acoustex rPET felt material can be re-processed repeatedly. Feltfon Linear can be de- and re-mounted multiple times – for circular use.

02. COLOURS +
02. COLOURS

1. Anthracite, 2. Dark Grey, 3. Wool Grey, 4. Sand, 5. Wet sand, 6. Dirty Green 7. Old Clay, 8. Mocca, 9. Rose, 10. Jade, 0. White.

COLOUR PALETTES >>

03. STURDY & SOFT +
03. STURDY & SOFT

With a 9 mm thick felt with a high density of 2 kg/m², Feltfon ribs will survive on walls in all types of public spaces.

Gustafs Feltfon Blox acoustics

Due to the oversized depth and large air void, all the Jewel designs have outstanding acoustic properties when it comes to absorption and shortening reverberation times. Jewels sound beautiful.



Thanks to its expansive air chamber, Feltfon Jewel products deliver breathtaking acoustics.

Feltfon Jewel – calculated absorption class
APPLICATION
Wall No insulation, class B 45 mm insulation, class A
Ceiling No insulation, class B 200 mm air void, class A

Fire safety

Rest easy knowing that Feltfon is fire-safe without the need for impregnations, prioritizing safety without compromising style.

Reaction to fire – classifications Gustafs Feltfon
PRODUCT REACTION TO FIRE
Feltfon Acoustex B-s1,d0

With our low emission Acoustex, you can breathe out.
And everyone else can breathe in.

Free from fire-retardants, added formaldehyde or isocyanate binders, the Acoustex material in Feltfon Jewel guarantees extremely low TVOC levels.

Our Linear Feltfon complies with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 0,3 (mg/m³) 0,01 (mg/m³) ≤ 0,01 (mg/m³) 0,005 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,01 (mg/m³) < 0,06 (mg/m²h) 0,001 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,01 (mg/m²h) < 0,05 (mg/m²h) 0,002 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,01 (mg/m²h) < 0,05 (mg/m²h) 0,001 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,01 (mg/m³) ≤ 0,06 (mg/m³) 0,005 (mg/m³)



More Building Certifications >>

Green Acoustics

Sustainability is a fundamental part of our core and our target with Feltfon was to create a sustainable product that could match the good environmental credentials of all our other products. Feltfon is made from recycled PET bottles and can be re-cycled multiple times. Feltfon is produced with 100% fossil free energy.

01 RECYCLED FELT +
01 RECYCLED FELT

Certified minimum 50% post-consumer rPET, granulated and spun into new Gustafs Acoustex 9.0.

02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY

Producing in Sweden and surrounded by hydro power plants this is the main energy source for our production. The only other two are wind and solar power, adding up to a fantastic 100% renewable energy.

03 ENVIRONMENTAL DECLARATIONS +
03 ENVIRONMENTAL DECLARATIONS

Our products are environmentally declared and have all documentation in place to comply with leading building assessments like BREEAM and LEED.

Installation

Feltfon Blox is installed with the same capax system as Feltfon Linear and Feltfon Vector, which makes it easy to mix different models and create your own designs. The Capax Quick-Up installation system is available for both walls and ceilings. The Capax installation system for Feltfon Blox guarantees reliability and a perfect visual result.

Easy to install

Feltfon Blox is installed with Capax. Capax is our unique aluminium profile installation system that delivers a concealed, reliable, quick, and cost saving installation. The Quick-Up system is user-friendly and available for walls and ceilings. No tools are needed to assemble the interlocking components. Both the wall and ceiling system are demountable, ideal when access to the ancillary systems is required.

INSTALLATION

Easy to install

Capax is our unique aluminium profile installation system that delivers a concealed, reliable, quick, and cost saving installation. The Quick-Up system is user-friendly and available for walls and ceilings. No tools are needed to assemble the interlocking components. Both the wall and ceiling system are demountable, ideal when access to the ancillary systems is required.

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Feltfon Acoustex 9,0

Fire
+

Reaction to Fire: B-s1,d0

Acoustics
+

Configurations possible to achieve absorption class A, C or D. NRC: 0,60, 0,80, 0,95.

Environmental performance certification program for buildings
+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions
+

Class E1 and M1. Approved for BREEAM International / LEED v4.1 / Svanen / Byggvarubedömningen / Sunda Hus / Blue Angel / AgBB / Belgian VOC / French VOC.

Declaration of Performance
+

Yes

FSC®
+

The wooden In-fill strips is available with FSC® (Forest Stewardship Council®) certified wood.
Gustafs FSC® certificate code is: SAI-COC-010919

READ MORE KNOWLEDGE HUB FSC® >>

And more
+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Recycled content>50% Post Consumer
