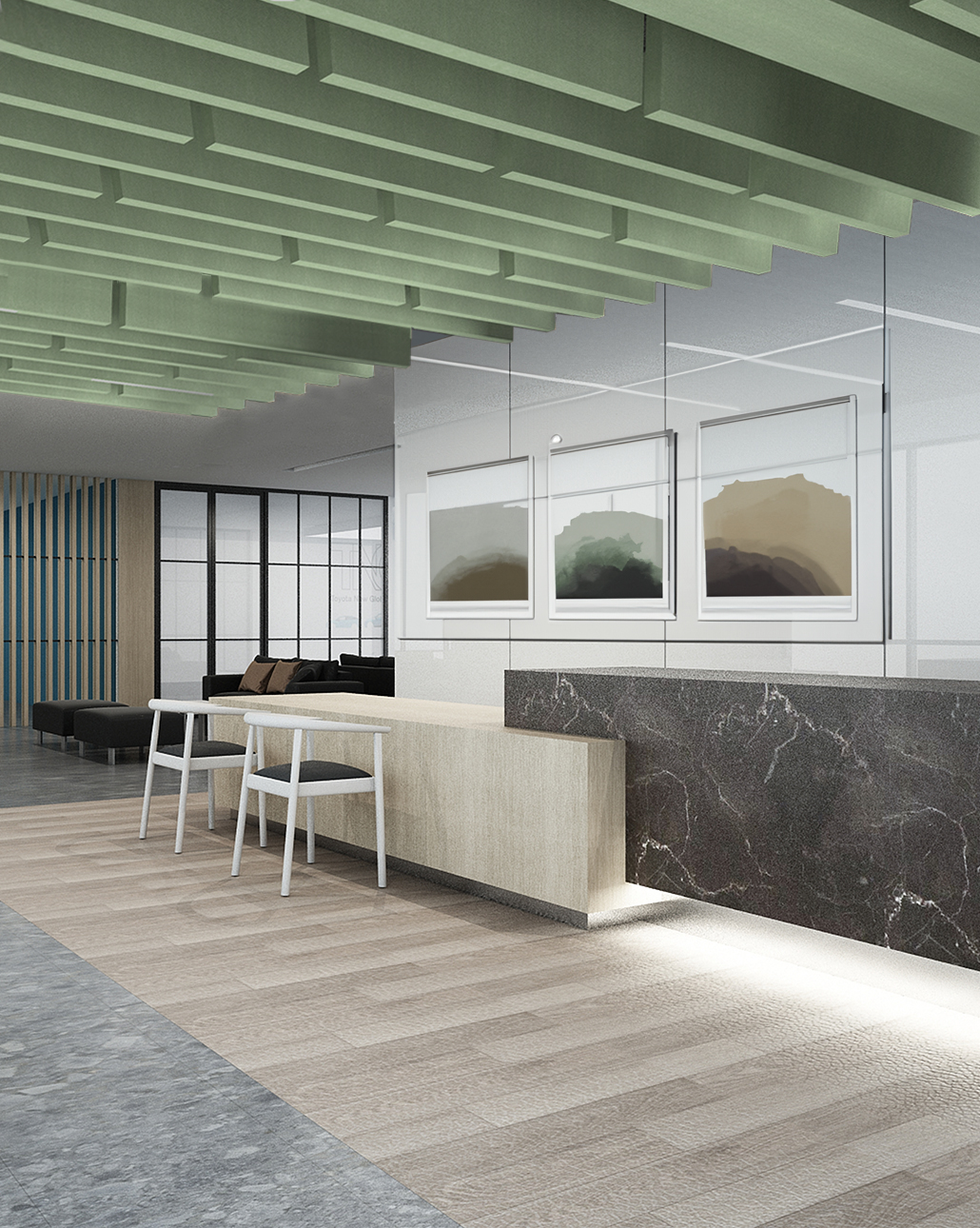

Acoustic baffles office suspendes ceiling
Acoustic baffles office suspendes ceiling

Feltfon Baffles

OVERSIZED LINEAR BEAMS for superb sound absorbing

Feltfon© Acoustic Baffles enables the incorporation of large design elements in significant dimensions, maintaining a lightweight and cost-effective solution. The utilization of absorbent felt material and the presence of a hollow core in Feltfon© Baffles contribute to excellent sound absorption. The Capax Quick-Up installation system is available for walls and ceilings, perfect for use in public spaces like schools, offices, shops, and malls. Approved for use in wet rooms. The installation system grips multiple baffle widths and is fully demountable. Create a unique appearance by varying and combining different widths, depths, felt colours, or the width of the spacings. Of course, Feltfon© Baffles are fire-safe – in the Gustafs way, without the need for impregnations. Made from a minimum of 50% post-consumer recycled content. The Feltfon acoustic ceiling baffles help reduce sound waves and sound-proofing the room.

TYPE / SOLUTION

Feltfon Linear

APPLICATION

Ceilings, Wall, Wet rooms

Fire Class

B-s1,d0

Acoustic class

A, B, C, D

CONTACT
MENU /
CLOSE
Acoustics

Since sound is simply waves of moving air, you can use Feltfon acoustic baffles to reduce reverberations from sounds. The larger the baffles, the better they will sound.

Design

Create your own mix. Customized Feltfon Baffles are available in many natural shades, widths and depths. Choose open or closed ends.

Dimensions >>

Reaction to fire

Gustafs Linear Feltfon Baffles are made for public spaces. The individual parts and the final installation have B-s1,d0 – which means little or no contribution to fire.

01 DESIGN +
01 DESIGN

Many parameters can be adjusted individually. The baffles are available in multiple depths and widths.
Depths: 100 mm – 500 mm
Widths: 40 mm – 133 mm

Dimensions can also be customized.

02 ENDS +
02 ENDS

Use open or closed ends on the baffles.

03 SEAMLESS JOINTS +
03 SEAMLESS JOINTS

The baffles are easy to join end to end without any visible seams. Or to install baffle by baffle with a visible end gap.

Recycled & Upcycled

Feltfon is made from recycled PET bottles and can be recycled multiple times. Feltfon is produced with 100% fossil-free energy.

Wet rooms

Feltfon can be used in humid environments such as indoor gyms, pool areas and spas. These are areas where you want to eliminate disturbing sounds.

Installation

Easy to install with Gustafs Capax BASE-CF battens installed cc 600 mm perpendicular to the ribs.

Inspiration

Explore more products from the Gustafs Feltfon range

FELTFON LINEAR RIB

FELTFON BLOX

FELTFON DIABOLO

FELTFON ADDSTYLE



Acoustic Ceiling Baffles – how do they work?

Reducing sound waves
+

Sound Baffles are acoustic panels that are suspended vertically from the ceiling or, if you like, installed on the wall.
Acoustic Baffles can be very effective, reducing sound waves, in open-plan spaces such as offices, schools, and entrances, where they can help prevent propagation of sound over longer distances. In addition, their sound-absorbing properties can help to reduce reverberation and overall sound levels, creating a more comfortable environment.



Why use Sound Baffles?

... and why are they so effective?
+

Acoustic baffle beams helps reduce sound in large spaces with high ceilings. Ceiling Baffles provide a larger absorptive surface area, is very easy to install, and is available in many depths and dimensions. In many public spaces it is common to encounter a ceiling made of steel decking or concrete – materials that are highly reflective and don’t absorb sound well. As sound travels towards the ceilings, it will encounter these highly reflective surfaces which only absorb a very small amount of sound energy. The sound wave will continue travelling within the room. Acoustic ceiling baffles are particularly effective for sound proofing a room as they can absorb both the direct sound from a sound source, and the reflections from ceilings and higher sections of the walls.

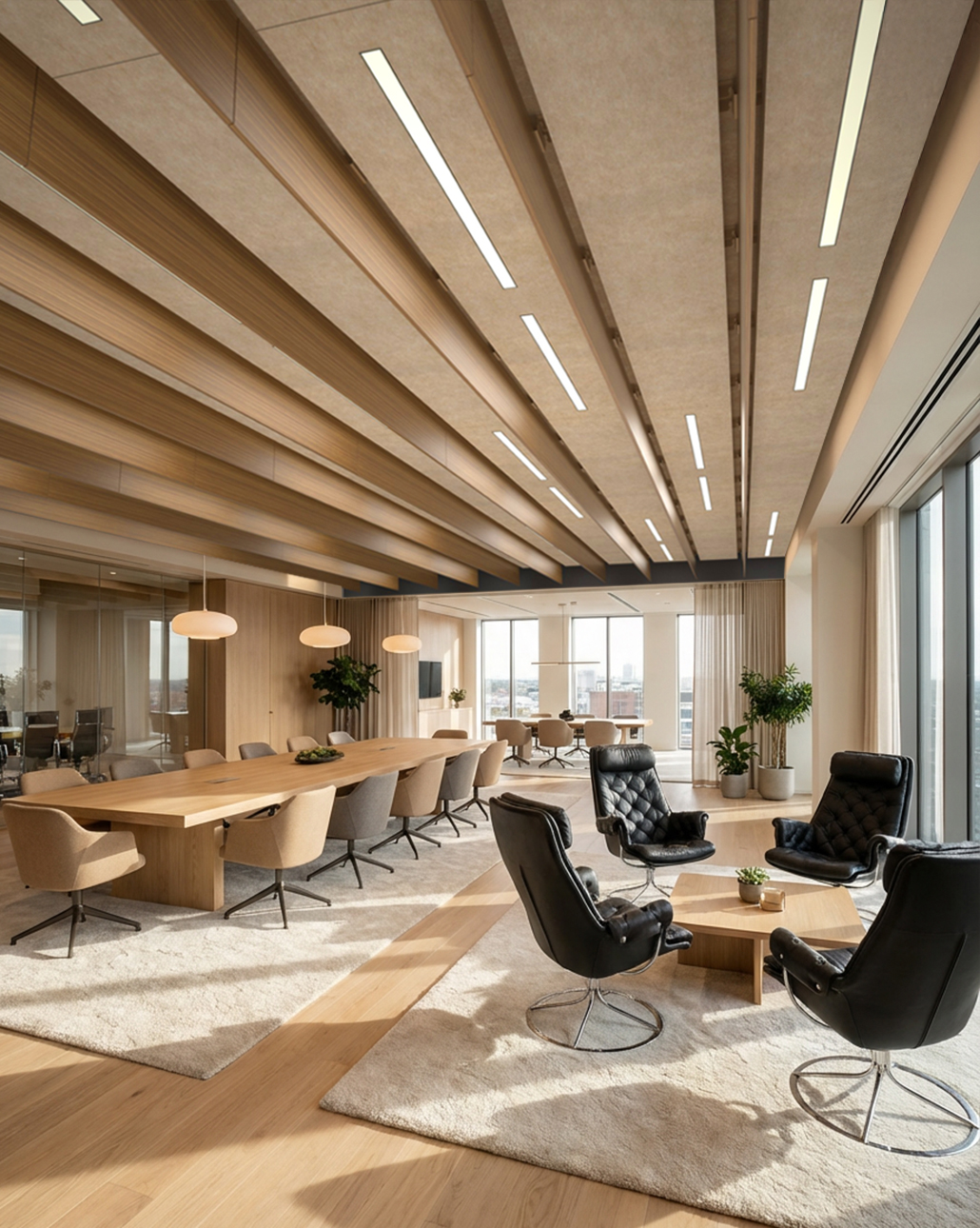

Mix dimensions freely

By mixing dimensions freely, you can achieve an exciting and personal expression on your wall or ceiling. The only limit is your creativity.

Dimensions

A wide range of standard dimensions let you design your acoustic ceiling freely.

Spacing

Spacings using the Gustafs Quick-Up Capax System: 22 mm, 53 mm, 84 mm, 115 mm, 146 mm, 177 mm, 208 mm, etc.

Easy to join with no visible seams

The baffles are easy to join end to end without visible connections or install baffle by baffle with gaps.

STANDARD DIMENSIONS

Feltfon Baffles

Baffle Width 40 mm
MODEL DEPTH LENGTH LENGTH LENGTH
mm 2 OPEN ENDS 1 END CLOSED 2 ENDS CLOSED
100-40 100 2400 – –
130-40 130 2400 – –
180-40 180 2400 – –
280-40 280 2400 – –
400-40 400 2400 – –
580-40 580 2400 – –
Baffle Width 71 mm
MODEL DEPTH LENGTH LENGTH LENGTH
mm 2 OPEN ENDS 1 END CLOSED 2 ENDS CLOSED
160-71 160 2400 2370 2340
260-71 260 2400 2370 2340
Baffle Width 102 mm
MODEL DEPTH LENGTH LENGTH LENGTH
mm 2 OPEN ENDS 1 END CLOSED 2 ENDS CLOSED
140-102 140 2400 2370 2340
240-102 240 2400 2370 2340
400-102 400 2400 2370 2340
500-102 500 2400 2370 2340
Baffle Width 133 mm
MODEL DEPTH LENGTH LENGTH LENGTH
mm 2 OPEN ENDS 1 END CLOSED 2 ENDS CLOSED
160-133 160 2400 2370 2340
400-133 400 2400 2370 2340
500-133 500 2400 2370 2340
INSTALLATION EXAMPLE +
INSTALLATION EXAMPLE

Baffles with closed ends installed with a visual gap and a 208 mm wide spacing.

Felt colour: Wet Sand.

Feltfon Acoustic Felt – Green Acoustics made from rPET

Gustafs Acoustex is a next generation textile crafted from a minimum of 50% recycled PET bottles. The bottles are chipped into flakes and combined with fresh PET material. This innovative process ensures optimal reprocessing of PET, making it an environmentally-friendly choice. Furthermore, Feltfon is a 100% recyclable solution, emphasizing its commitment to sustainability.

KNOWLEDGE HUB / COLOUR PALETTES

01 THE PERFECT LOOP +
01 THE PERFECT LOOP

Our Acoustex rPET felt material can be re-processed repeatedly. Feltfon Baffles can be de- and re-mounted multiple times – for circular use.

02 COLOURS +
02 COLOURS

1. Anthracite, 2. Dark Grey, 3. Wool Grey, 4. Sand, 5. Wet sand, 6. Dirty Green 7. Old Clay, 8. Mocca, 9. Rose, 10. Jade, 0. White.

COLOUR PALETTES >>

03 STURDY & SOFT +
03 STURDY & SOFT

With a 9 mm thick felt with a high density of 2 kg/m², Feltfon Baffles will survive in ceilings in all types of public spaces.

Gustafs Feltfon Baffles acoustics

Design something new with acoustic absorption coefficients up to the highest possible class A. A sound investment for the right kind of echo.

KNOWLEDGE HUB / ACOUSTICS

Acoustic absorption Feltfon Baffles, 40 x 40 mm, total depth 50 mm
APPLICATION SPACING INSULATION αw / NCR
Wall 22 mm Acoustex 9 mm 0,55-D/ 0,80
Acoustic absorption Feltfon Baffles, 40 x 40 mm, total depth 95 mm
APPLICATION SPACING INSULATION αw / NCR
Wall 22 mm Acoustex 9 mm + 45 mm mineral wool 0,95-A/ 0,95
Acoustic absorption Feltfon Baffles, 40 x 40 mm, total depth 250 mm
APPLICATION SPACING INSULATION αw / NCR
Ceiling 22 mm Acoustex 9 mm + air void 201 mm 1,00-A / 0,95
Ceiling 22 mm air void 211 mm 0,60-C / 0,65

Fire safety

Rest easy knowing that Feltfon is fire-safe without the need for impregnations, prioritizing safety without compromising style. Gustafs Linear Feltfon Baffles are made for public spaces. The individual parts and the final installation has B-s1,d0 – which means little or no contribution to fire.

Reaction to fire – classifications Gustafs Feltfon
PRODUCT REACTION TO FIRE
Feltfon Acoustex B-s1,d0
A SAFE CHOICE +
A SAFE CHOICE

Gustafs Feltfon System is specifically designed for public spaces, prioritizing safety and peace of mind. With its fire classification, B-s1,d0, this system makes little to no contribution to fire, ensuring a secure environment for all.

With our low emission Acoustex, you can breathe out.
And everyone else can breathe in.

Free from fire-retardants, added formaldehyde or isocyanate binders, the Acoustex material in Feltfon guarantees extremely low TVOC levels.

KNOWLEDGE HUB / EMISSIONS

Our Feltfon complies with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 0,3 (mg/m³) 0,01 (mg/m³) ≤ 0,01 (mg/m³) 0,005 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,01 (mg/m³) < 0,06 (mg/m²h) 0,001 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,01 (mg/m²h) < 0,05 (mg/m²h) 0,002 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,01 (mg/m²h) < 0,05 (mg/m²h) 0,001 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,01 (mg/m³) ≤ 0,06 (mg/m³) 0,005 (mg/m³)



More Building Certifications >>

Green Acoustics

Sustainability is a fundamental part of our core and our target with Feltfon was to create a sustainable product that could match the good environmental credentials of all our other products. Feltfon is made from recycled PET bottles and can be recycled multiple times. Feltfon is produced with 100% fossil free energy.

KNOWLEDGE HUB / SUSTAINABILITY

READ MORE ON GREEN GUSTAFS

01 UPCYCLED PET +
01 UPCYCLED PET

Certified minimum 50% post-consumer rPET, granulated and spun into new Gustafs Acoustex 9.0.

02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY

Producing in Sweden and surrounded by hydro power plants this is the main energy source for our production. The only other two are wind and solar power, adding up to a fantastic 100% renewable energy.

03 ENVIRONMENTAL DECLARATIONS +
03 ENVIRONMENTAL DECLARATIONS

Our products are environmentally declared and have all documentation in place to comply with leading building assessments like BREEAM and LEED.

Details that make the difference

Linear Accessories are unique details to be combined with your wall or ceiling system. Our linear accessories complete your vision and simplify complicated solutions.

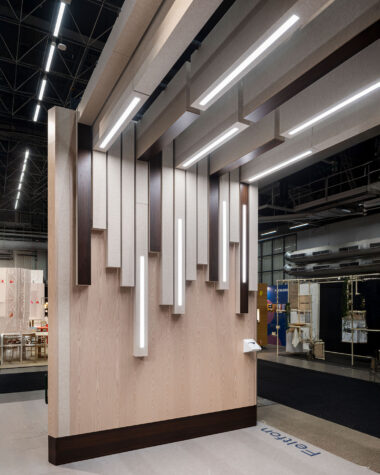

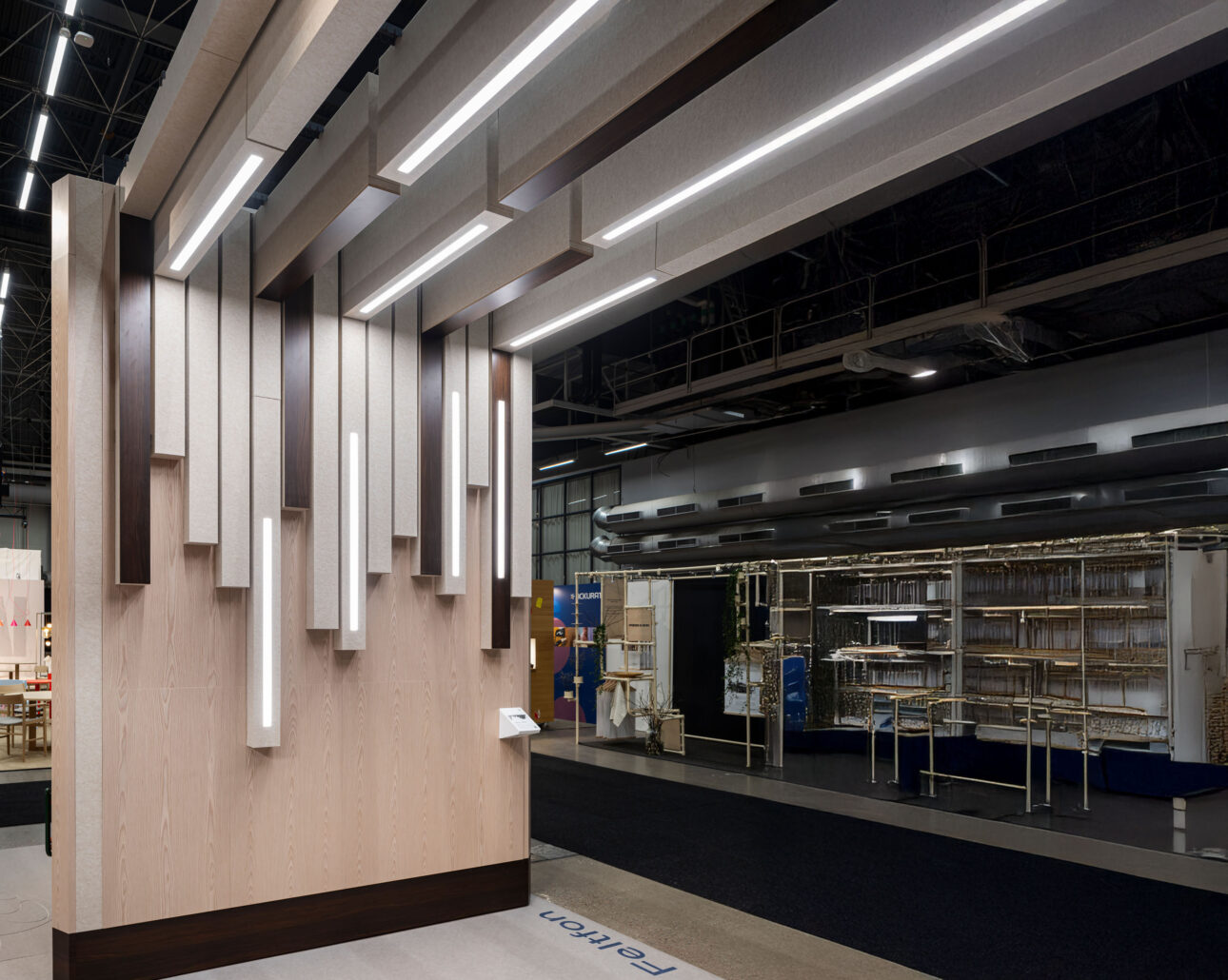

F-Line – linear lighting for Feltfon Linear

Integral linear lighting solution for Gustafs Feltfon© Linear Ceiling System. The lamp housing snaps to the same carrier profile as the Feltfon© ribs. F-Line uses a modern micro prismatic dimming in combination with high-quality LED light sources.

F-Line Spot – spot lighting for Feltfon Linear

Integral spot lighting solution for Gustafs Feltfon© Linear Ceiling System. The lamp track snaps to the same carrier profile as the ribs. Comes with a modern micro prismatic dimming and high-quality LED light sources.

Insulation – Acoustex 9,0 – Sturdy acoustic felt for multiple use

Extremely form stable acoustic backing in a wide range of colours and with fire class B-s1,d0. Can be used as an individual sound absorber or integral as the acoustic insulation layer behind Gustafs Feltfon Linear system for walls or ceilings. Supplied in sheets in various formats. Contains minimum 50% recycled PET bottles and is approved by all international standards regarding indoor climate emissions. Thickness 9,0 mm.

Wooden in-fill strips for Feltfon Linear

Combine the wool look of Feltfon© with beautiful wooden in-fill strips. Available in the following dimensions (depth x width x length): 13 x 23 x 2400, 13 x 54 x 2400 and 13 x 85 x 2400 mm. The wooden in-fill strip leaves 10 mm of visible rib depth in combination with a 40 mm deep Feltfon© rib, 30 mm visible depth in combination with a 60 mm deep rib, etc. Choose from our palette of veneers.

Covers

Varying types of covers and windowsills are needed in almost any interior fitting project. Gustafs will perfectly match the correct specifications and needs for your project, as well as the surface and finish.

Plinths

Plinths are the definite finish of a rib installation, not only regarding a nice design but also concerning the protecting function, for example against wet floor cleaning. Contact us and we will fulfil the specifications of your project.

Installation

Feltfon Baffles, Feltfon Linear, Feltfon Vector and Feltfon Blox are all installed with the same Capax system which makes it easy to mix different models and create unique designs. The Capax Quick-Up installation system is available for both walls and ceilings and guarantees reliability and a perfect visual result.

Due to the U-shape of the installation profile BASE WF, it can hold two baffle ends in-line and act as a length connector for seamless joints.

Easy to install

Capax is our unique aluminum profile installation system that delivers a concealed, reliable, quick, and cost-saving installation. The Quick-Up system is user-friendly and available for walls and ceilings. No tools are needed to assemble the interlocking components. Both the wall and ceiling systems are demountable, ideal when access to the ancillary systems is required.

WALL INSTALLATION FELTFON

CEILING INSTALLATION FELTFON

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Feltfon Acoustex 9,0

Fire
+

Reaction to Fire: B-s1,d0

Acoustics
+

Configurations possible to achieve absorption class A, C or D. NRC: 0,60, 0,80, 0,95.

Environmental performance certification program for buildings
+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions
+

Class E1 and M1. Approved for BREEAM International / LEED v4.1 / Svanen / Byggvarubedömningen / Sunda Hus / Blue Angel / AgBB / Belgian VOC / French VOC.

Declaration of Performance
+

Yes

FSC®
+

The wooden in-fill strips are available with FSC® (Forest Stewardship Council®) certified wood.
Gustafs FSC® certificate code is: SAI-COC-010919

READ MORE KNOWLEDGE HUB FSC® >>

And more
+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time: > 50 years
Recycled content: > 50% Post Consumer
