Ribs up to 74 mm deep

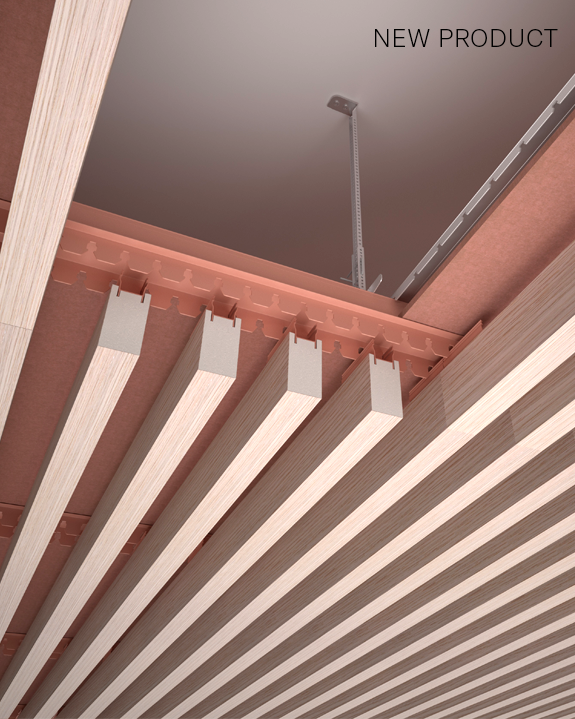

Design expressive, high-performance ceilings with a bold linear grill structure that combines visual depth and excellent acoustic properties. The Capax installation system for Linear Rib HD provides a robust support for Gustafs Linear Ribs with depths of up to 74 mm. This demountable and user-friendly aluminium grid provides flexible spacing configurations. Linear Rib HD is fully compatible with the Capax Mix system.

APPLICATION

Ceilings

TYPE / SOLUTION

Linear Mix System

INSTALLATION

CAPAX MIX

CONTACT
MENU /
CLOSE

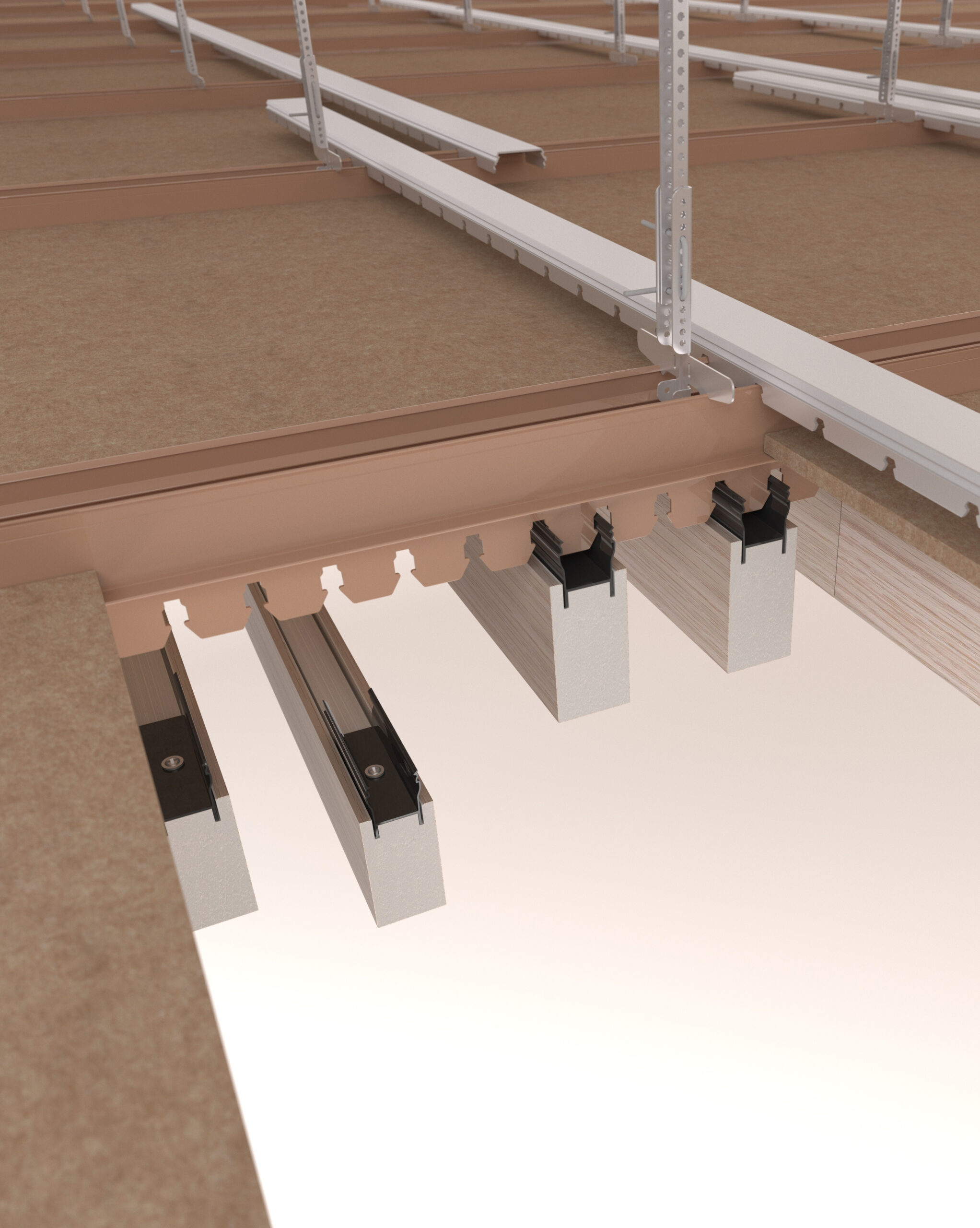

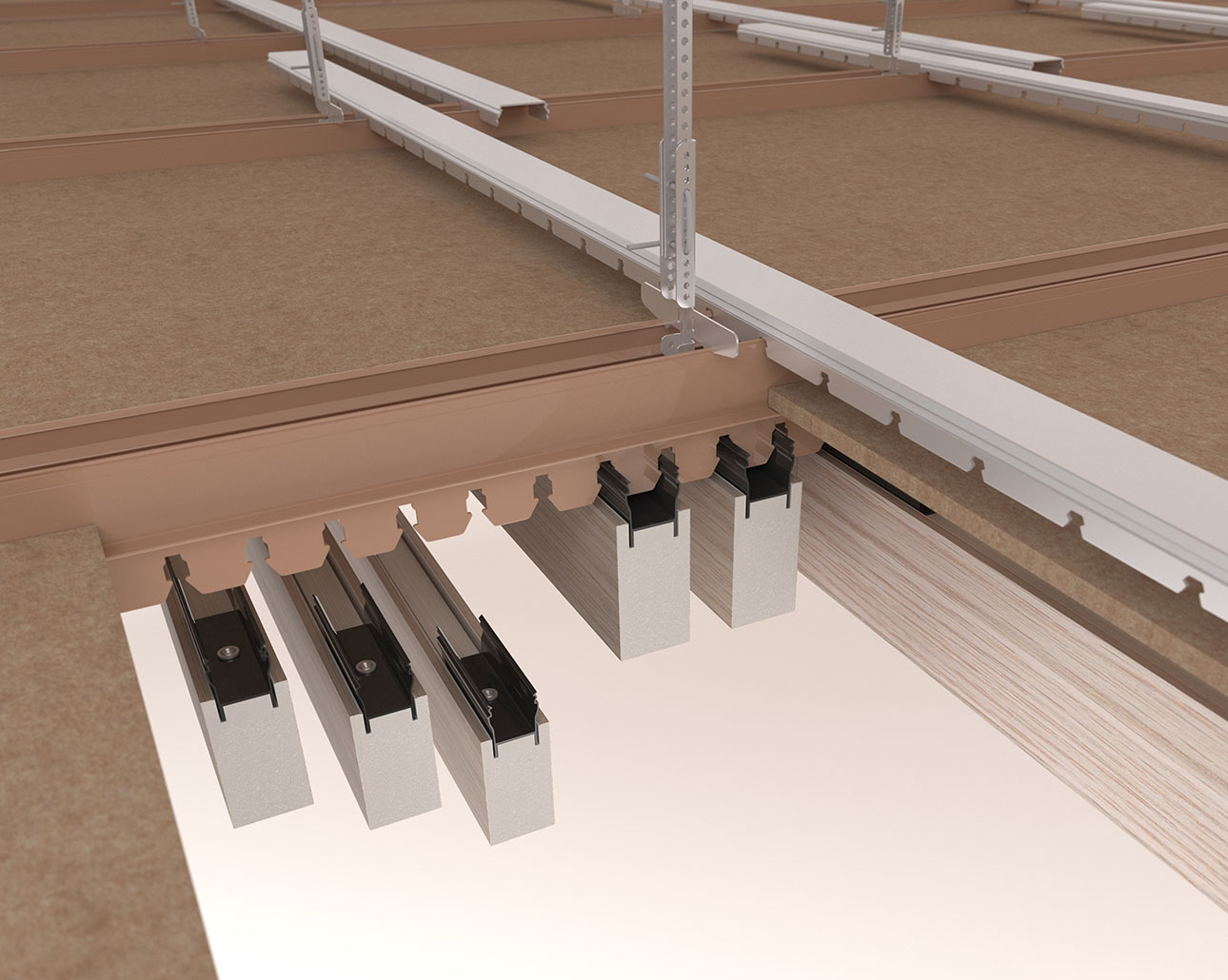

TOP VIEW +

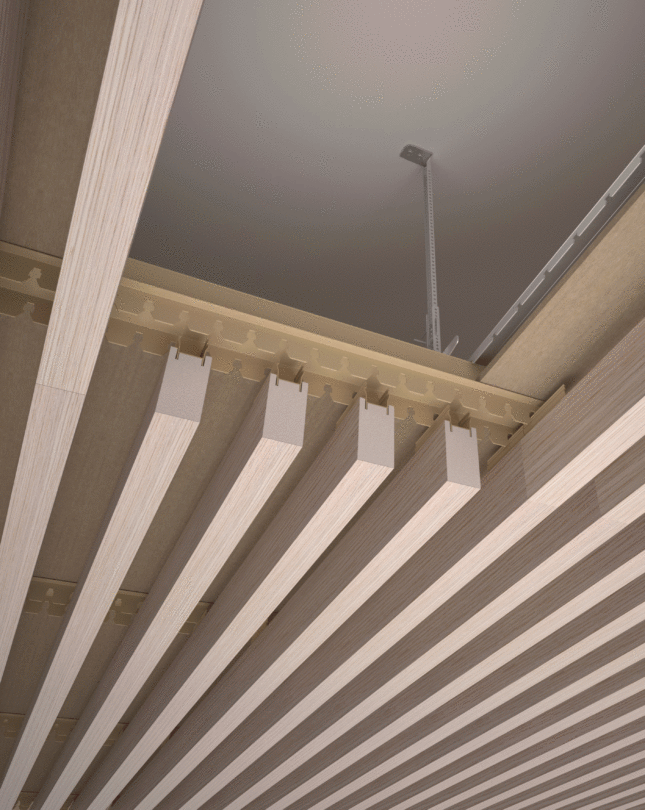

TOP VIEW

Gustafs Capax is rigid, corrosion-resistant, and optionally features an easy-to-install, demountable acoustic backing in various colours.

LIGHT +
LIGHT

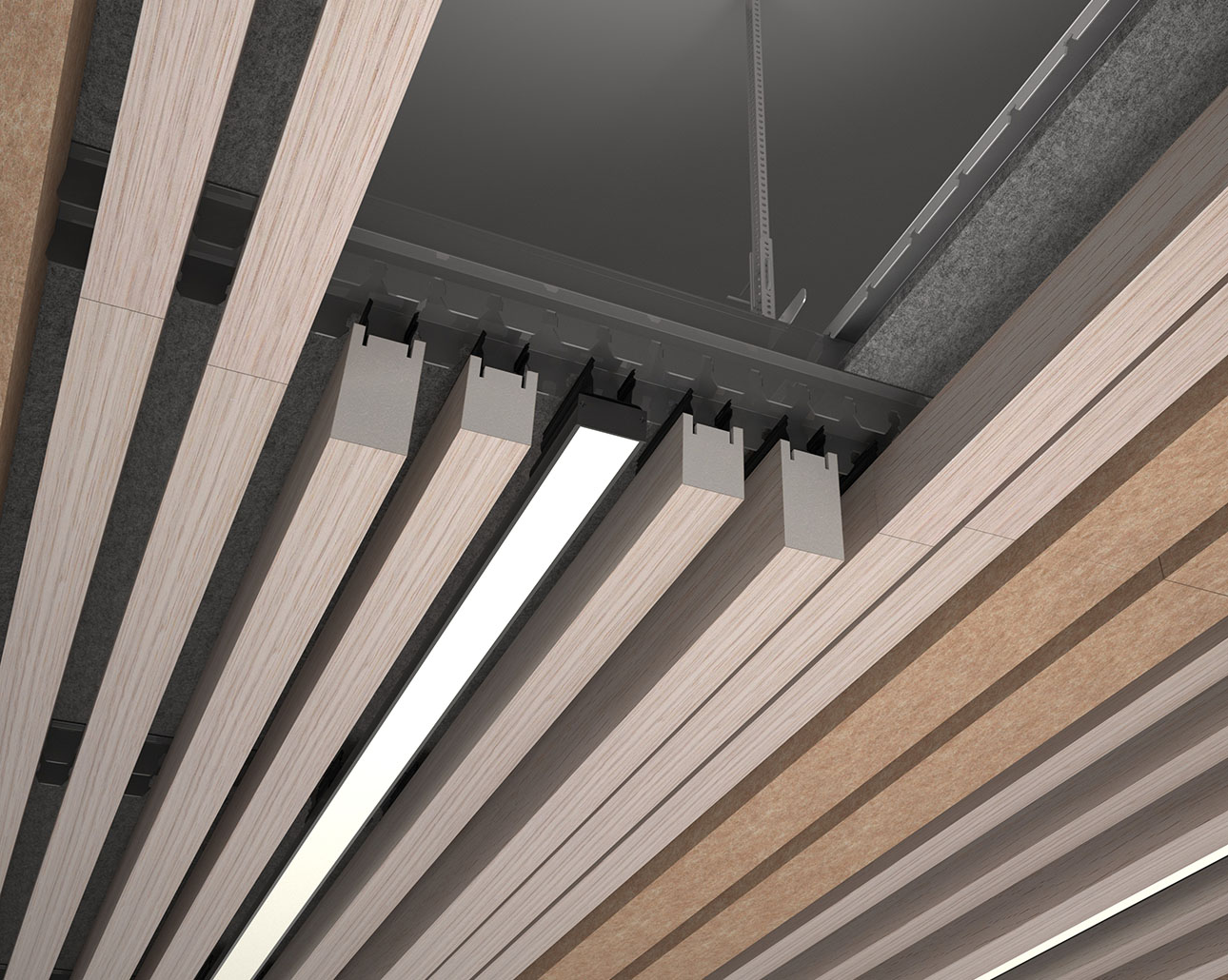

Capax Mix lets you combine various ribs and integrated lighting in one seamless click-in system – effortless to install, endlessly versatile.

F-Line C >>

JOINTS +
JOINTS

The ends of two ribs can be fixed on the same BASE-CF profile and in the same fixation hole. The rib-ends will be fully fixated for perfect looking and over time lasting connections, still completely demountable.

CAPAX MIX

Seamless Integration of Multiple Ceiling Models

With Capax Mix, you can combine multiple ceiling models within a single installation system – including Gustafs Linear RIB, Linear Feltfon, Blayde and integrated Linear LED lighting. This versatility opens entirely new creative possibilities, allowing you to design custom, one-of-a-kind expressions with seamless fit and perfect visual alignment.



Combination possibilities

Linear Rib S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-S product page >>

Installation Rib Ceiling >>
Installation Rib Narrow >>
Installation Rib HD >>

Linear Rib R

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-R product page >>

Installation Rib Ceiling >>
Installation Rib Narrow >>
Installation Rib HD >>

Rib-E

To Rib-E Installation Page >>

Feltfon range

Linear products + blox

See all Feltfon products >>

Feltfon ceiling installation page >>

Blayde

To product page >>

To Installation page >>

F-Line R light

To Installation page F-line R >>

F-Line C light

To Installation page F-Line C >>

Dimensions Rib-HD

Dimensions Ceiling Rib-HD

542550-38

THICKNESS LENGHT WIDTH
54 2400 38
64 2400 38
64 2550 38
74 2400 38
74 2550 38

For other ceiling rib dimensions see >>

ACOUSTEX 9

Acoustex 9

Acoustex 9 mm acoustic insulation comes in a wide range of colours, perfectly matched to our Feltfon and wood felt products – ensuring both visual harmony and acoustic performance.

APPLICATION: Wall, ceilings, wet rooms
FIRE CLASS: B-s1,d0
MATERIAL: 9 mm rPET felt



ACOUSTEX 15

Acoustex 15

Acoustex 15 mm acoustic insulation is available in many colours

DIMENSIONS (mm): 1194 x 594, 594 x 594

Colour Colour code LRV
Jet Black NCS S 8500-N 3
Rock Grey NCS S 7502-B 8
Smoke Grey NCS S 2000-N 58
Linen NCS S 1005-R80B 75
Desert Tan NCS S 4005-Y50R 30
Cream Latte NCS S 2005-Y40R 54
Mouse Grey NCS S 4000-N 33
Pale Denim NCS S 3020-B 35
Ivory NCS S 1510-Y60R 57
Moss NCS S 3010-G10Y 32
Damask NCS S 3040-Y90R 20
Buff NCS S 1505-Y30R 68
Khaki NCS S 2020-Y20R 31
Amber NCS S 2050-Y10R 53

Before you start the installation

Plan

Select Ribs on colour shade and plan your ceiling installation, we recommend mixing varying shades randomly.
Deside on the installation spacing. See Approved CC dimensions >>

Room temperature

The room temperature should be between 18-50 C°.

Humidity

The air humidity should be between 25-60%. The humidity in the under laying construction (concrete) should not be higher than 15%.



Step by step guide

STEP 1

1. Suspend the Nonius ceiling hangers from the ceiling. Plan the positioning of the Nonius according to steps 3 and 4. ↓

STEP 2

2. Use the adapter NONIUS-CD to connect the BASE-CF profile to the ceiling hangers.

Nonius-CD adapter for ceiling installations

STEP 3

3. Suspend the BASE-CF profiles with a repeated interval of 600 mm, measured from the centrums of the profiles (cc).

A = 600 mm

Suspended Base-CF

STEP 4

4. Measured along the length of the BASE-CF, the connection to the ceiling must be made every 600 mm .

B = 600 mm

STEP 5

5. Level the height using a laser and secure the hanger with the Nonius-CD with the locking pin.

STEP 6

6. Secure the position of the NONIUS-CD by bending the 2 wings and the long leg of the locking pin.

STEP 7

7. When needed, connect the BASE-CF in-line with profile 3263 and assure the cc distance between the fixation points remains constant. Increase the friction between the engaging components by slightly twisting one corner inwards, on each BASE-CF.

Base-CF in-line connection using Capax profile 3263

STEP 7b

7b. The ribs can be installed with spacing of 24 mm, 86 mm, or 148 mm. The spacing can be increased in increments of 62 mm.



STEP 8

8. Snap the distance profile 3262 perpendicular to the BASE-CF every 1200 mm.

STEP 9

9. Two distance profiles Capax 3262 will partially run parallel, where mounted on the same BASE-CF.

STEP 10

10. Install Acoustex-15 insulation or Acoustex-9 felt onto the ”T” section of the BASE-CF.

STEP 11

11. Attach U-FIX-CF-80 to the concealed track of the Linear Rib with specific screws supplied by Gustafs.

STEP 12

12. Use 5 pcs of U-FIX-CF-80 per 2400 mm length with a maximum cc interval of 600 mm.

A = 600 ± 10 mm

STEP 13

13. Attach the Linear Ribs to the BASE-CF carrier, starting in position A.

You must hear 3 ”clicks” to finalize the attachment.

STEP 13.b

13 b. The spacing has a minimum of 55 mm and can be increased in increments of 31 mm.

Approved spacings Rib-HD Width 38 mm, depth 67 mm and 74 mm

55, 86, 117, 148 …. mm

STEP 14

14. The in-line connection of 2 ribs should be secured by a BASE-CF profile.

STEP 15

15. The end of a rib must not protrude unsupported more than max 200 mm.

Optionally, ad Acoustex-9, in the colour of choice, inside the BASE-CF.

CEILING

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
F. Rib-HD
G. U-FIX-CF-80
H. 3263 Connector
I. Acoustex 9 mm

1. Linear Rib-R HD,   Depth: 54 mm, Width: 38 mm
2. Linear Rib-R HD,   Depth: 64 mm, Width: 38 mm
3. Linear Rib-R HD,   Depth: 74 mm, Width: 38 mm

Components

Base-CF


Base profile lenght: 3000 mm.

Nonius-CD

nonius-cd hanger for gustafs feltfon
Nonius-CD connecting Base-CD with Nonius hanger.

U-Fix FG 80

Components

Capax 3265 Connector


Connector for to Base-CF lenght: 300 mm.

Capax profile 3262

capax 3265 distance profile
Distance profile 3262

Nonius Lock

lock Nonius hanger with Nonius-CD

GUSTAFS LIGHTING

Linear LED lighting F-Line-C

Gustafs F-LINE C light fixtures are designed in harmony with our Gustafs Linear Rib System.
Gustafs F-Line- C is an integrated linear lighting designed to be fully compatible with our Capax MIX installation system for Gustafs Linear Rib. This means that the installation of linear LED lighting is as reliable and quick to mount.



Wood

Wood is a natural product and each veneer is unique. Colour, pattern and structural differences are considered as normal and a part of the décor. Select panels and ribs on colour shade and plan your wall or ceiling installation, we recommend mixing varying shades randomly. Wood changes over time when exposed to UV-light.

Conditions for Storage, Installation and Use

Only for indoor use and not in wet rooms. Storage, Installation and Use at 18-50 C° and 25-60% air humidity. The humidity in the under laying construc-tion (concrete) should not be higher than 15%. Gustafs solutions are sensitive to humidity and water, therefore they should always be stored dry and in-door.

Storage & Transportation

– Do not transport unsecured panels.
– Do not stack pallets.
– Keep the packaging closed during storage.
– Lift panels flat, vertically and one at the time.
– Avoid exposure to strong and direct sunlight.

Cleaning

Cleanings is done by dry mop or vacuum. Use synthetic cleaning fluid without ammonia for greasy stains, fruit, wine and coffee. Blood is removed with cold water.
