LINEAR PANELS WITH SOLID WOOD SLATS, FREE SUSPENDED CEILINGS

Gustafs Module System lets you create spaces with stunning wood slatted ceilings. Utilizing real solid wood or veneered plywood ribs, many parameters can be adjusted individually. You can vary the wood specie, the surface finish pigmentation, the dimensions, landscape or portrait slats, the spacings, and the colour of the acoustic backing. Gustafs Module-FS panels can also be used in curved installations. The free suspended installation is concealed and demountable and very suitable to create “clouds”.

TYPE / SOLUTION

Linear Panels

APPLICATION

Ceilings

Fire Class

B-s1,d0

CONTACT
MENU /
CLOSE
Material

Modules with ribs made of solid wood, veneer wrapped MDF or plywood. The Modules are fully assembled and ready to use, including our Acoustex felt.



Design your Module freely

Design your Module freely according to your personal preferences but please note that solid wooden ribs with standard dimensions will result in the most cost effective solutions with the shortest possible lead times.

Installation

The Module system provides quick, user friendly and con­cealed overlapping installations.

01 LANDSCAPE AND PORTRAIT +
01 LANDSCAPE AND PORTRAIT

All Gustafs Modules are available with landscape or portrait rib designs.

02 RIB MATERIALS +
02 RIB MATERIALS

Different materials provide different qualities. You can choose between solid wood ribs, veneer wrapped ribs, and plywood ribs depending on the design features you would like to achieve.

03 CURVED INSTALLATION +
03 CURVED INSTALLATION

Finally, it has to be installed too. We are constantly looking for smarter solutions, our curved Module Ceiling installations are a good example.

Other Gustafs Module products

Module Ceiling T-24

Ceiling module for suspended installation.

MODULE CEILING T24

Module Wall

Gustafs modules

MODULE WALL

Modules with solid wood ribs

Design smart and stick to oak, ash, birch and pine ribs in the most common standard dimensions to keep lead times, waste and costs down.

Wood

Available in Elm / Ash / Birch / Beech / American Oak / European Oak / Red Oak/ Mahogany /Pine / Walnut / Others on request.

Surface finish

Change the look of natural wood by using pigmentated lacquers or give it an oiled look by using a super matt finish.

Printed ribs

By printing graphics on the top of the ribs you can create some unique.

01 SOLID WOOD +
01 SOLID WOOD

An exclusive, renewable, and beautiful material with a high level of natural variation and charm.

02 SURFACE FINISH +
02 SURFACE FINISH

Our lacquer is a multi-layer UV-cured process available in a range of gloss finishes. Pigmented lacquers are another option.

Please note that colours will give different impressions depending on the type of timber they are applied to.

03 PRINTED PANELS +
03 PRINTED PANELS

Gustafs Prints give you a truly freedom in design, you can have your print directly on the ribs surface. Design module by module or spread your graphics over several modules.

A smart choice

Wrapped ribs can be a sustainably and cost saving choice compared to solid wood, especially when it comes to more exclusive or prohibited wood species. Wrapped ribs with a MDF core are form stable and provide good looking in-line joints.

01 VENEERS +
01 VENEERS

We have an extensive palette of wrapping veneers – see Gustafs veneer collection.



02 FOILS +
02 FOILS

Finish foils are printed special papers enabling surfaces with different degrees of gloss and a variety of decors and wood imitations. Foils can be a cost saving alternative to Nature and Gemini veneers.

03 PAINTED +
03 PAINTED

After having been wrapped with a white foil, the ribs can be painted in an endless number of colours. You can use any solid colour from the RAL and NCS systems.

Sturdy and straight

Landscape plywood ribs are veneered on one side and portrait ribs have veneer on two sides. The visible plywood edges are a good-looking design feature in combination with various veneers. Plywood is a construction material and allows you to create larger shaped Modules, with baffle like dimensions. The plywood ribs are form stable and precise in their dimensions, resulting in prefect in-line joints.

01 VENEERS +
01 VENEERS

We have an extensive palette of veneers – see Gustafs veneer collection.

02 LARGE FORMATS +
02 LARGE FORMATS

Plywood is a construction material and allows you to create with baffle like dimensions.

03 PLYWOOD EDGES +
03 PLYWOOD EDGES

The open Plywood edges are a popular design feature with a modern Scandinavian look.

Design your Module freely

Design your Module freely according to your personal preferences but please note that the standard rib dimensions will result in the most cost effective solutions with the shortest possible lead times.

MODULE DIMENSIONS        RIB DIMENSIONS         IN-LINE SPACING

DIMENSIONS

Module ceiling solid wood

Standard dimensions for the Gustafs Linear Module ceiling.

L: 1200 mm or 1800 mm, can be customized to shorter lenghts.
*S: The spacing of the ribs is set according to the width of the ribs and will vary according to your design.

EXAMPLE LANDSCAPE MODULE :

A: 625 mm
B: 575 mm
C: 45 mm
D: 20 mm
*S: 15 mm

EXAMPLE PORTRAIT MODULE:
A: 640 mm
B: 560 mm
C: 20 mm
D: 45 mm
*S: 30 mm

MODULE WITH FREE PATTERN
SPACING: The spacing of the ribs is set according to the width of the ribs and will vary according to your design.

RIB DIMENSIONS SOLID WOOD

Standard rib dimensions

Valid for both wall and ceiling modules.
The spacing of the ribs is set according to the width of the ribs and will vary according to your design.

Portrait ribs solid wood

20×33 /20×45 /  20×70 mm
27×33 / 27×70 / 27×95 mm
33×33 / 33×70 / 33×95 / 33×120 mm
44×70 / 44×95 / 44×120 / 44×145 mm

Landscape ribs solid wood

33×20 / 70×20 / 95×20 / 120×20 / 145×20 mm
33×27 / 70×27 / 95×27 / 120×27 / 145×27 mm
33×33 / 70×33 / 95×33 / 120×33 / 145×33 mm
70×44 / 95×44 / 120×44 / 145×44 mm

SPACING

In-line spacing

The in-line spacing is a minimum of 5 mm.

Fire safety

The module’s fire rating is dependent on the chosen material for the ribs.

Solid Wood ribs

B-s1,d0. Achieved by vacuum impregnation. Optionally included acoustic felts are available from class
B-s1,d0 to A2-s1,d0.

Wrapped ribs

Core class B-s1,d0. We use B-s1,d0 classified MDF. We call it core class as the veneer and the lacquer are not included in the classification. Optionally included acoustic felts are available from class B-s1,d0 to A2-s1,d0.

Plywood ribs

Core class B-s1,d0. We use B-s1,d0 classified Plywood. We call it core class as the veneer and the lacquer are not included in the classification. Optionally included acoustic felts are available from class B-s1,d0 to A2-s1,d0.

With our low emission wood, you can breathe out.
And everyone else can breathe in.

Solid wood is naturally low emitting and the and lacquers used for our Modules are certified NAF systems – No Added urea Formaldehyde. A safe choice.

KNOWLEDGEHUB / EMISSIONS

Our Linear Modules Solid wood comply with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 1,0 (mg/m³) 0,321 (mg/m³) ≤ 0,06 (mg/m³) 0,03 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,321 (mg/m³) < 0,06 (mg/m²h) 0,038 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,35 (mg/m²h) < 0,05 (mg/m²h) 0,038 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,35 (mg/m²h) < 0,05 (mg/m²h) 0,038 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,321 (mg/m³) ≤ 0,06 (mg/m³) 0,03 (mg/m³)



More Building Certifications >>



Fossil Free and responsible

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way.

KNOWLEDGEHUB / SUSTAINABILITY

READ MORE ON GREEN GUSTAFS

01 FSC© +
01 FSC©

Gustafs is FSC® certified and we can supply wood from responsible forestry, important if your project must comply with leading building assessments like BREEAM and LEED.

02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY

Producing in Sweden and surrounded by hydro power plants, we can produce with 100% Fossil Free energy.

03 BUY OUR WASTE +
03 BUY OUR WASTE

We have come a long way but still have some beautiful wood waste. Buy it in our web shop and make something beautiful.

Bespoke solutions

Gustafs Module is a real carpentry product and very suitable for customizations. Below 3 examples. If you have other design ideas, let us know and we will help you realizing them.

01 3D SHAPED RIBS +
01 3D SHAPED RIBS

Ribs in solid wood can be shaped to create beautiful 3D effects.

02 ROUNDED & TRIANGULAR +
02 ROUNDED & TRIANGULAR

Solid wooden ribs can be moulded into to round shapes. Here our designs Ellipse & Pyramid.

03 WAVY DESIGNS +
03 WAVY DESIGNS

Wavy designs will be the eye-catching ceiling in any room. Plywood ribs are by far the most suitable solution to be used here.

Ceiling Installation FS - Free Suspended

Installation

Ceiling Modules come pre-assembled and ready to use for a quick installation process. Acoustic felts and sound dampening insulations can be a part of the solution.

Curved Modules

With over 100 years of joinery experience, projects requiring curved ceiling Modules are in our safe hands.

CEILING INSTALLATION
Ready to install

Linear Modules for ceilings come fully assembled and standard equipped with an acoustic felt.

CEILING INSTALLATION

CURVED CEILING INSTALLATION
As simple as flat

Provide us with the radius of the wall or pillar and the prefabricated Module will fit like a glove. The installation is similar to and as simple as on non-curved surfaces.

CEILING INSTALLATION

PROJECTS
EQT’s head office, Stockholm

Suspended ceiling that runs through the entire office. The suspended ceiling consists of our Linear Modules with solid wooden slats.

PROJECT

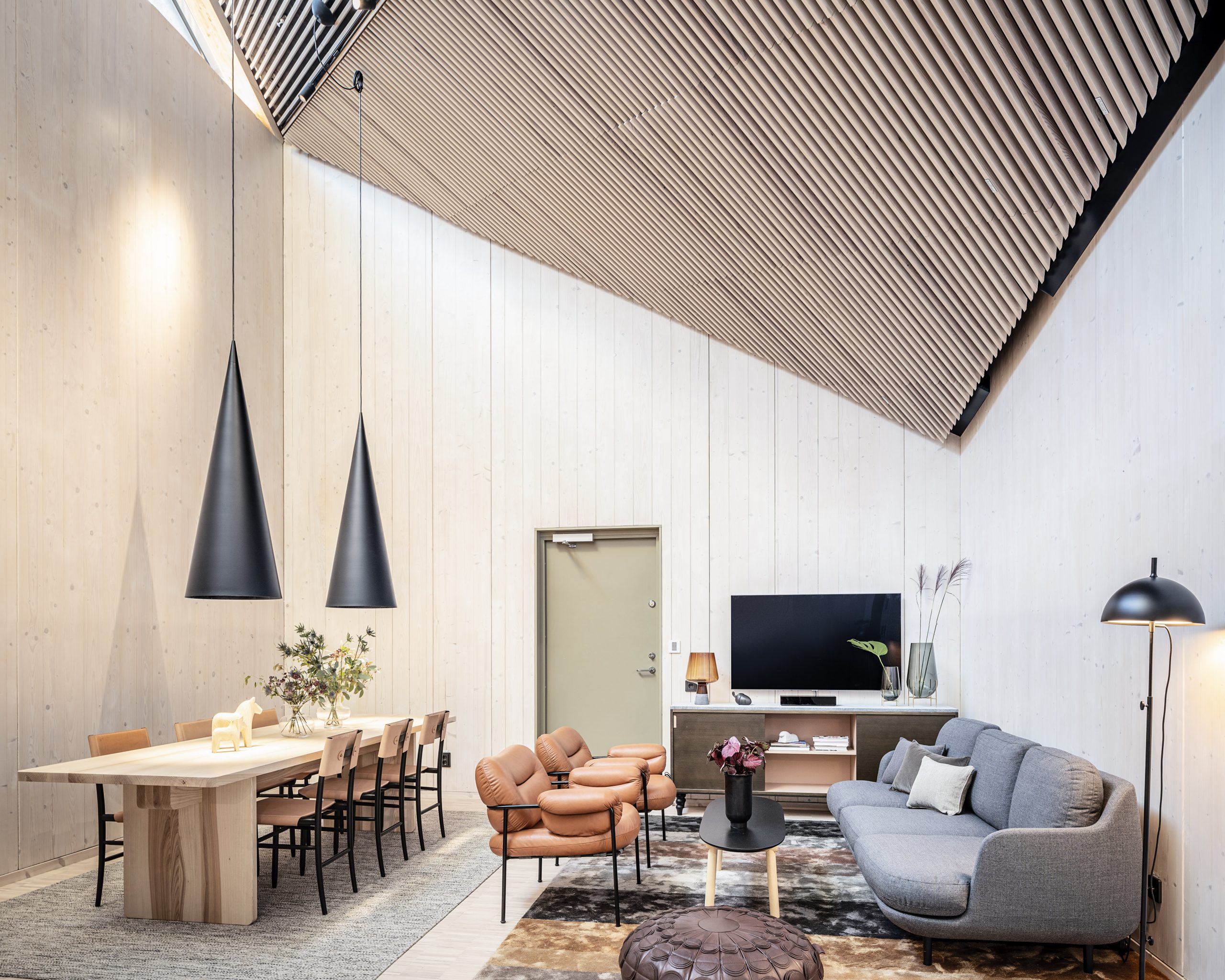

Arlanda VIP

Arlanda airport’s VIP-service offers an exclusive environment with a focus on nordic origin. Gustafs had the opportunity to produce and deliver the ceiling to large parts of the airport’s new VIP section.

Download files for Gustafs Linear Module FS-Ceiling

CAD
CAD & Specification text | zip
DOWNLOAD
CAD-FILES
PRODUCT SHEET
Module FS Ceiling | pdf
DOWNLOAD
SPECIFICATION TEXT
Module Solid Wood | pdf
Module Plywood | pdf
Module MDF | pdf
DOWNLOAD
DOWNLOAD
DOWNLOAD
TECHNICAL DATA SHEETS
Module FS Solid wood | pdf
Module FS Plywood | pdf
Module FS MDF | pdf
DOWNLOAD
DOWNLOAD
DOWNLOAD
FIRE CLASSIFICATION
Reaction to fire Gustafs products | pdf
DOWNLOAD
