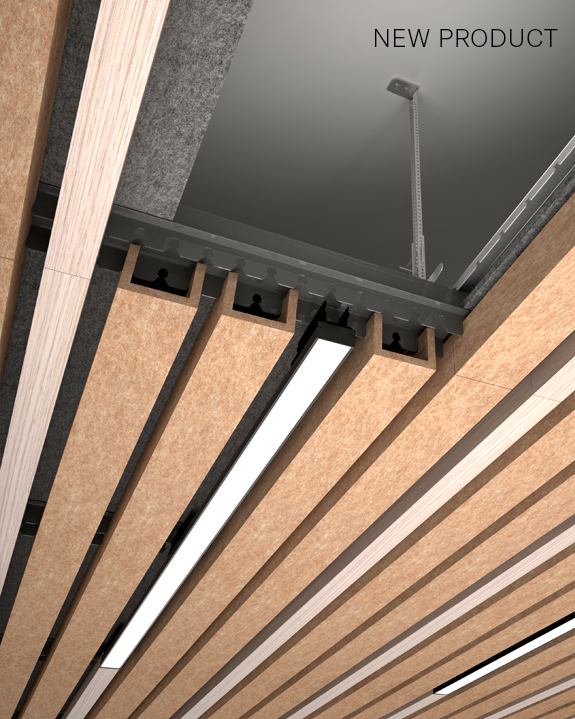

Installation F-Line C

INTEGRATED LIGHTING FOR BEAUTIFULL CEILINGS

With F-Line C, you can bring light and architecture together in a refined linear LED system designed for perfect alignment within the Capax Mix installation framework. The luminaire integrates effortlessly with Gustafs Linear Ribs and Feltfon elements, following the same rhythm, spacing, and proportions — or it can be installed as a standalone design feature to create contrast and visual flow. The lamps simply click onto the BASE-CF ceiling grid.

TYPE / SOLUTION

Lighting System

APPLICATION

Ceilings

INSTALLATION

CAPAX MIX

CONTACT

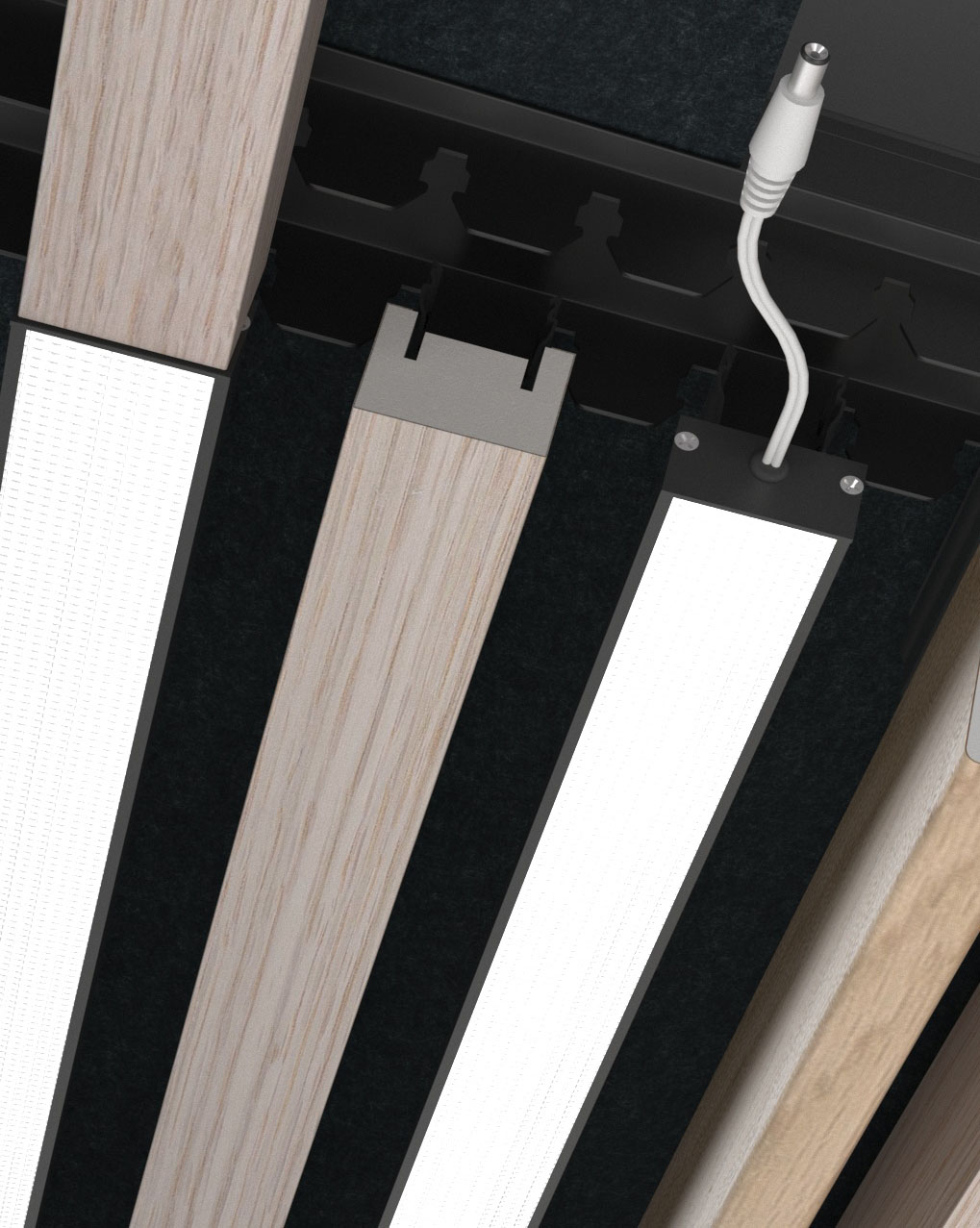

Installation

The lighting modules fit directly into the Mix system without additional framing or tools, ensuring a precise alignment and a fast, clean installation process.

Design

With its minimal profile and precise detailing, F-Line C enhances both wood and felt surfaces, offering seamless illumination and a timeless, architectural expression. A flexible lighting solution that unites aesthetics, performance, and craftsmanship in one continuous line.

Measurements

WIDTH: 40 mm (lens)
LENGTH: 1000 mm (lens)

FACTS

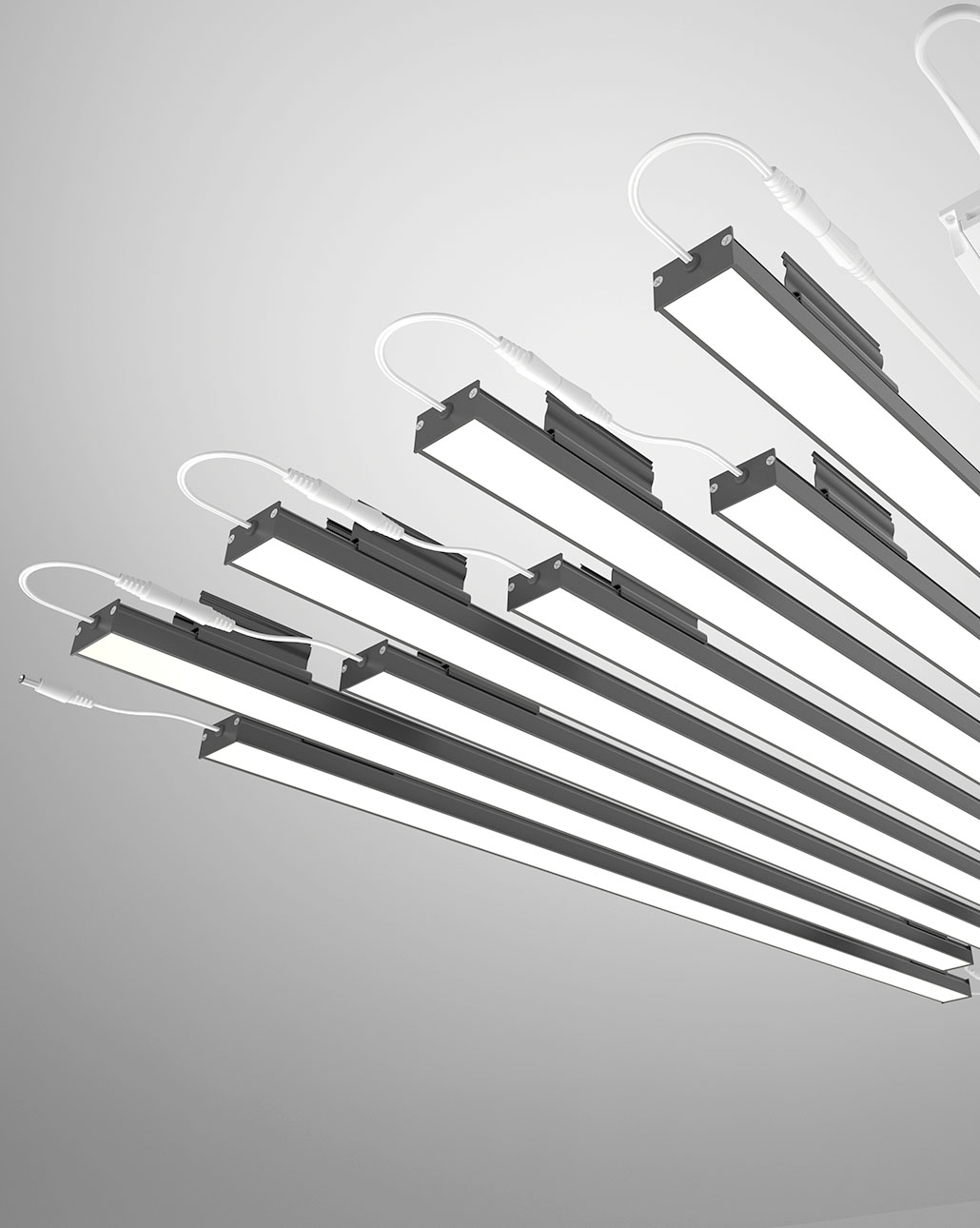

Facts lighting

WIDTH: 40 mm (lens)
LENGTH: 1000 mm (lens)
LED: Neutral White 4000 K, CRI 80
LUMINARE OUTPUT: 2049 lm/m
DIFFUSER: 65° PMMA Microprism or PET Soft
BEAM ANGLE: 60° ±5°
DIMMABLE: YES
PARALLEL CONNECTION: up to 8 lamps
SERIES CONNECTION: up to 8 lamps
CE: Yes

JOINTS +

JOINTS

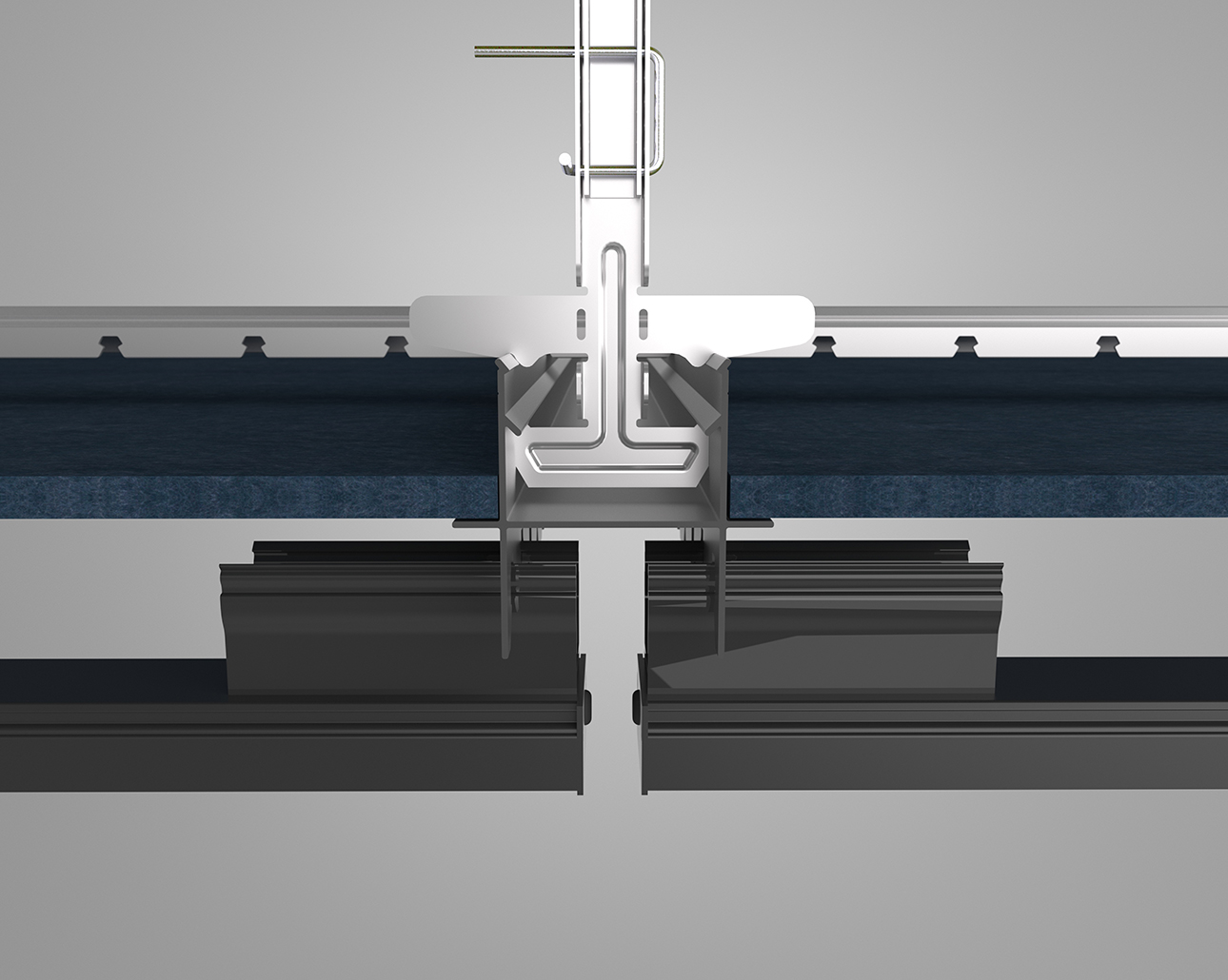

The ends of two F-line C can be fixed on the same BASE-CF profile and in the same fixation hole. The F-line-C ends will be fully fixated for perfect looking and over time lasting connections, still completely demountable.

MIX PRODUCTS +

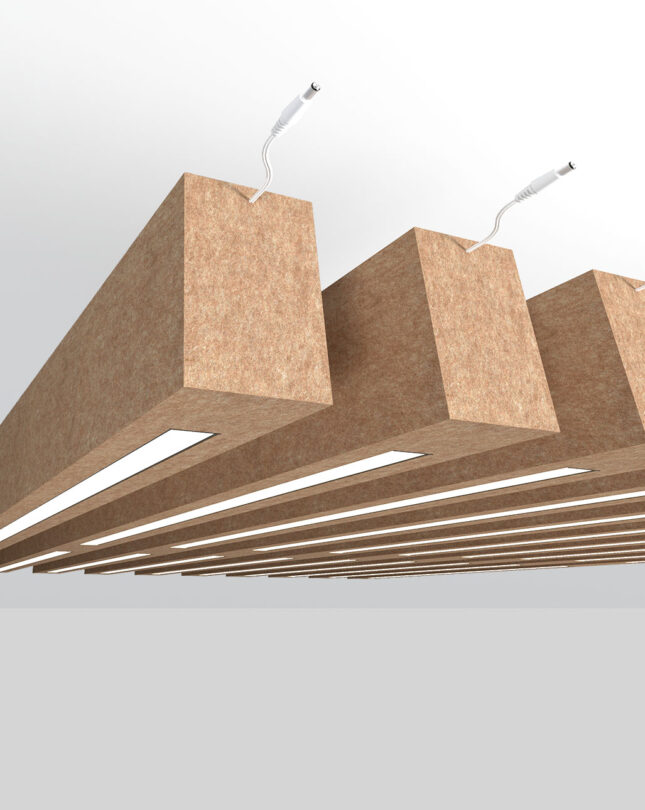

MIX PRODUCTS

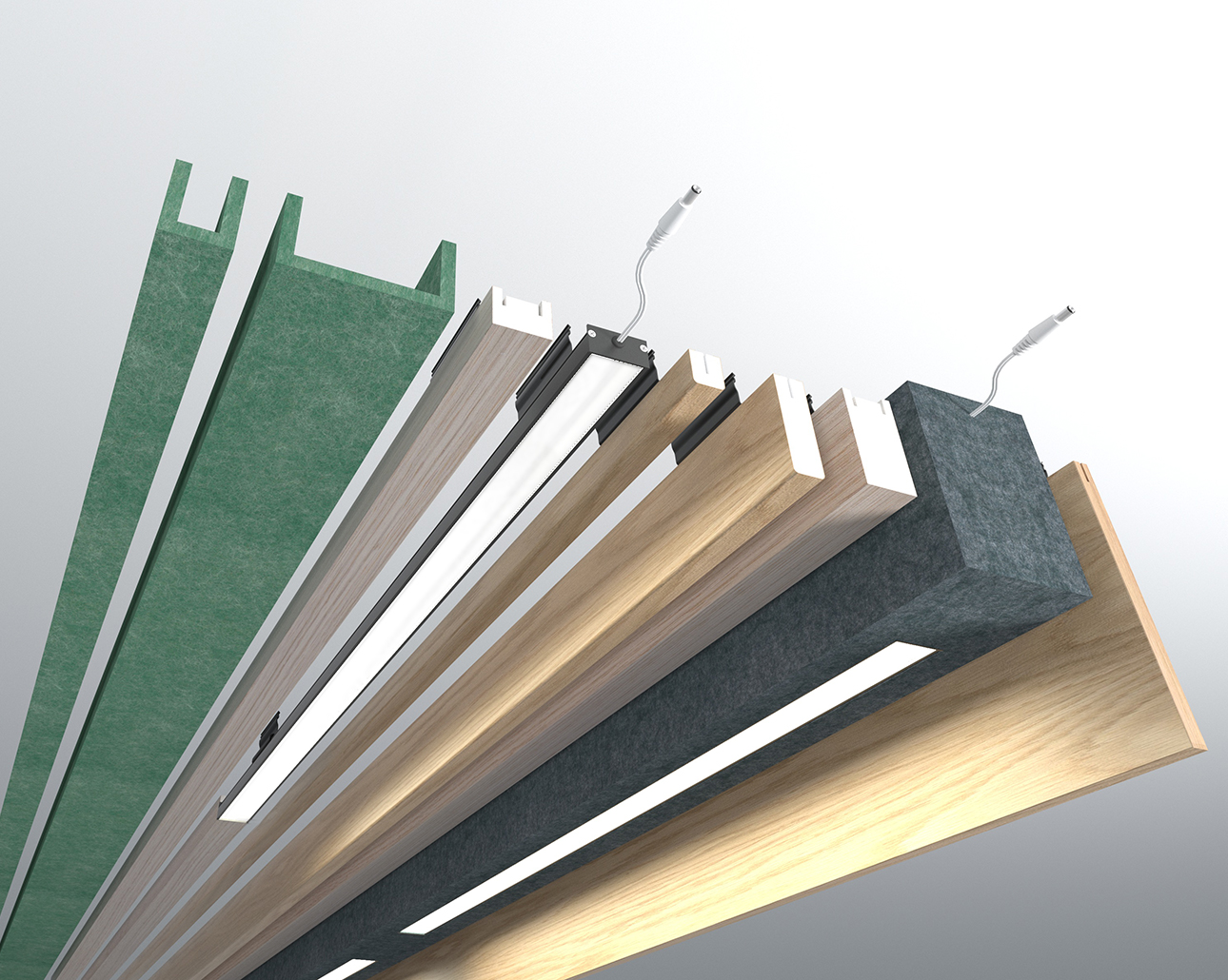

In the Capax Linear Mix system you can combine many different products in one system.
Feltfon, Linear Rib, F-Line-C, F-Line R, Rib Narrow, Rib HD and Blayde.

F-Line Click

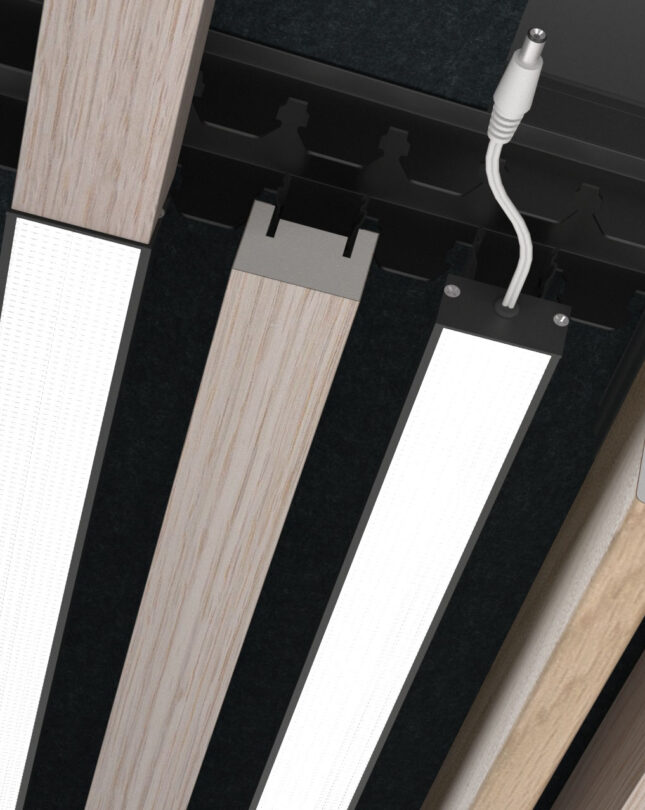

Easily attach linear LED lamps to the Capax installation profile using the U-FIX-F clip, which also supports the Feltfon Linear Ribs. The F-Line Click LED lamps align perfectly with 50 mm deep Feltfon Linear Ribs or can be discreetly positioned between Feltfon Linear Baffles. Can also be perfectly alined with 40 mm wide Gustafs Linear Ribs, using the Mix system installation.

Combination possibilities

Linear Rib R

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-R product page >>

Installation Rib Ceiling >>
Installation Rib Narrow >>
Installation Rib HD >>

Linear Rib S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-S product page >>

Installation Rib Ceiling >>
Installation Rib Narrow >>
Installation Rib HD >>

Rib-E

To Rib-E Installation Page >>

Feltfon range

All Linear products, Ribs, DNA, Baffle, Layers, Curves etc. + Blox.

See all Feltfon products >>

Feltfon ceiling installation page >>

Blayde

To product page >>

To Installation page >>

F-Line C light

To Installation page F-Line C >>

Step by step guide

STEP 1

1. Use 2 pcs of U-FIX-CF-80 per lamp with a maximum cc interval of 600 mm.

A = 600 ± 10 mm

STEP 2

2. U-FIX-CF-80 attached to the concealed track of the F-LINE-C lamp.

STEP 3

3. Attach the F-Line to the BASE-CF carrier, starting in position A.

You must hear 3 ”clicks” to finalize the attachment.

STEP 4

4. The spacing can be increased in increments of 31 mm.
22 mm, 53 mm, 84 mm, 115 mm

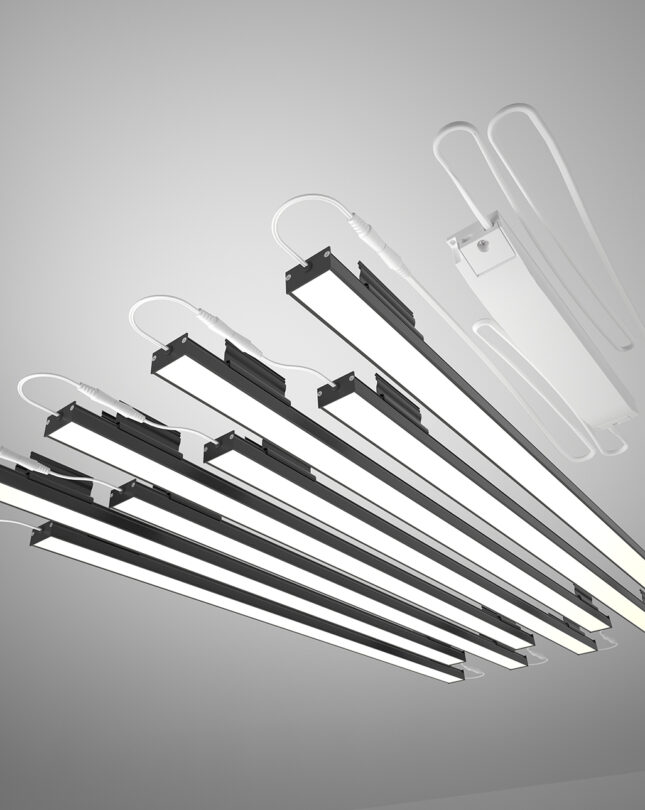

LIGHTS IN SERIE CONNECTION

The lamps connects in series.

Open image in new window

PARALLELL SPLIT CONNECTION

You can connect 8 lamps for each transformer.

Open image in new window

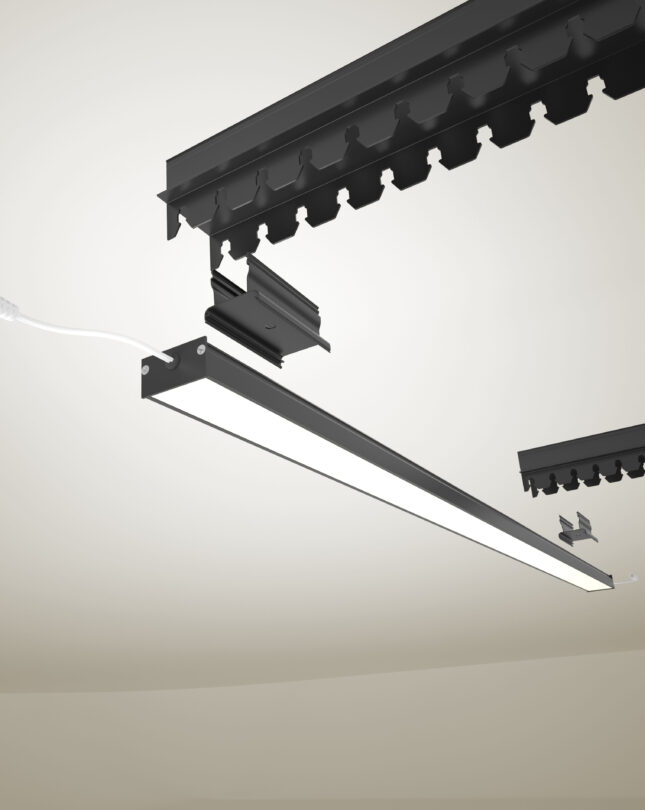

PARTS

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
F. F-Line C
G. U-FIX-CF-80
H. 3263 Connector
I. Acoustex 9 mm

1. F-Line C

SPACINGS & CC

Centre – to – Centre

Within the Capax Mix system, the centre-to-centre (cc) measurements are fixed at 62, 93, 124, 155, and 186 mm. The resulting visible spacing between profiles depends on the selected product width and configuration.
