Blayde installation – Ceiling

EXCLUSIVE BAFFLE SYSTEM FOR CEILINGS

Design refined and exclusive baffle or grill ceilings with Blayde – a premium system where every detail reflects craftsmanship and precision. Each Blayde is veneered on both sides and finished with solid wood lippings on all three visible edges, ensuring a harmonious and authentic wooden appearance from every angle. The Capax Quick-Up installation system provides secure, time-efficient, and fully demountable mounting with flexible spacing configurations. Blayde naturally meets up to the highest A2-s1,d0 fire classification and can be tailored with different veneers, pigmented colours, or Gustafs’ acoustic perforation Nano. Available in depths from 130 to 400 mm, Blayde is fully compatible with the Capax Mix system.

APPLICATION

Ceilings

TYPE / SOLUTION

Linear Mix System

INSTALLATION

CAPAX MIX

CONTACT

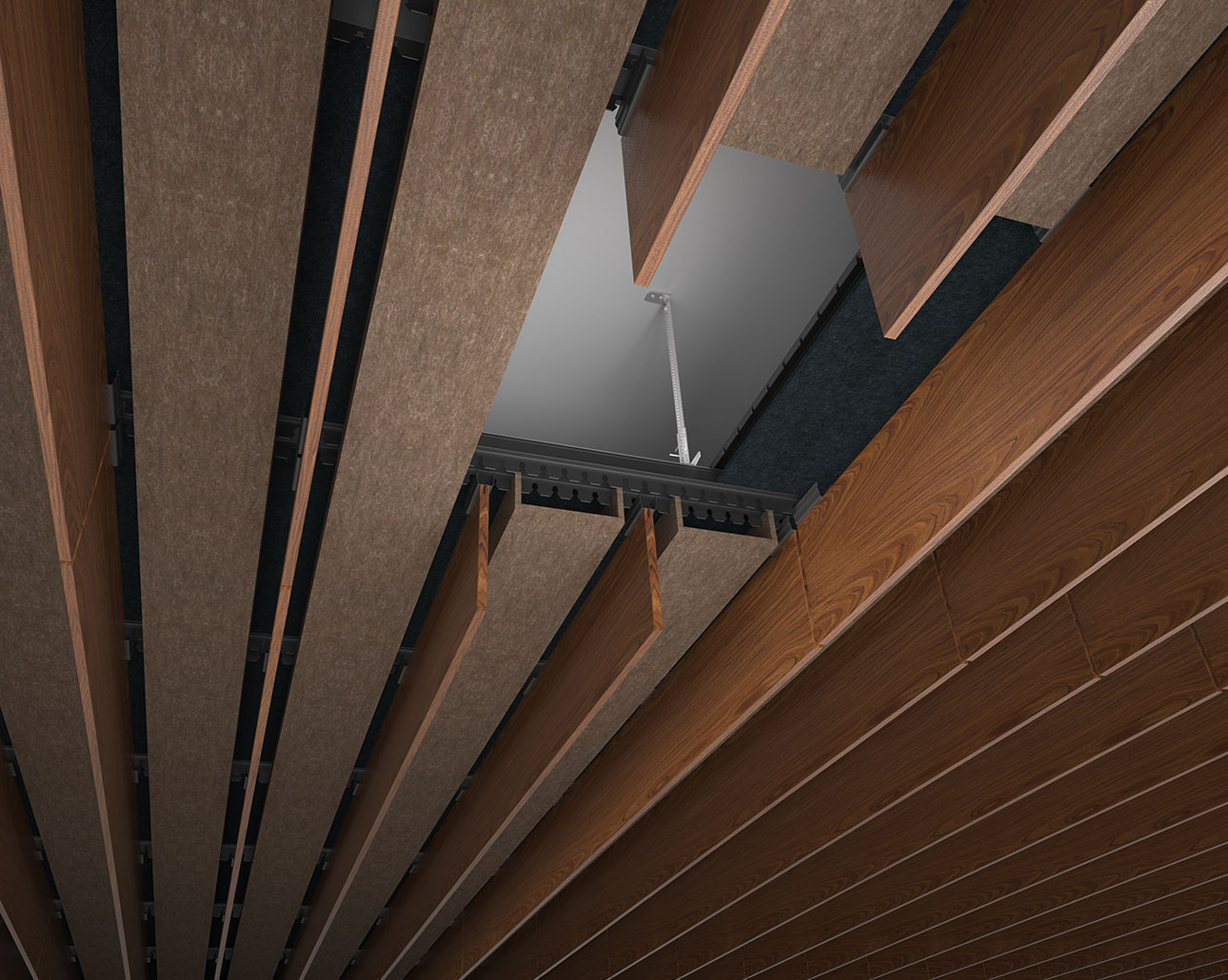

FELT & WOOD +

FELT & WOOD

Mix felt and wood as you like and create new patterns.

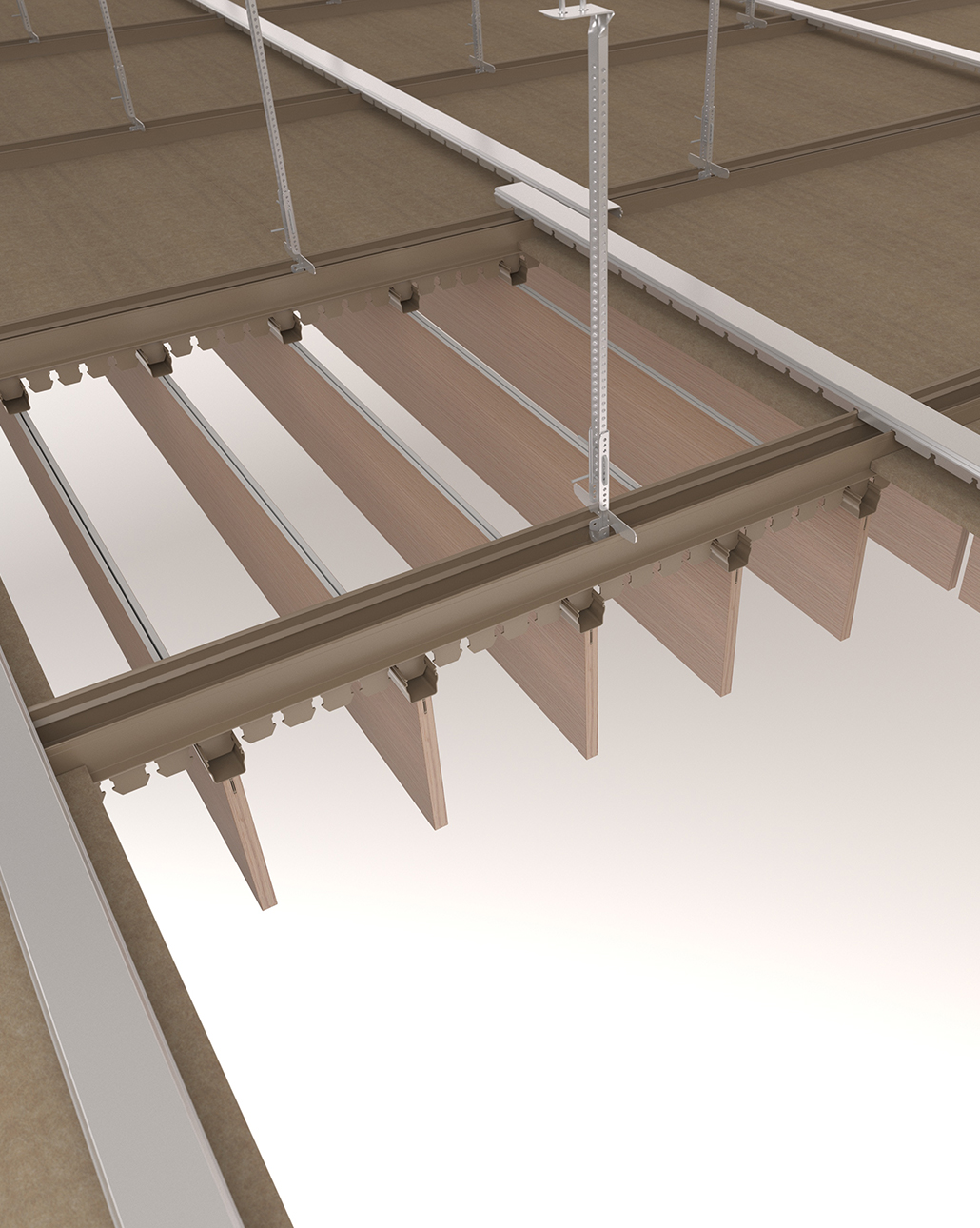

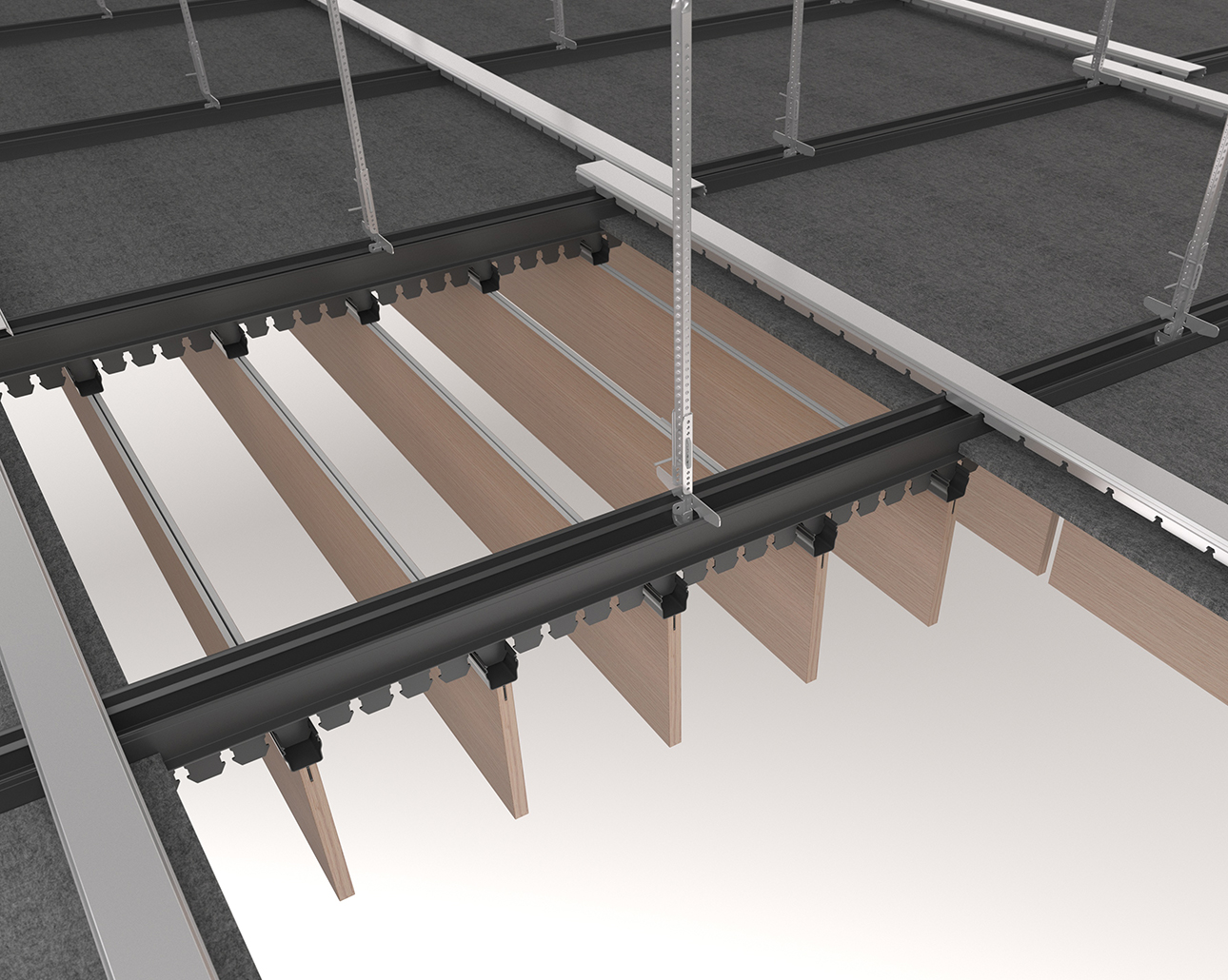

TOP VIEW +

TOP VIEW

Gustafs Capax is rigid, corrosion-resistant, and optionally features an easy-to-install, demountable acoustic backing in various colours.

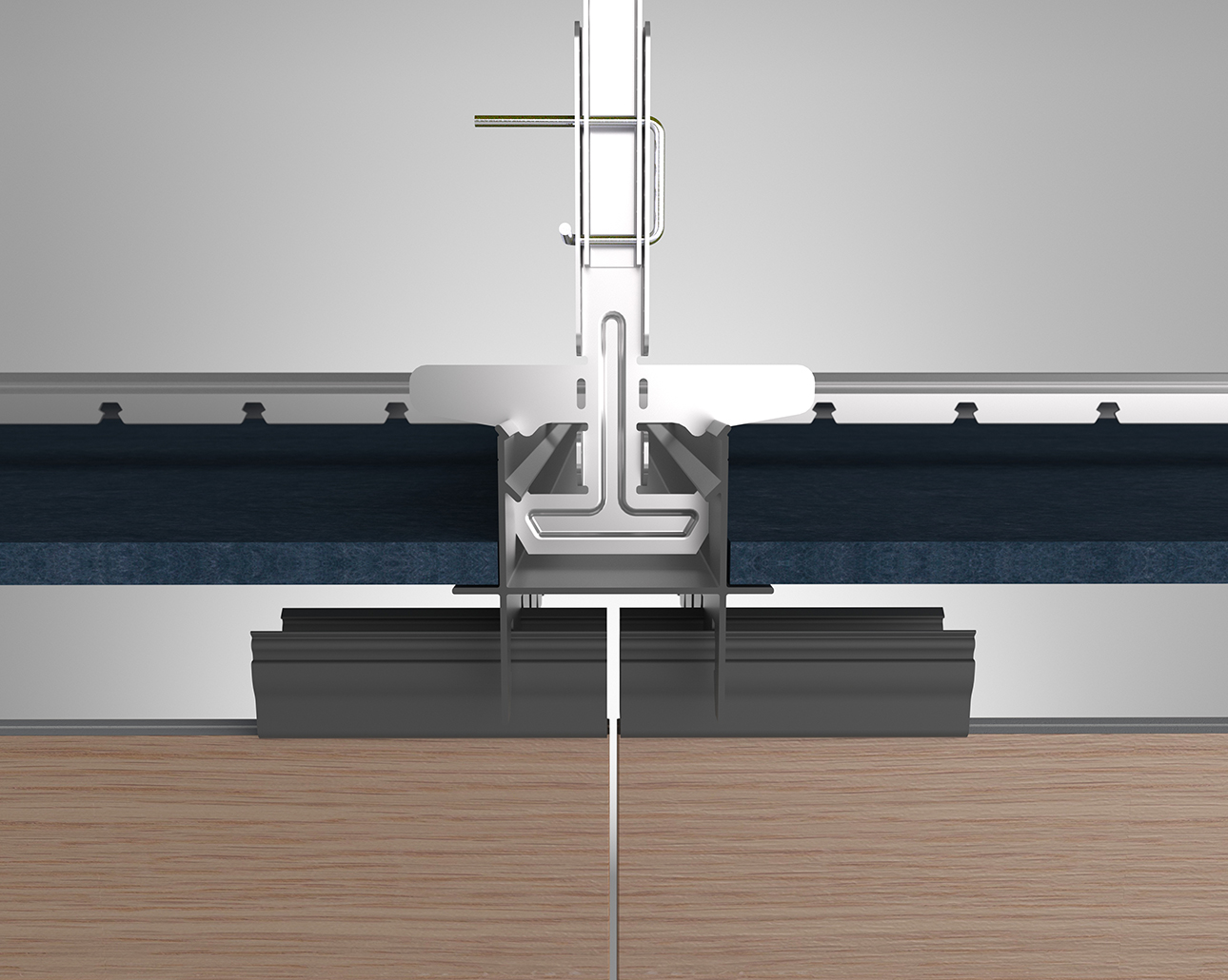

JOINTS +

JOINTS

The ends of two Blayde can be fixed on the same BASE-CF profile and in the same fixation hole. The Blayde-ends will be fully fixated for perfect looking and over time lasting connections, still completely demountable.

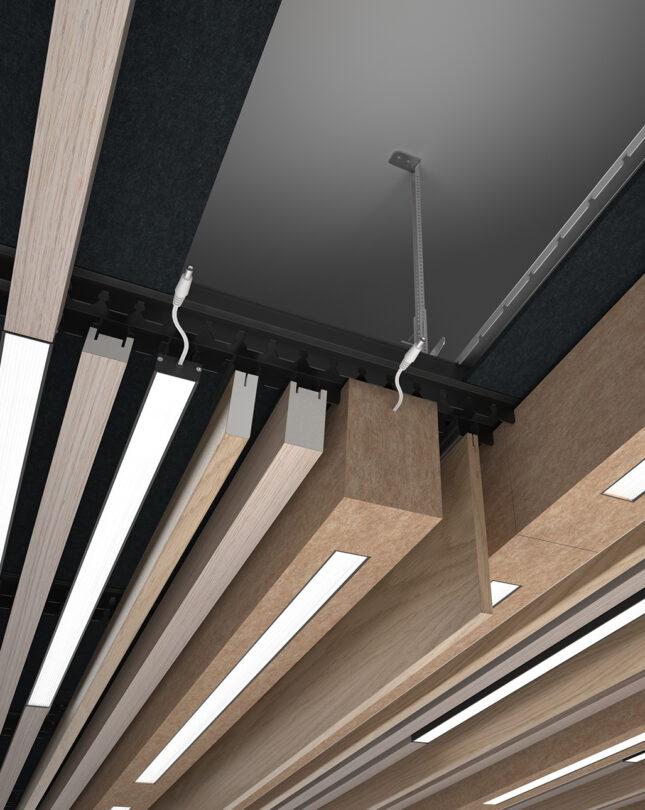

CAPAX MIX

Seamless Integration of Multiple Ceiling Models

Blayde is compatible with Capax Mix, so you can combine it with Gustafs Linear RIB, Linear Feltfon and integrated Linear LED lighting. This versatility opens entirely new creative possibilities, allowing you to design custom, one-of-a-kind expressions with seamless fit and perfect visual alignment.

Combination possibilities

Products installed with the Capax Mix System

Linear Rib-R

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

Rib-R product page >>

Rib Installation – Ceiling >>
Rib Narrow Installation – Ceiling >>
Rib HD Installation – Ceiling >>

Linear Rib-S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

Rib-S product page >>

Rib Installation – Ceiling >>
Rib Narrow Installation – Ceiling >>
Rib HD Installation – Ceiling >>

Linear Rib-E

Rib-E product page >>

Rib-E Installation – Ceiling >>

Feltfon range

All linear Feltfon products + Blox

See all Feltfon products >>

Feltfon Installation – Ceiling >>

F-Line R Lighting

Installation F-Line R >>

F-Line C Lighting

Installation F-Line C >>

Customised installations

These instructions refer to our standard installation. For other solutions such as curved ceilings, closures and door liners, contact our support.

CONTACT SUPPORT

ACOUSTEX 9

Acoustex 9

Acoustex 9 mm acoustic insulation comes in a wide range of colours, perfectly matched to our Feltfon and wood felt products – ensuring both visual harmony and acoustic performance.

APPLICATION: Wall, ceilings, wet rooms
FIRE CLASS: B-s1,d0
MATERIAL: 9 mm rPET felt

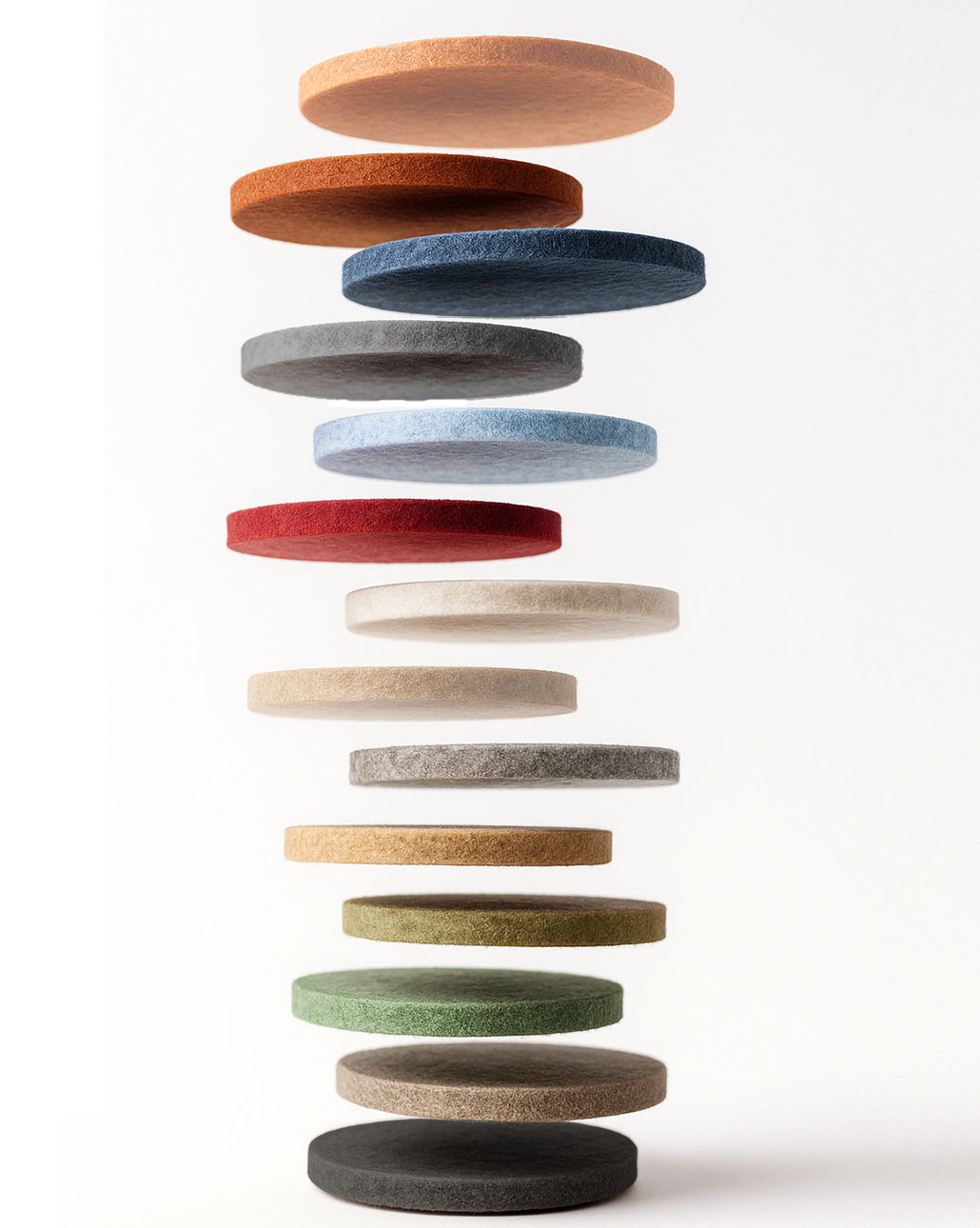

FELT COLOURS

ACOUSTEX 15

Acoustex 15

Acoustex 15 mm acoustic insulation is available in many colours

DIMENSIONS (mm): 1194 x 594, 594 x 594

Colour	Colour code	LRV
Jet Black	NCS S 8500-N	3
Rock Grey	NCS S 7502-B	8
Smoke Grey	NCS S 2000-N	58
Linen	NCS S 1005-R80B	75
Desert Tan	NCS S 4005-Y50R	30
Cream Latte	NCS S 2005-Y40R	54
Mouse Grey	NCS S 4000-N	33
Pale Denim	NCS S 3020-B	35
Ivory	NCS S 1510-Y60R	57
Moss	NCS S 3010-G10Y	32
Damask	NCS S 3040-Y90R	20
Buff	NCS S 1505-Y30R	68
Khaki	NCS S 2020-Y20R	31
Amber	NCS S 2050-Y10R	53

Before you start the installation

Plan

Select Blaydes on colour shade and plan your ceiling installation, we recommend mixing varying shades randomly.

Room temperature

The room temperature should be between 18-50 C°.

Humidity

The air humidity should be between 25-60%. The humidity in the under laying construction (concrete) should not be higher than 15%.

Installation Guide – Step by step

STEP 1

1. Suspend the Nonius ceiling hangers from the ceiling. Plan the positioning of the Nonius according to steps 3 and 4. ↓

STEP 2

2. Use the adapter NONIUS-CD to connect the BASE-CF profile to the ceiling hangers.

Nonius-CD adapter for ceiling installations

STEP 3

3. Suspend the BASE-CF profiles with a repeated interval of 600 mm, measured from the centrums of the profiles (cc).

A = 600 mm

Suspended Base-CF

STEP 4

4. Measured along the length of the BASE-CF, the connection to the ceiling must be made every 600 mm .

B = 600 mm

STEP 5

5. Level the height using a laser and secure the hanger with the Nonius-CD with the locking pin.

STEP 6

6. Secure the position of the NONIUS-CD by bending the 2 wings and the long leg of the locking pin.

STEP 7

7. When needed, connect the BASE-CF in-line with profile 3265 and assure the cc distance between the fixation points remains constant. Increase the friction between the engaging components by slightly twisting one corner inwards, on each BASE-CF.

Base-CF in-line connection using Capax profile 3265

STEP 8

8. Snap the distance profile 3262 perpendicular to the BASE-CF every 1200 mm.

STEP 9

9. Two distance profiles Capax 3262 will partially run parallel, where mounted on the same BASE-CF.

STEP 10

10. Install Acoustex-15 insulation or Acoustex-9 felt onto the ”T” section of the BASE-CF.

STEP 11

11. Attach U-FIX-FG to the concealed track of the Blayde.

Staple length: 10 mm

Gauge: 18

STEP 11 b

11 b. For Blaydes exceeding depth 200 mm use 2 staples per U-FIX.

Staple length: 10 mm

Gauge: 18

STEP 12

12. Use 5 pcs of U-FIX-FG per 2400 mm length with a maximum cc interval of 600 mm.

A = 600 ± 10 mm

STEP 13

13. The Blaydes can be installed with spacing of 49 mm, 80 mm, or 111 mm, 142 mm, 173 mm. The spacing can be increased in increments of 31 mm.

STEP 14

14. Attach the Blayde baffle to the BASE-CF carrier, starting in position A.

You must hear 3 ”clicks” to finalize the attachment.

STEP 15

15. The in-line connection of 2 Blaydes should be secured by a BASE-CF profile.

STEP 16

16. The end of a Blayde baffle must not protrude unsupported more than max 200 mm.

Optionally, add Acoustex-9, in the colour of choice, inside the BASE-CF.

CEILING PARTS

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
F. Blayde
G. U-FIX-FG
H. 3265 Connector
I. Acoustex 9 mm

1. Blayde

Centre – to – Centre

Within the Capax Mix system, the centre-to-centre (cc) measurements are fixed at 62, 93, 124, 155, and 186 mm. The resulting visible spacing between profiles depends on the selected product width and configuration.

Components

Nonius-hanger

nonius-cd hanger for gustafs feltfon
Nonius hanger

Nonius-CD

nonius-cd hanger for gustafs feltfon
Nonius-CD connecting Base-CF with the Nonius hanger.

Base-CF

Base profile length: 3000 mm.

Capax 3265 Connector

Connector for to Base-CF. Length: 300 mm.

Capax profile 3262

capax 3265 distance profile
Distance profile 3262

Nonius Lock

lock Nonius hanger with Nonius-CD

U-Fix FG

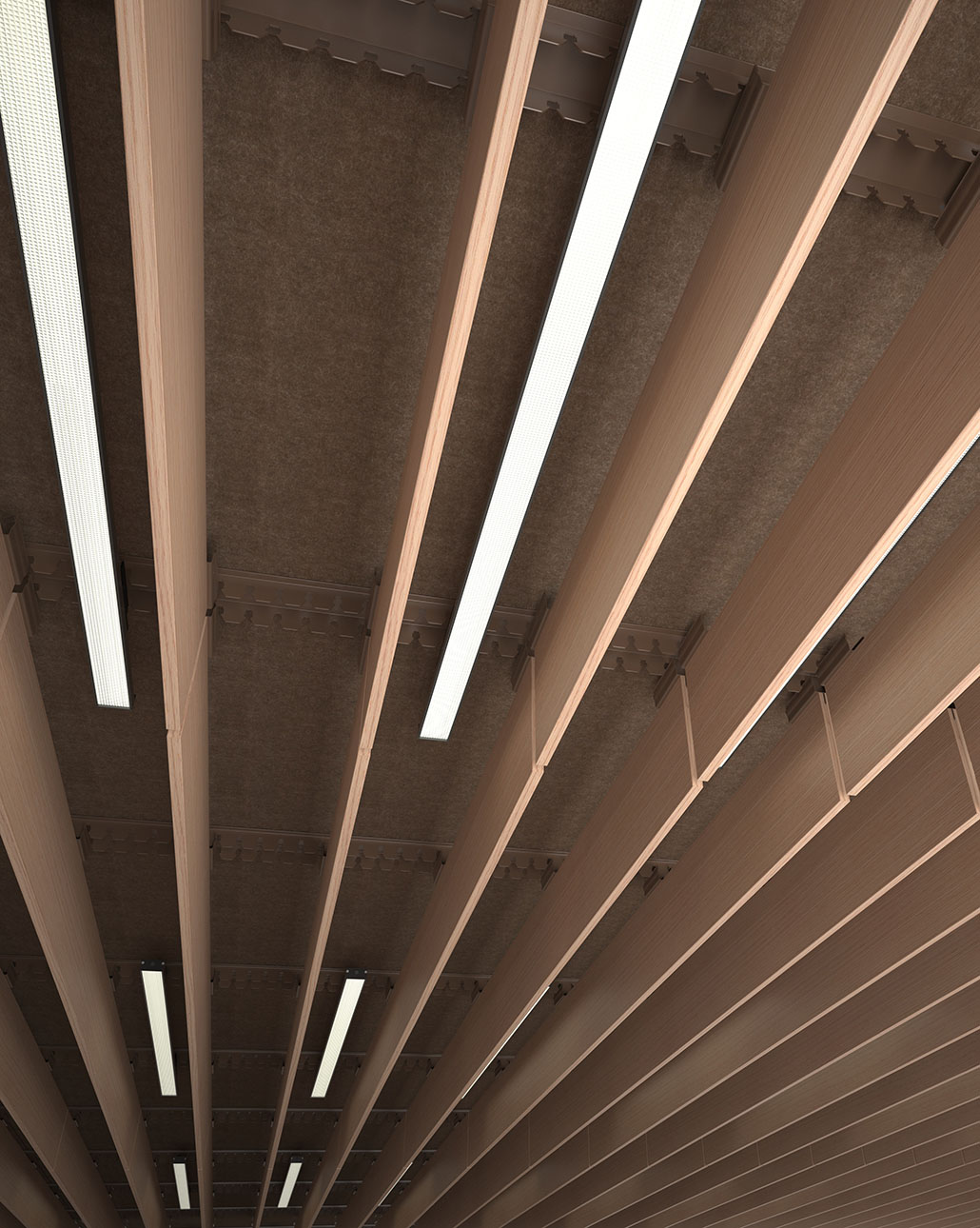

GUSTAFS LIGHTING

Linear LED Lighting

Gustafs F-Line light fixtures are designed in harmony with our Gustafs Linear products.

Gustafs F-Line R and F-Line C can be installed in between Blayde baffles.

Wood

Wood is a natural product and each veneer is unique. Colour, pattern and structural differences are considered as normal and a part of the décor. Select baffles on colour shade and plan your wall or ceiling installation, we recommend mixing varying shades randomly. Wood changes over time when exposed to UV-light.

Conditions for Storage, Installation and Use

Only for indoor use and not in wet rooms. Storage, Installation and Use at 18-50 C° and 25-60% air humidity. The humidity in the under laying construc-tion (concrete) should not be higher than 15%. Gustafs solutions are sensitive to humidity and water, therefore they should always be stored dry and in-door.

Storage & Transportation

– Do not transport unsecured baffles.
– Do not stack pallets.
– Keep the packaging closed during storage.
– Lift baffles flat, vertically and one at the time.
– Avoid exposure to strong and direct sunlight.

Cleaning

Cleaning is done by dry mop or vacuum. Use synthetic cleaning fluid without ammonia for greasy stains, fruit, wine and coffee. Blood is removed with cold water.

Our UV coated and Laminate surfaces are approved for hospital cleaning products containing up to 70% alcohol.

On building site

– Avoid exposure to strong and direct sunlight.
– Do not expose visible surfaces to sharp objects during installation.
– Do not slide products on each other. Lean baffles against a wall for short term storage.
– Protect both non-installed and installed baffles from impact coming from ladders, trolleys, furniture installation, etc, including all other workers and their tools.
