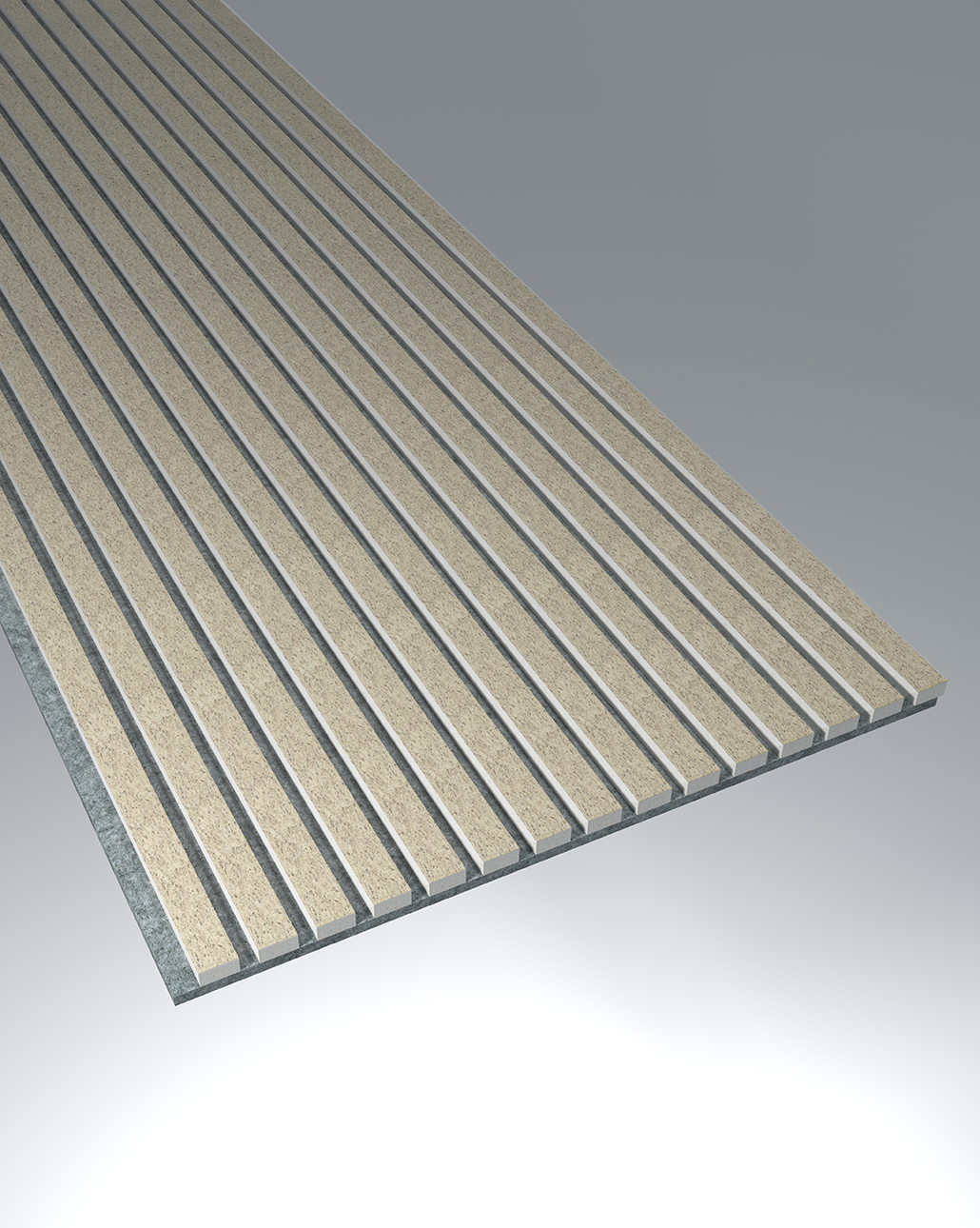

Lamellow+ Cera

ACOUSTIC LINEAR PANELS FOR WALLS AND CEILINGS

A stable felt backing and linear ribs in a modern looking composite material treated with a protecting triple UV coating system. Simple and quick installation, on walls with screws, nails or glue, suspended from the ceiling with Gustafs well proven T24 system. The panels are always installed with concealed joints in between, in all 4 directions. Of course the Lamellow+ Cera holds a solid B-s1,d0 fire classification, the Gustafs way without the need for chemical impregnation. Fulfills all criteria for use in public spaces. Are you an interior designer – challenge us with you own design pattern of our Lamellow+ series!

TYPE / SOLUTION

Linear Panels

APPLICATION

Ceilings, Wall

Acoustic class

A, D

Fire Class

B-s1,d0

Material

Ribs made of high quality composite material, joined together with a visible felt backing.

Fire Safety

The fire safety of Gustafs Lamellow+ Cera comes from its material composition and is not reliant on chemical treatments. The Lamellow+ Cera panel has the fire classification B-s1,d0.

Surface treatment

Lamellow+ Cera panels come ready to use with a triple UV coating for easy cleaning and a good durability. The coating has a matt, modern look.

01 EASY TO INSTALL +
01 EASY TO INSTALL

Lamellow+ Cera is a ready to use linear panel. Ready to be installed directly on the wall or in the ceiling. You can also use our Capax ceiling system to create fully concealed and suspended ceilings.

Installation >>

02 ACOUSTIC FELT COLOUR +
02 ACOUSTIC FELT COLOUR

Depending on the colour of the acoustic felt backing, the overall impression of the finished surface will vary. As a result, there are many possible design combinations. The felt is available in eleven different colours – each with it’s own character.

03 MADE IN SWEDEN +
03 MADE IN SWEDEN

The Lamellow+ Cera panels are beautifully crafted at our factory in Gustafs, Sweden – like all our other products.

Design possibilities

Cera

Gustafs Lamellow+ Cera is made of high quality composite material and a triple UV coating, for a ceramic look.

Acoustex 9.0

The Acoustex felt is made from a minimum of 50% post consumer recycled PET bottles. Washed and chipped rPET flakes are melted down and spun into the fibres to make the Acoustex felt.

Felt colours

The felt is available in eleven colours – each with it’s own character. Depending on the colour of the acoustic felt backing, the overall impression of the finished surface will vary. As a result, there are many possible design combinations.

Other Lamellow products

Lamellow+ Barcode

Lamellow panel with barcode pattern. Natural wood, natural fire protection. The Lamellow+ Barcode panel has the fire classification B-s1,d0.

LAMELLOW+ BARCODE

Lamellow Spa

For wall and and ceiling claddings indoors in ex. spa, wetrooms or orangeries as well as outdoor installations placed under a roof. Lamellow panel with linear pattern.

LAMELLOW SPA

Lamellow+ Linear

Lamellow panel with linear pattern. Natural wood, natural fire protection. The Lamellow+ Linear panel has the fire classification B-s1,d0.

LAMELLOW+ LINEAR

Lamellow

Lamellow panels with Linear and Barcode pattern for private use can be purchased on the Gustafs webshop.

GUSTAFS WEBSHOP

Turn our standards into something unique

Within the Lamellow+ Cera product group, you’ll find three designs: Puzzle, Barcode and Linear.

Puzzle

Lamellow+ Cera with slats in two different widths. Available in four different patterns and in three lengths – for you to build your own puzzle.

Puzzle >>

Barcode

Lamellow+ Cera with 15 slats in two different widths, creating a vibrant barcode pattern.

Barcode >>

Linear

Lamellow+ Cera with 15 slats in the same dimension, creating a sleek and modern linear pattern.

Linear >>

01 PUZZLE

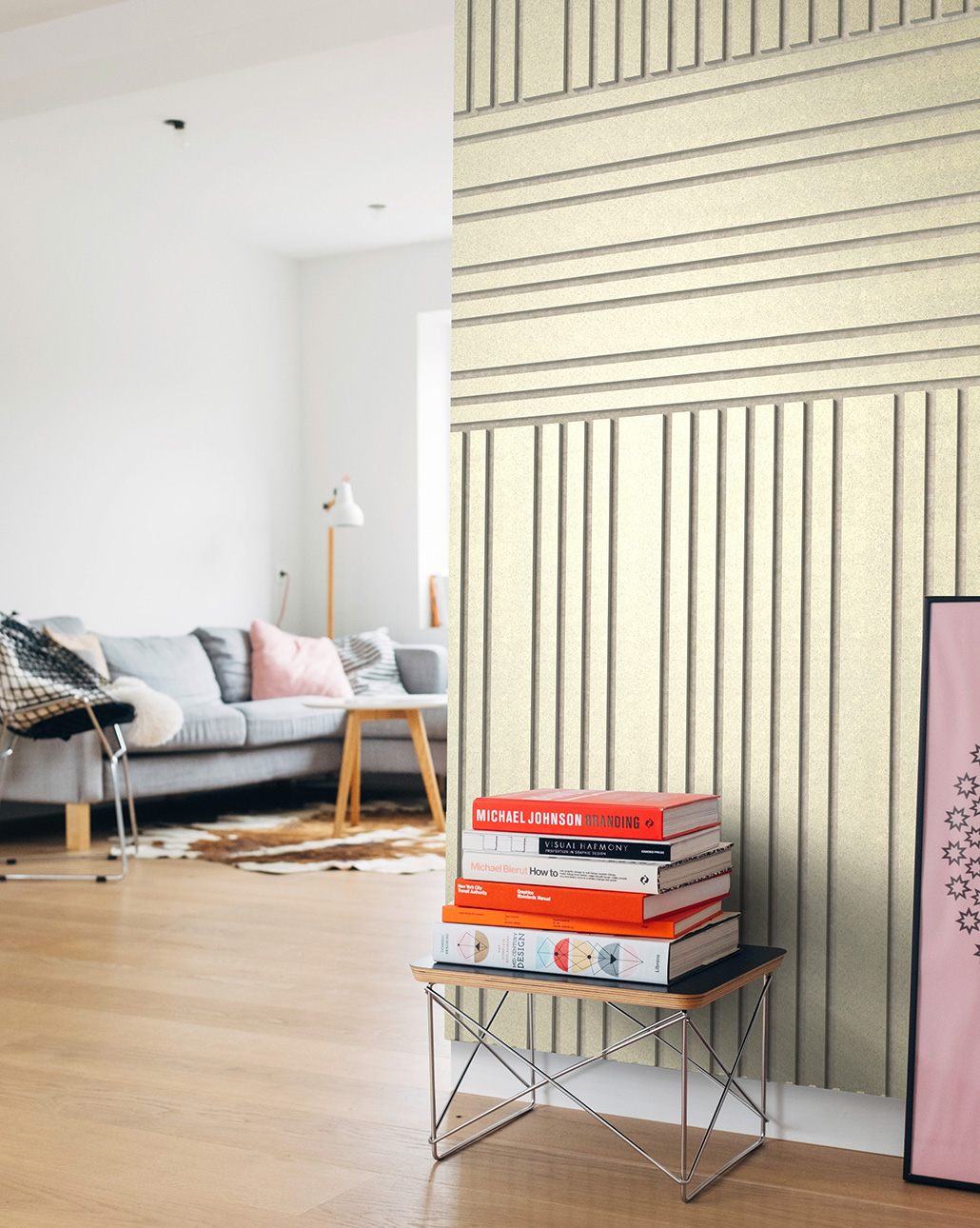

Lamellow+ Cera Puzzle

Our latest design in twelve models that can be combined in endless variations, horizontally and vertically. When the panels are jointed, the result is always a 17 mm spacing between the slats, in all four directions. Available in four different patterns and in three lengths – puzzle your own wall.

Dimensioner >>

02 BARCODE

Lamellow+ Cera Barcode

A vibrant barcode pattern with ribs in two dimensions. Use this pattern in meeting rooms, behind TV’s and screens for video meetings if you want to reduce disturbing visual patterns. For the same reason, keep the contrast between the rib surface and backing felt colour low.

Dimensions & Spacing >>

03 LINEAR

Lamellow+ Cera Linear

Our most traditional design pattern, Lamellow+ Cera with fifteen slats, all in the same dimension and with the same spacing, creating a sleek, modern, and long-lasting appearance.

Dimensions & Spacing >>

Choose your design

Lamellow+ Cera is available in eleven different standard Acoustex felt colours.

Cera

The Gustafs Lamellow+ Cera ribs are made of high quality composite material and a triple UV coating, for a ceramic look.

Acoustic felt

Washed and chipped rPET flakes are melted down and spun into the fibres to make Gustafs Acoustex felt. The felt is available in eleven colours.

Felt colours >>

Lamellow+ Cera panels

ACOUSTIC FELT: Dirty Green

cera dirty green felt

ACOUSTIC FELT: Wet Sand

cera wet sand felt

ACOUSTIC FELT: Sand

cera sand felt

ACOUSTIC FELT: Anthracite

cera anthracite felt

ACOUSTIC FELT: Dark Grey

cera dark grey felt

ACOUSTIC FELT: Wool Grey

cera wool grey felt

FELT

Acoustic felt

The ribs are attached to a 9 mm thick Acoustex felt which is made from a minimum of 50% post consumer recycled PET bottles. The felt is Oeko-Tex certified.

The acoustic felt is available in the following colours:
1. Anthracite
2. Dark Grey
3. Wool Grey
4. Sand
5. Wet Sand
6. Dirty Green
7. Clay
8. Old Clay
9. Baked Clay
10. Jade
0. White

Depending on the colour of the acoustic felt backing, the overall impression of the finished surface will vary. As a result, there are many possible design combinations.

Measurements

Lamellow+ Cera is available in three designs; Puzzle, Barcode and Linear.

Puzzle

The Puzzle panels are available in four different patterns that can be mixed freely for a unique design. All four in the standard dimensions 600 mm wide and 22 mm thick, and in three different lengths; 600 mm, 1200 mm and 2400 mm.

Puzzle Dimensions >>

Barcode

The Barcode panels are available in the standard dimensions 600 mm wide, 2400 mm long and 22 mm thick. Bespoke lengths up to 3000 mm are available.

Barcode Dimensions >>

Linear

The Linear panels are available in the standard dimensions 600 mm wide, 2400 mm long and 22 mm thick. Bespoke lengths up to 3000 mm are available.

Linear Dimensions >>

PANEL DIMENSIONS PUZZLE
Panel dimensions – Puzzle

A: 2400 mm (1.44 m²)
B: 1200 mm
C: 600 mm
D: 600 mm
E: 22 mm

F: 13 mm
G: 9 mm

Puzzle Pattern

H: 33 mm
I: 83 mm
J: 17 mm
K: 8,5 mm

PATTERN DIMENSIONS PUZZLE

The slats are 33 mm or 83 mm wide, available in four different patterns. Examples below shows panels that are 1200 x 600 mm.

Spacing between slats (all patterns): 17 mm
Spacing between felt edge and outer slats (all patterns): 8,5 mm

PANEL DIMENSIONS BARCODE
Panel dimensions – Barcode

A: 2400 mm (1.44 m²), bespoke lengths up to 3000 mm.
B: 600 mm
C: 22 mm

D: 13 mm
E: 9 mm

Barcode Pattern

F: 18 mm
G: 13 mm
H: 33 mm

PATTERN DIMENSIONS BARCODE

15 slats per panel in the repeated pattern (mm):
33-33-18-33-18

Spacing: 13 mm

PANEL DIMENSIONS LINEAR
Panel dimensions – Linear

A: 2400 mm (1.44 m²), bespoke lengths up to 3000 mm.
B: 600 mm
C: 22 mm

D: 13 mm
E: 9 mm

Linear Pattern

F: 27 mm
G: 13 mm

PATTERN DIMENSIONS LINEAR

Linear pattern with 27 mm wide slats
Spacing: 13 mm

Sounds Beautiful

Gustafs’ Lamellow+ Cera optimizes the sound quality for rooms in all sizes. Bring the beautiful sound of natural silence indoor. Lamellow+ Cera is designed for eyes and ears.

Acoustic absorption Lamellow+ Cera
APPLICATION INSULATION αw / NCR
Wall/Ceiling 45 mm mineral wool αw 0,95-A / NRC 0,95
Ceiling Suspended 0 + 200 mm air void αw 0,90-A / NRC 0,85
Wall/Ceiling direct installation αw 0,30-D / NRC 0,55

Natural fire protection

The fire safety of Gustafs Lamellow+ Cera comes from its material composition and is not reliant on chemical treatments. The Lamellow+ Cera panel has the fire classification B-s1,d0.

Reaction to Fire Classification
PRODUCT CORE MATERIAL SLATS COATED SURFACE
Lamellow+ Cera Ceramic Composite B-s1,d0
Lamellow+ Cera Ceramic Composite ASTM-A
FIRE SAFETY +
FIRE SAFETY

The core in our ribs makes our fire safety unique. The rest is superficial.

KNOWLEDGE HUB / CORE

5 natural benefits of the ceramic composite core

The slats of Gustafs Lamellow+ Cera are produced with a high-density, reinforced ceramic composite core having inherent properties in terms of dimension stability, emissions, sustainability, fire safety and acoustics. The slats are therefore ticking every box regarding these 5 fundamental demands in today’s modern building industry.

Stability

Unaffected by indoor climate changes, both the rPET Acoustex felt, and the ceramic composite doesn’t bulge, warp or swell – making large panels and zero-spaced joints perfectly viable. The end-result will be beautiful and remain so over the full lifetime.

Fire Safety

The non-combustible ceramic composite core of the ribs, nor the Gustafs Acoustex PET felt backing need chemicals to achieve their fire rating. The complete Lamellow+ Cera panel holds a true fire classification B-s1,d0.

Acoustics

Acoustically, the use of a wall cladding with a higher density is usually favourable compared to lighter materials. Ceramic core-based ribs are heavier than wood-based solutions and sound waves will not make them vibrate or resonate. The Gustafs Acoustex backing has superb sound dampening qualities.

Sustainability

The high-density core of the Lamellow+ Cera ribs has a low thermal conductivity, and stabilizes the room temperature, reducing the need for cooling or heating. The Lamellow+ Cera ribs contain 17% post-consumer recycled material and the acoustic felt minimum 50%, very important for LEED or BREEAM certification of buildings.

Emissions

The ceramic composite core of the Lamellow+ ribs is extremely low emitting. One of the reasons is that these cores are produced without wood binders and automatically without added urea-formaldehyde or isocyanates. Also, the PET acoustic felt is very low emitting, resulting in a overall product with per definition very low TVOC and formaldehyde emissions.

Installed directly on an existing wall or ceiling.

The Lamellow+ Cera acoustic panels are really simple and quick to mount, directly on any existing wall or ceiling. Depending on the total construction of the installation, sound absorption class A or D will be reached, but all constructions will achieve fire safety class B-s1,d0.



Acoustic class A

To reach acoustic absorption class A for walls, add 45 mm mineral wool insulation behind the panels and for suspended ceilings use Gustafs T24 Capax system to create a 200 mm air void, no additional insulation needed.

Acoustic class D

For acoustic absorption class D, install directly to the wall or ceiling.

Fixtures

Depending on the sub-construction, screw or nail in the felt between the ribs or use glue. Use screws and nails in colours matching the felt.



01 HIDDEN JOINTS +
01 HIDDEN JOINTS

Lamellow+ in design pattern Linear and Barcode provide seamless installation thanks to Lamellow’s concealed joints.

02 FELT-FELT JOINTS +
02 FELT-FELT JOINTS

Lamellow+ panels in Puzzle design are jointed felt to felt in all directions, in-line or perpendicular, with constant ribs spacings of always 17 mm. Gustafs sturdy but still soft Acoustex material provides truly invisible felt-felt connections.

03 SUSPENDED CEILING +
03 SUSPENDED CEILING

A truly concealed and demountable T24 ceiling installation of Lamellow+ that allows beautiful “zero spacing installations”. A-Class acoustic absorptions with 200 mm air void, no additional insulation needed!

VERTICAL OR HORIZONTAL

Lamellow panels can be installed both vertically or horizontally.

Cut the acoustic panels to fit your wall or ceiling. Cut the slats with a sharp saw and the acoustic felt with a carpenter knife.

With our low emissions, you can breathe out.
And everyone else can breathe in.

The ceramic composite core of Gustafs Lamellow+ Cera ribs and the Acoustex felt backing are regarded inherently none-emitting sources of VOC’s. These naturally very low emitting qualities plus the impregnation-free fire safety of the Lamellow+ Cera panel, guarantee a healthy room air quality.



Our Lamellow+ Cera panels comply with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 0,3 (mg/m³) 0,023 (mg/m³) ≤ 0,06 (mg/m³) 0,051 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,1 (mg/m³) < 0,06 (mg/m²h) 0,024 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,011 (mg/m²h) < 0,05 (mg/m²h) 0,024 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,011 (mg/m²h) < 0,05 (mg/m²h) 0,024 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,1 (mg/m³) ≤ 0,06 (mg/m³) 0,051 (mg/m³)



More Building Certifications >>



Green Acoustics

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy. The felt backing of Lamellow+ Cera contains a minimum of 50% post-consumer recycled material and the ribs are made of 94% recycled material, including 17% post-consumer recycled material. The whole panel is free from retardants, added formaldehyde or isocyanate binders.

01 RECYCLED MATERIALS +
01 RECYCLED MATERIALS

Gustafs Lamellow+ Cera slats contain an incredible 94% recycled material.

02 RECYCLED PET BOTTLES +
02 RECYCLED PET BOTTLES

The Acoustex felt consists of a minimum of 50% post consumer recycled PET-bottles.

03 ENVIRONMENTAL +
03 ENVIRONMENTAL

Our products are environmentally declared and have all documentation in place to comply with leading building assessments like BREEAM and LEED.

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Lamellow+ Cera

Fire
+

Reaction to Fire: B-s1,d0

ASTM: A

Acoustics
+

Depending on the installation method absorption class A or D.

Environmental performance certification program for buildings
+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions
+

E1
M1
Blue Angel
AgBB
French VOC
Belgian VOC

Declaration of Performance
+

Yes

EPD
+

Yes, EPD registration number: S-P-09107

Third party verified EPD, also available on www.environdec.com

And more
+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Country of origin: Sweden
Hygien cleaning: 70% Alc.
Recycled content: 94%
Recycled Post consumer: 17%
