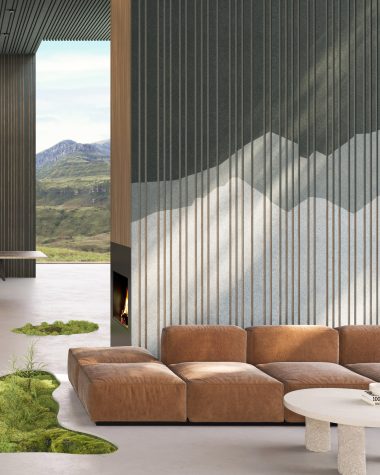

Feltfon Vector Intersections

ACOUSTIC BESPOKE LINEAR FELT for sound absorbing walls and ceilings

Introducing Feltfon Vector, a revolutionary addition to the Gustafs Feltfon product line, using Feltfon Linear as a base. Unleash your creativity with the freedom to interweave Feltfon ribs in straight or curved lines. The Capax Quick-Up system ensures sturdy, hassle-free installation on walls and ceilings. Customize your look with varying linears width, depth, color, spacing width, or wooden in-fill strips. Feltfon Linear is fire-safe without impregnations. Elevate spaces with limitless design possibilities.

TYPE / SOLUTION

Linear System

APPLICATION

Ceilings, Wall, Wet rooms

Fire Class

B-s1,d0

Acoustic class

A, C, D

CONTACT

Material

Gustafs Acoustex© 9 mm represents the next generation of textiles, crafted from a minimum of 50% post-consumer recycled material. This sustainable solution showcases our commitment to reducing environmental impact while maintaining exceptional quality.

Design

Feltfon Vector offers a choice between straight or curved lines, allowing you to create stunning cross-over rib designs. With a selection of six standard colors and three vibrant effect colors, you have a wide range of options to bring your vision to life.

A safe choice

Gustafs Feltfon Vector System is specifically designed for public spaces, prioritizing safety and peace of mind. With its B-s1,d0 classification, this system makes little to no contribution to fire, ensuring a secure environment for all. Based on the Feltfon Linear rib and installed on the same capax system.

01 INTERSECTION +

01 INTERSECTION

Feltfon Vector – Intersection allows you to create visually striking effects by using straight lines that cross over each other, resulting in a sleek and modern appearance.

02 CURVE +

02 CURVE

Feltfon Vector – Curves. Combine with Feltfon Linear and play with curved lines for a more organic and dynamic feel.

03 SLASH +

03 SLASH

By using angled cut Feltfon Linear ribs you can create stunning patterns. Can be bespoke with different angels and combinations or using a standard angel. Please reach out to us with your design for a customized quote

Break away from the linear pattern and unleash your creativity

Within the Feltfon Vector product group, you’ll find three new design patterns: Vector Intersection, Vector Curve, and Vector Slash. Each pattern offers unique and distinctive possibilities for creating captivating and dynamic wall designs. Create fresh and exciting patterns or use them as an accessory to complement your Feltfon Linear installation.

01. INTERSECTION

Feltfon Vector – Intersection

Unleash your creativity with Rib Intersection and craft a personalized touch. Experiment with various combinations, colors, and widths to design a visually unique experience that mirrors your style.

Discover the perfect blend of dimension and style for your walls, as the overlying Feltfon Rib rises 9mm higher, seamlessly embracing the underlying rib. This dynamic addition creates an enchanting break in the linear pattern, infusing depth into your wall.

The angle of the intersection matches the joint angle of Feltfon Slash.

02. CURVES

Feltfon Vector – Curves

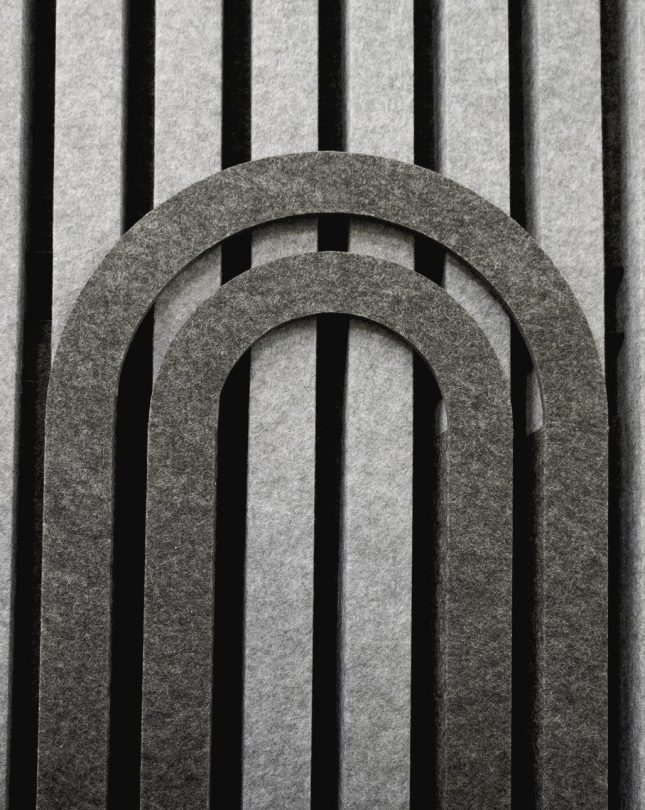

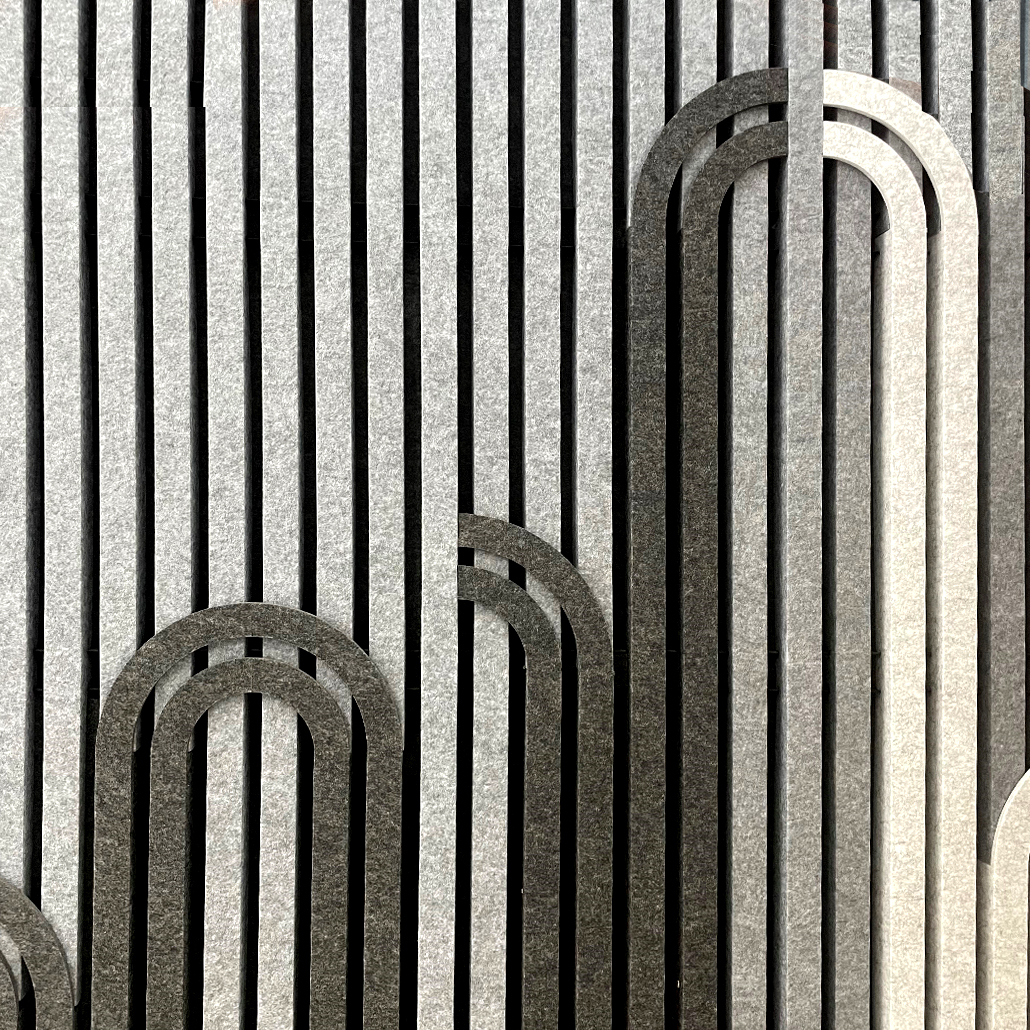

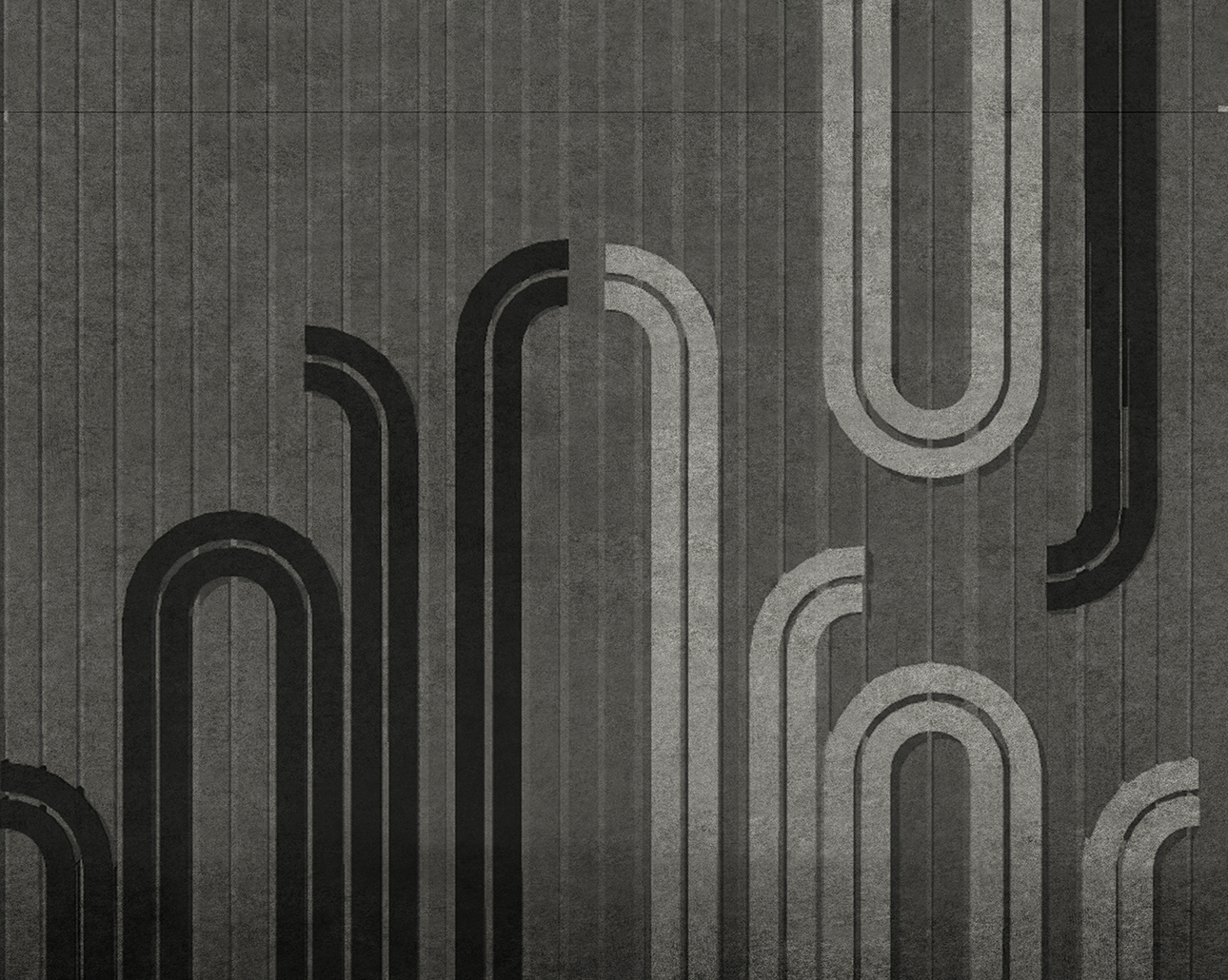

Experience limitless creativity with Feltfon Vector Curves, allowing you to design custom curved patterns using Feltfon Linear as a base. Choose from two variants: 1/4 – Quarter curves and 1/2 – Semi-circles, each with inner and outer parallel curves of different radii. The width of the Curved rib and the underlaying Feltfon Linear ribs is 40mm.

The 1/4 Quarter curve connects to the side of a Feltfon linear rib, with the inner arc intersection 1 rib and the outer arc intersecting 2 ribs.
The 1/2 Semi-circle variant creates a 180-degree turn, with the outer arc crossing 4 straight ribs and the smaller inner arc crossing 2 straight Feltfon Linear rib.

03. SLASH

Feltfon Vector – Slash

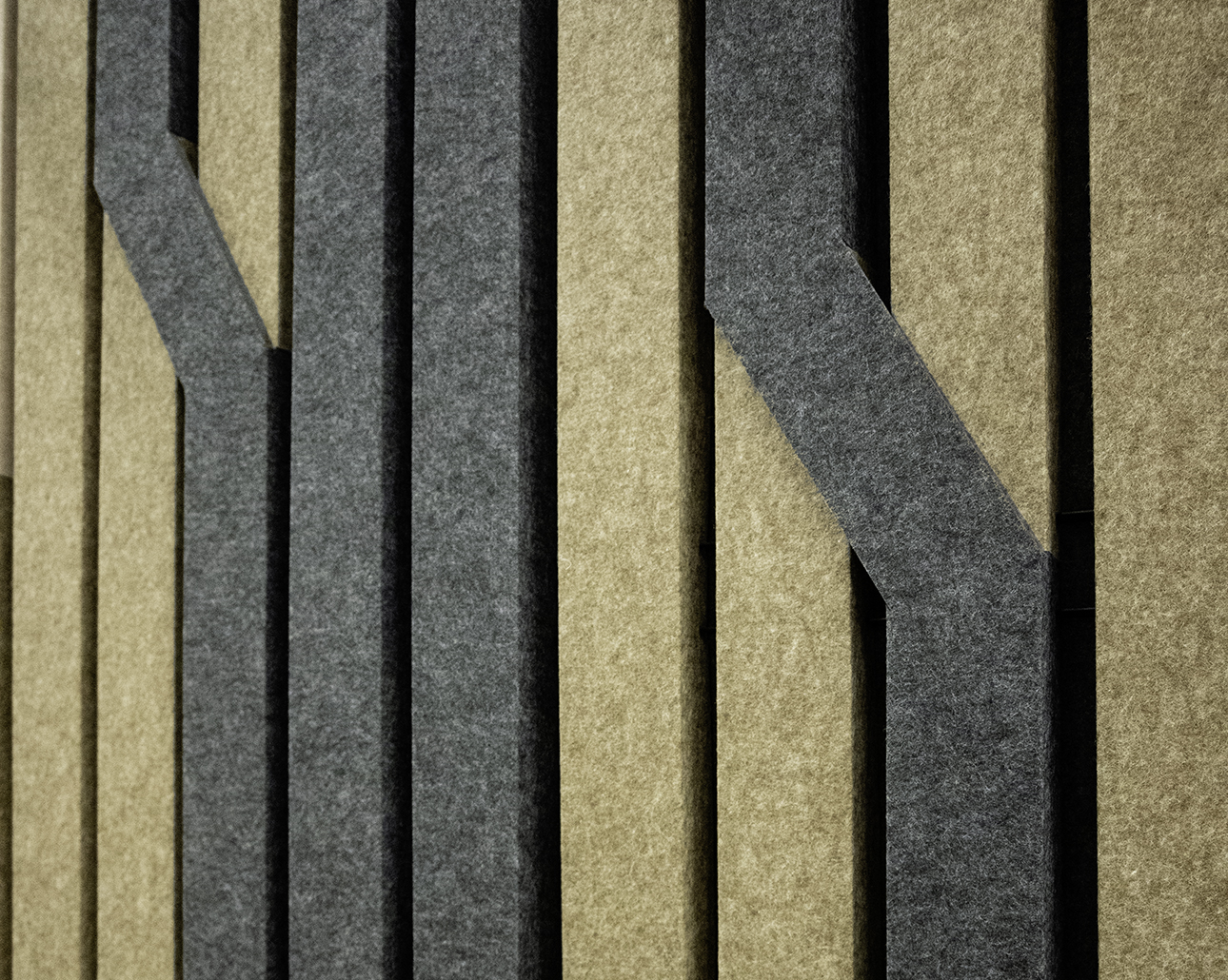

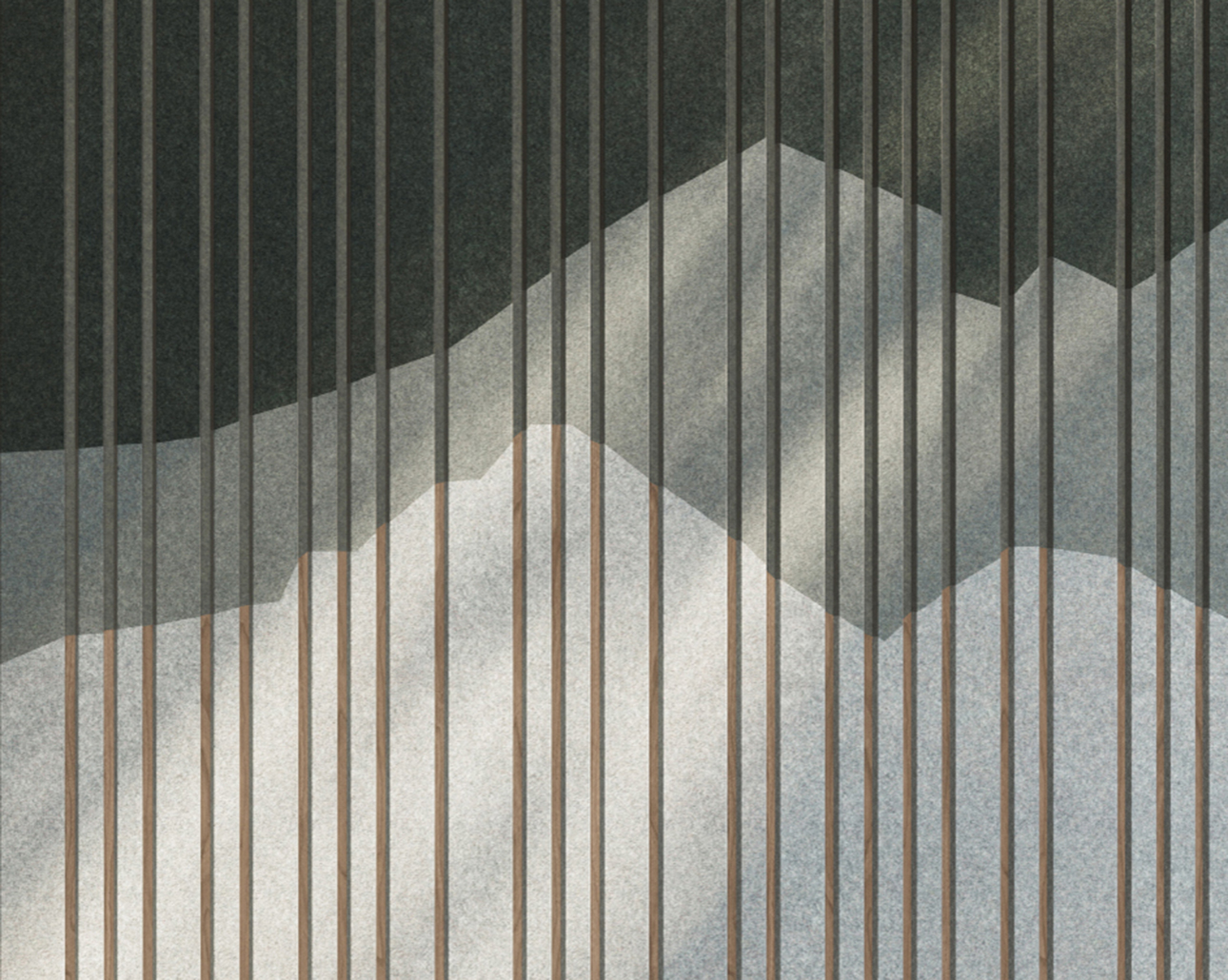

Feltfon Slash, inspired by Feltfon Linear, introduces diagonal rib connections. This enables you to blend colors and form patterns on your wall. The joint angle matches Feltfon Intersection, making them a seamless combination for endless design possibilities.

Acoustex Felt – Green Acoustics made from rPET

Gustafs Acoustex felt is crafted from a minimum of 50% recycled PET bottles, which are chipped into flakes and combined with fresh PET material. This innovative process ensures optimal reprocessing of PET, making it an environmentally-friendly choice. Furthermore, Feltfon Linear is a 100% recyclable solution, emphasizing its commitment to sustainability.

01. STANDARD COLOURS +

01. STANDARD COLOURS

Feltfon Vector is available in:

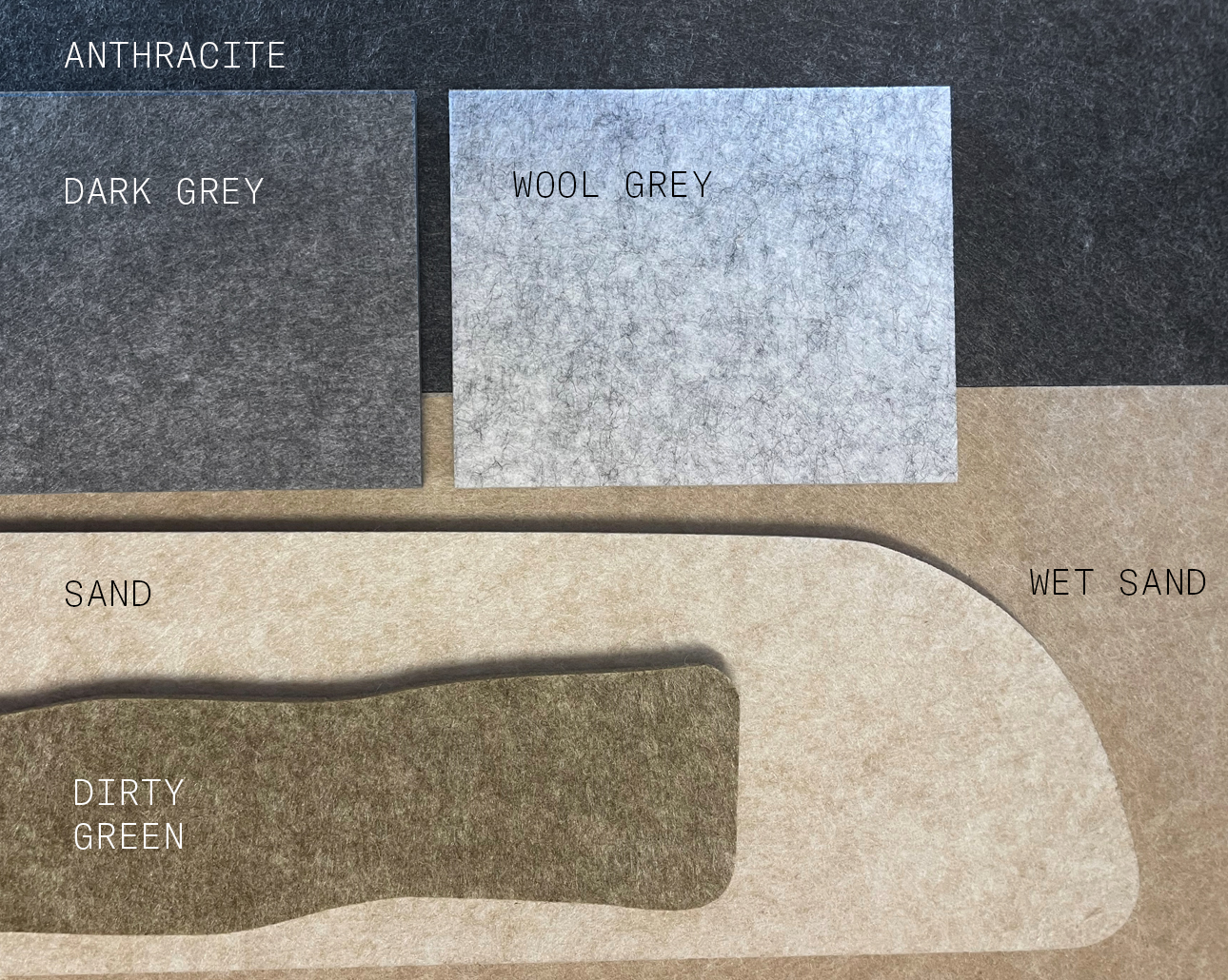

Wool grey, Dark grey, Anthracite grey
Sand, Wet Sand, Dirty Green.

02. EFFECT COLOURS +

02. EFFECT COLOURS

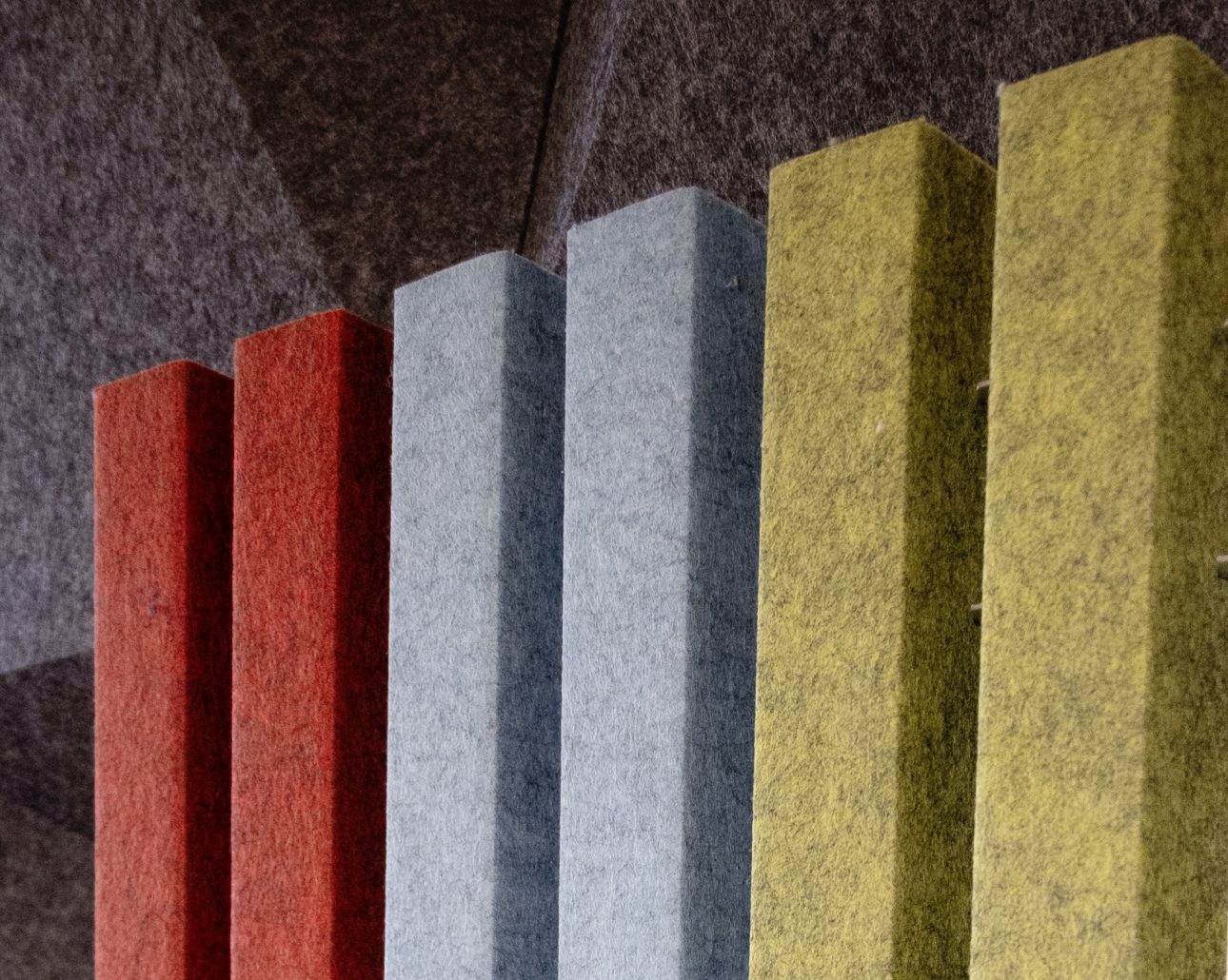

You have a selection of three vibrant effect colors to choose from: Red Rust, Copper Oxide, and Murky Moss. Each color adds a unique and lively touch to your Feltfon designs

03. STURDY & SOFT +

03. STURDY & SOFT

With a 9 mm thick felt with a high density of 2 kg/m², Feltfon ribs will survive on walls in all types of public spaces.

Turn our standards into something unique

Feltfon Vector is based on the Feltfon Linear rib dimensions, with the intersecting rib being 9mm higher. This subtle difference in height enhances the visual impact of your designs. By mixing dimensions and patterns freely, you can achieve an exciting and personal expression on your wall. The only limit is your creativity.

Dimensions

A wide range of standard dimensions and cut angles let you design without having to re-invent the wheel.

Spacing

Using the Gustafs Quick-Up Capax System we recommend spacings of 22 mm for Feltfon Vector. But 53 mm, 84 mm, 115 mm, 146 mm, 177 mm, 208 mm, etc is also available.

Wooden In-fill strips

The Gustafs wooden in-fill strips are designed to be placed within the spacing between the felt ribs. Gustafs wooden in-fill strips are available in the following dimensions (depth x width x length): 13 x 23 x 2400, 13 x 54 x 2400 and 13 x 85 x 2400 mm
Wood species: American Oak / Knotty Oak / Birch / Ash / Walnut / Wild Oak Smoked and Wild Oak Grey.

STANDARD

Standard dimensions

LENGTH: 2400 mm

DEPTH	WIDTHS
	40 mm	71 mm	102 mm
40 mm	x	x	x
60 mm	x	x	x
80 mm	x	x	x
100 mm	x	x	x
120 mm	x	x	x

The depth of the intersecting rib is DEPTH + 9mm

Customized rib dimensions

Length: 2400 mm
Minimum depth 30 mm
Maximum depth 555 mm in combination with 40 mm width
Minimum width 40 mm in combination with depth 555 mm.
Maximum width 598 mm in combination with 275 mm depth

Possible* maximum dimensions Depth x Width

555×40 mm
540×71 mm
525×102 mm
510×133 mm
495×164 mm
480×195 mm
460×226 mm
445×257 mm
430×288 mm
415×319 mm
400 x 350 mm
385 x 381 mm
370 x 412 mm
355 x 443 mm
340 x 474 mm
325 x 505 mm
305 x 536 mm
290 x 567 mm
275 x 598 mm

* Please note that some of these dimensions might not be suitable for wall use, depending on the room design.

SPACING

Wooden in-fill strips

Wooden Infill strips are available with the following veneers:

American Oak – Knotty Oak – Birch – Ash – Walnut – Wild Oak Smoked – Wild Oak Grey

Gustafs Linear Feltfon acoustics

Design something new with acoustic absorption coefficients up to the highest possible class A. A sound investment for the right kind of echo.

KNOWLEDGE HUB / ACOUSTICS

Acoustic absorption Feltfon Ribs, 40 x 40 mm, total depth 50mm

APPLICATION	SPACING	INSULATION	αw / NCR
Wall	22 mm	Acoustex 9 mm	0,55-D/ 0,80

Acoustic absorption Feltfon Ribs, 40 x 40 mm, total depth 95 mm

APPLICATION	SPACING	INSULATION	αw / NCR
Wall	22 mm	Acoustex 9 mm + 45mm mineral wool	0,95-A/ 0,95

Acoustic absorption Feltfon Ribs 40 x 40 mm, total depth 250 mm:

APPLICATION	SPACING	INSULATION	αw / NCR
Ceiling	22 mm	Acoustex 9 mm + air void 201 mm	1,00-A / 0,95
Ceiling	22 mm	air void 211 mm	0,60-C / 0,65

Fire safety

Rest easy knowing that Feltfon Linear is fire-safe without the need for impregnations, prioritizing safety without compromising style.

Reaction to fire – classifications Gustafs Feltfon

PRODUCT	REACTION TO FIRE
Feltfon Acoustex	B-s1,d0

With our low emission Acoustex, you can breathe out.
And everyone else can breathe in.

Free from fire-retardants, added formaldehyde or isocyanate binders, the Acoustex material in Feltfon Linear guarantees extremely low TVOC levels.

KNOWLEDGEHUB / EMISSIONS

Our Linear Feltfon comply with the following building certifications

	TVOC required	TVOC result	Formaldehyde required	Formaldehyde result
BREEAM	≤ 0,3 (mg/m³)	0,01 (mg/m³)	≤ 0,01 (mg/m³)	0,005 (mg/m³)
LEED none U.S.	≤ 1,0 (mg/m³)	0,01 (mg/m³)	< 0,06 (mg/m²h)	0,001 (mg/m²h)
BVB	< 0,2 (mg/m²h)	0,01 (mg/m²h)	< 0,05 (mg/m²h)	0,002 (mg/m²h)
M1	< 0,2 (mg/m²h)	0,01 (mg/m²h)	< 0,05 (mg/m²h)	0,001 (mg/m²h)
Blue Angel	≤ 0,3 (mg/m³)	0,01 (mg/m³)	≤ 0,06 (mg/m³)	0,005 (mg/m³)

More Building Certifications >>

Green Acoustics

Sustainability is a fundamental part of our core and our target with Feltfon was to create a sustainable product that could match the good environmental credentials of all our other products. Feltfon is made from recycled PET bottles and can be re-cycled multiple times. Feltfon is produced with 100% fossil free energy.

KNOWLEDGEHUB / SUSTAINABILITY

Details that make the difference

Linear Accessories are unique details including lights, hatches, grilles or other solutions to be combined with your wall or ceiling system. Our linear accessories complete your vision and simplify complicated solutions.

F-Line – Linear lightning for Gustafs Felton Linear

Integral linear lightning solution for Gustafs Linear Feltfon System. Available in two versions; with decoration light and mainly used on walls and with full strength room lightning for ceilings. All F-Line solutions use a modern micro prismatic dimming in combination with high-quality LED light sources.

Acoustex 9,0 – Sturdy acoustic felt for multiple use

Extremely form stable acoustic backing in the colours Wool Grey, Dark Grey or Anthracite with fire class B-s1,d0. Can be used as an individual sound absorber or integral as the acoustic insulation layer behind Gustafs Feltfon Linear or Gustafs demountable Linear Ceiling-CD system. Supplied in sheets in various formats. Contains minimum 50% recycled PET bottles and is approved by all international standards regarding in-door climate emissions. Thickness 9,0 mm.

Wooden Infill strip for Feltfon Linear

Combine the wool look of Feltfon with beautiful wooden in-fill strips. Available in the following dimensions (depth x width x length): 13 x 23 x 2400, 13 x 54 x 2400 and 13 x 85 x 2400 mm. The wooden in-fill strip leaves 10 mm of visible rib depth in combination with a 40 mm deep Feltfon rib, 30 mm visible depth in combination with a 60 mm deep rib, etc. Wood species: American Oak / Knotty Oak / Birch / Ash / Walnut / Wild Oak Smoked and Wild Oak Grey.

Feltfon Vector – design inspiration

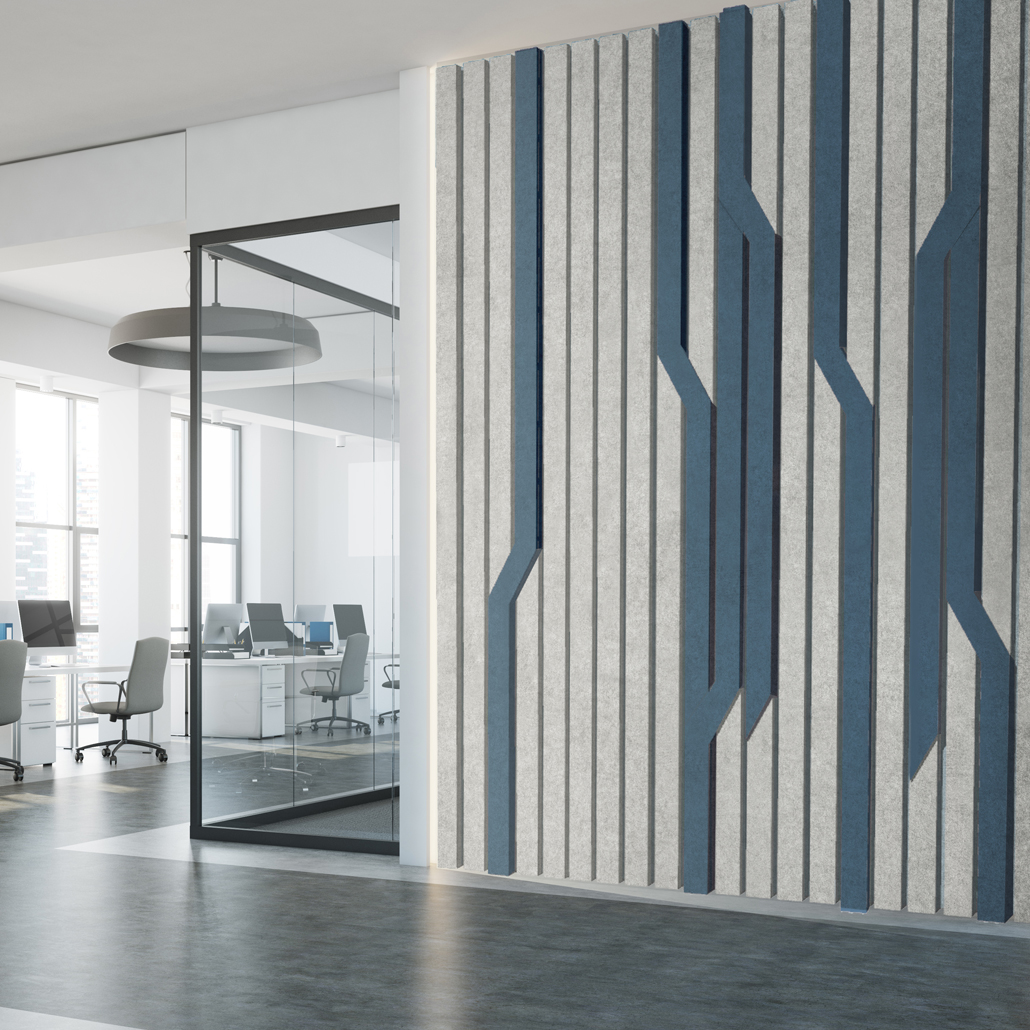

Feltfon Vector is based on Feltfon Linear. Combine different felt colours / dimensions and designs to create your own wall design.

Easy to install

Capax is our unique aluminium profile installation system that delivers a concealed, reliable, quick, and cost saving installation. The Quick-Up system is user-friendly and available for walls and ceilings. No tools are needed to assemble the interlocking components. Both the wall and ceiling system are demountable, ideal when access to the ancillary systems is required.

WALL INSTALLATION FELTFON LINEAR

CEILING INSTALLATION FELTFON LINEAR

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Feltfon Acoustex 9,0

Fire

Reaction to Fire: B-s1,d0

Acoustics

Configurations possible to achieve absorption class A, C or D. NRC: 0,60, 0,80, 0,95.

Environmental performance certification program for buildings

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions

Class E1 and M1. Approved for BREEAM International / LEED v4.1 / Svanen / Byggvarubedömningen / Sunda Hus / Blue Angel / AgBB / Belgian VOC / French VOC.

Declaration of Performance

DoP: Yes

EPD

Yes

FSC®

The wooden strips available vith FSC® (Forest Stewardship Council®) certified wood.
Gustafs FSC® certificate code is: SCS-COC-005137

And More

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Recycled content>50% Post Consumer

PRODUCT SHEET

Feltfon Linear | pdf

DOWNLOAD

CAD/BIM & SPECIFICATION TEXTS

CAD & specification text I zip

DOWNLOAD

ACOUSTIC VALUES

Gustafs products | pdf

DOWNLOAD

TECHNICAL DATA SHEET

Technical Data Sheet Feltfon | pdf

DOWNLOAD
