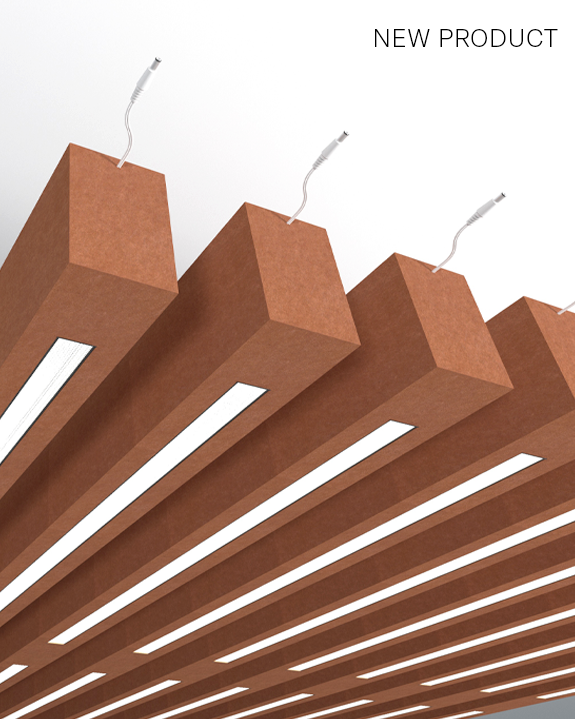

Installation F-Line R

FELTFON INTEGRATED LIGHTING FOR ACOUSTIC CEILINGS

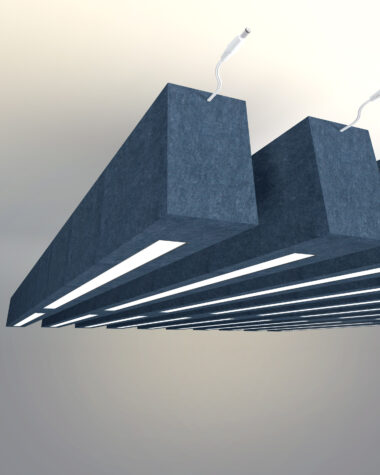

F-Line-R is a seamless lighting system designed for seamless integration into the Feltfon and Mix ceiling systems. By combining sound absorption and lighting in a single, linear element, F-Line R supports both acoustic comfort and architectural clarity. The luminaires are quick to install and align effortlessly with our acoustic Feltfon products, creating a clean, continuous ceiling design. With F-Line-R, lighting becomes an elegant part of the architecture — enhancing both the atmosphere and acoustic comfort of the space.

TYPE / SOLUTION

Lighting System

APPLICATION

Ceilings

INSTALLATION

CAPAX MIX

CONTACT

Installation

The F-LINE-R lamps fit and click directly into the Feltfon solutions, typically Baffles and Blox, no tools needed. Connect 8 lamps in series or parallel per driver unit.

Variations

Gustafs including Feltfon solutions come in many colours felt colours, various Baffle widths and depths and F-LINE-R fits up to 2 lamps per 2400 mm Baffle length.

Designed to fit

Depths, widths and spacings are fully designed to be in harmony with the whole Ceiling MIX system and all its compatible solutions.

F-LINE R

It’s a system

F-LINE-R LED lamps typically used in our Feltfon Baffles or longer Feltfon Blox models. For a full overview of available sizes for the receiving Feltfon elements, please click the Dimensions & Variants section.

DIMENSIONS

FACTS

Facts lighting

WIDTH: 40 mm (lens)
LENGTH: 1000 mm (lens)
LED:Neutral white 4000 K, CRI 80
LUMINARE OUTPUT: 2049 lm/m
DIFFUSER: 65° PMMA Microprism or PET Soft
BEAM ANGLE: 60° ±5°
DIMMABLE: YES
CONNECTION PARALLEL: 8 lamps per driver
CONNECTION IN SERIES: 8 lamps per driver
CE: Yes

INSPIRATION

Mix with other products

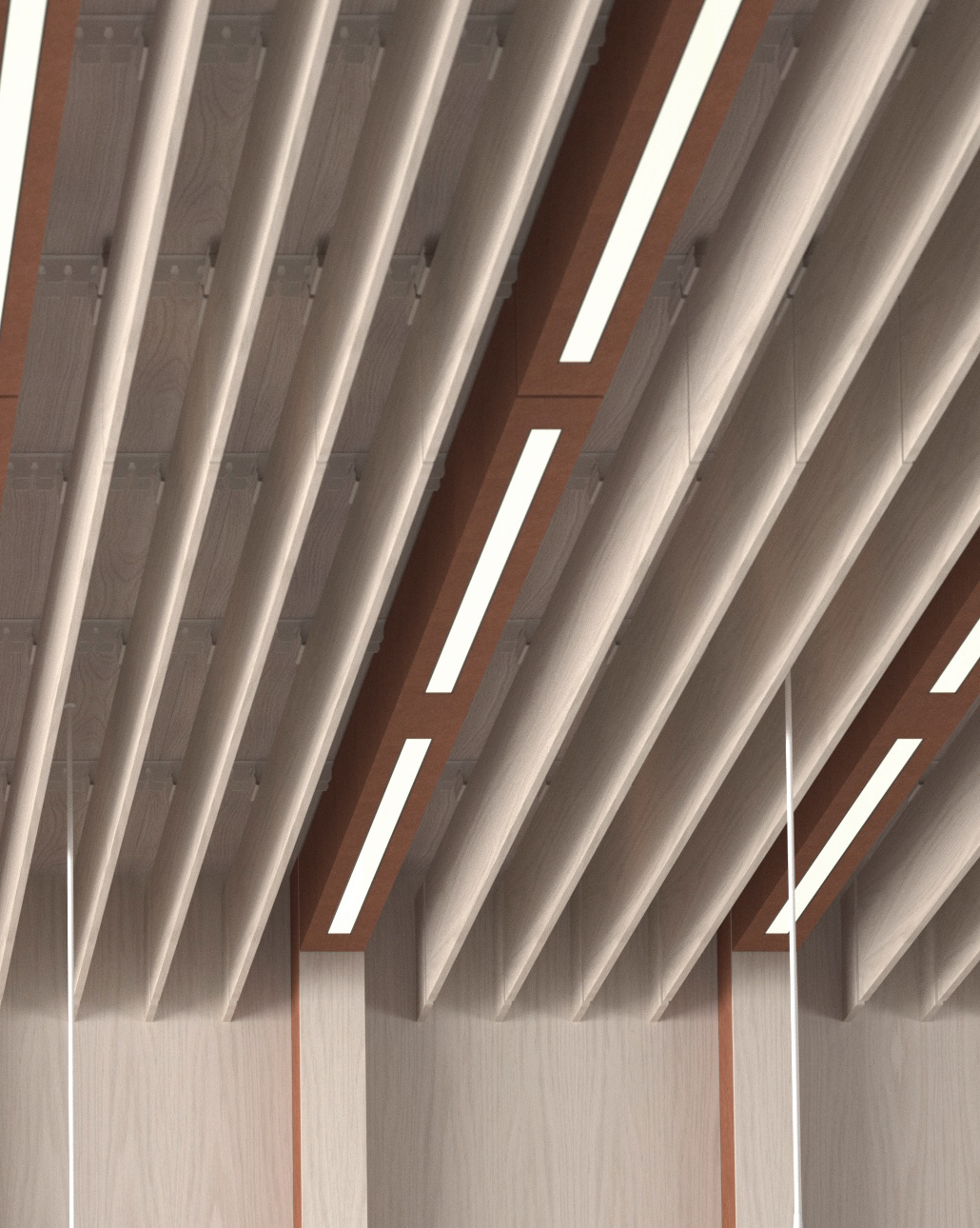

F-Line R can be combined with any of the Mix-products. Here is a combination of F-Line R in Sand colour and Blayde in Birch veneer.

Blayde

Combination possibilities for F-Line R

Products installed with the same Capax Mix System

Linear Rib R and S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-R product page >>

Linear Rib S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-S product page >>

Rib-E

To Rib-E Installation Page >>

Blayde

Feltfon range

All Linear + Blox and Baffles

To Feltfon products >>

F-Line C light

Dimensions

LENGHT

Baffle Lenght 1 luminaire: 1200 mm
Baffle Lenght 2 luminaires: 2400 mm

WIDTH

Baffle width: minimum 102 mm
Other wider widths available on request.
See Feltfon Baffle dimensions >>

DEPTHS

More on all our available Feltfon Baffle depths: Baffle dimensions >>

DIMENSIONS

F-Line R Dimensions

Feltfon dimensions

The receiving Feltfon solutions for F-LINE-R are typically our linear solutions, in smaller dimensions and with open ends called Linear Ribs and in larger dimensions and with closed ends called Baffles.

Depths receiving Feltfon Baffles

140 mm
240 mm
400 mm
500 mm

Depths receiving Feltfon Linear Ribs

45 mm
60 mm
80 mm
100 mm
120 mm

OPEN ENDINGS

CLOSED ENDINGS

ACOUSTEX / COLOURS

Acoustex 9

Acoustex 9 mm acoustic insulation comes in a wide range of colours, perfectly matched to our Feltfon and wood felt products – ensuring both visual harmony and acoustic performance.

APPLICATION: Wall, ceilings, wet rooms
FIRE CLASS: B-s1,d0
MATERIAL: 9 mm rPET felt

Feltfon Colours

Step by step guide

STEP 1

1. F-LINE-R 1000 × 40 mm and the Feltfon product of your choice.

STEP 2

2.
Flip up the two central legs of the Feltfon product to a perpendicular position.

STEP 3

3.
Press the two U-shaped tracks of the F-LINE-R luminaire onto the two perpendicular felt legs. Ensure that the lamp lens is flush with the bottom surface of the Feltfon product.

STEP 4

4. Fold the Feltfon product into its final shape.

STEP 5

5.
Attach the Feltfon product to the BASE-CF ceiling carrier. Connect the F-LINE-R to the power supply.

STEP 6

6.
The spacing depends on the choosen width and product combination.
Spacings: 22 mm, 53 mm, 84 mm, 115 mm. The numbers increase by 31 mm each time, so to find the next spacing, just add 31 mm to the last value.

Electrical components

LAMP

8 WAY HUB

POWER DRIVER

CORD

Extention cord 1000 mm long

Up to 8 lamps can be parallel connected with the 8 way hub.

Series-connected lamps

PARTS

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
H. 3263 Connector

1. F-Line R

SPACINGS & CC

Centre – to – Centre

Within the Capax Mix system, the centre-to-centre (cc) measurements are fixed at 62, 93, 124, 155, and 186 mm. The resulting visible spacing between profiles depends on the selected product width and configuration.

Downloads F-Line R

CAD

CAD F-Line R & MIX system | .zip

DOWNLOAD

TECHNICAL DATA SHEET

Technical Data Sheet F-Line R | .pdf

DOWNLOAD

ACOUSTIC VALUES

Gustafs products | .pdf

DOWNLOAD
