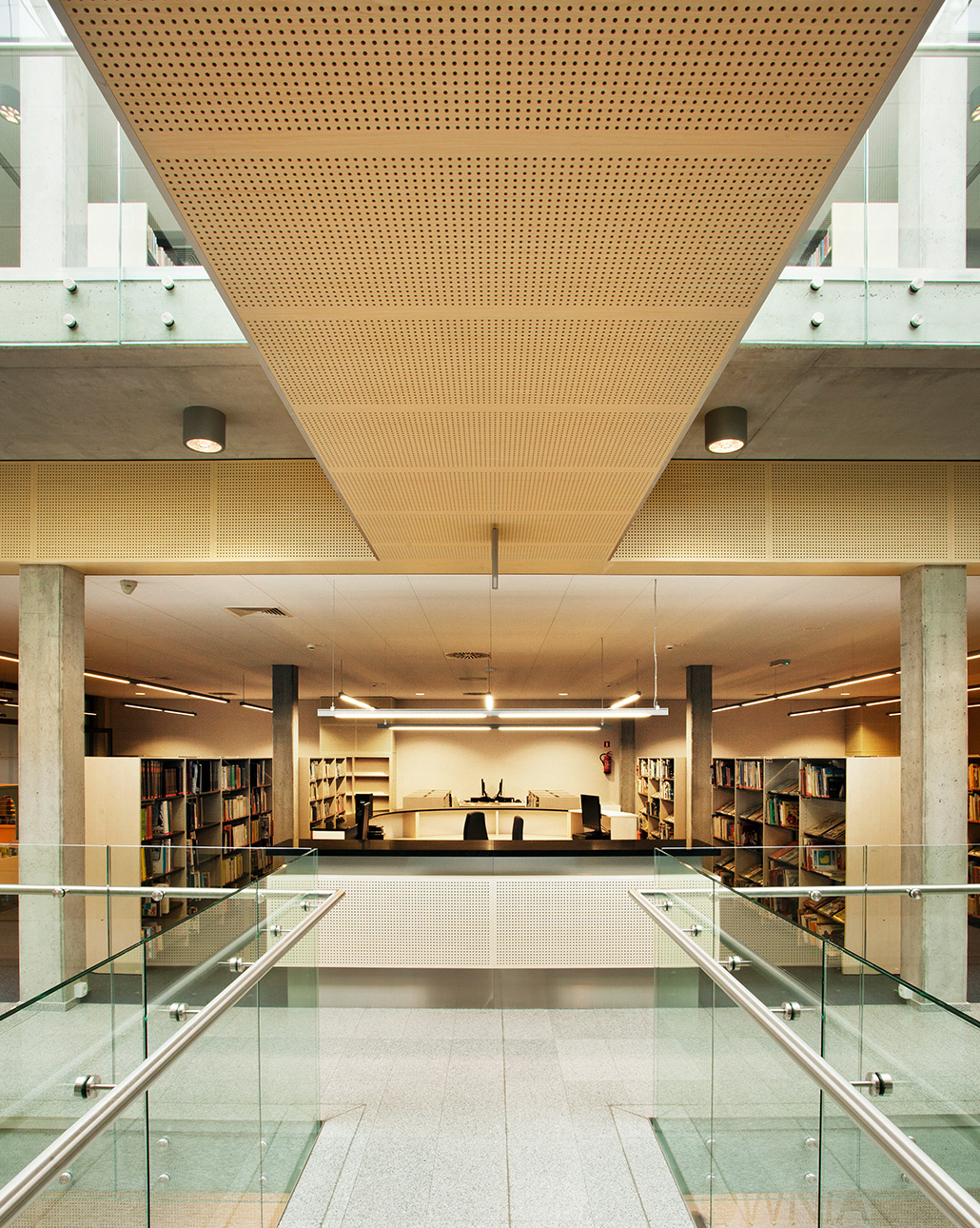

Panels with acoustic PH perforations are combining a simple and timeless pattern with a very good sound absorption. The remaining high-density surface of the panels will reflect sound for optimal speaking environments like requested in lecture halls and similar. We handle almost any wood specie and by varying the type of veneer cut, the pigmentation and ultimately the installation pattern, you can create one of nature´s strongest interior expressions. Our acoustic panels are installed with Gustafs praised Capax system for ease of use and a beautiful end-result.
This is an all-natural product combining high-quality timber veneer and a non-combustible, high-density fibre gypsum core.
Designed for use in public spaces, the finished acoustic panel and the total installation offer the highest possible fire class for wooden panels; A2-s1,d0.
Create an optimal sound environment by combining a selection of Gustafs perforation patterns, each with their own highly calibrated acoustic properties.
01 IT'S A SYSTEM +
01 IT'S A SYSTEM
Our panels are so much more than a cladding, they’re a complex installation system that enables your creative visions to become a reality.
02 SURFACE FINISH +
02 SURFACE FINISH
We offer several possibilities for you to create a unique expression with our panels. Experiment with surfaces and finishes to find the right look.
03 PANEL COMPOSITION +
03 PANEL COMPOSITION
Our panels are based on a fibre gypsum board with excellent qualities regarding dimensional stability, impact resistance, acoustics, fire-safety and emissions. The unique combination of materials results in a panel suited to the high demands in large public spaces.
Panels produced according to your drawings
Give our panels your personal touch by endless options regarding veneers, surfaces and laminates.
Choose between a light- or dark-fibre gypsum core. For instance, the acoustic pattern will be less noticeable when a dark core is combined with a dark veneer like walnut.
Our acoustic panels are so much more than cladding. Available in custom formats in lengths up to 3000 and widths up to 1200mm, the panels are installed with Gustafs adored easy-to-use Capax System to secure zero-spaced joints and perfect in-line patterns.
Our flexible inhouse production will realize your ideas and designs with almost no limitations. Surfaces and surface materials and surface finishes are 99% of what you see of our products so we decided to be leading experts in these fields.
Shape, dimensions, veneer, pigment, play with angles, bend surfaces, build optical illusions and create harmonious innovations. By experimenting freely, you can achieve an even more exciting and personal expression. We can assist you with your design wishes and help provide the panel solution with your own personal touch.
01. Dimensions wall
Wall panels are available in formats up to 2400 x 1200 mm, 3000 x 600mm.
Panels with lengths 2401-3000 mm have the maximum width of 600 mm.
Panel thickness 13,2 mm
02. Dimensions ceiling
1800 mm x 600 mm.
Bespoke Maximum: 3000 mm x 600 mm.
Panel thickness 13,2 mm
Panel weight, perforated PH8 13,4 kg/m²
01. MAXIMUM DIMENSIONS WALL PANEL
Widths: 300 mm – 600 mm
Max length: – 3000mm
Widths: 300 mm – 1200 mm
Max length: -2400 mm
02. DIMENSIONS CEILING PANEL
Widths increase by 50 mm : 300 mm, 350 mm,
400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Max recommended length: 1800mm
Max length bespoke: 3000 mm
Designed for eyes and ears
Every room is unique regarding its acoustic needs and PH8 offers a valuable acoustic recipe. These Helmholtz absorbers are typically used to reduce mid frequencies.
By covering a non-combustible fibre gypsum core with a thin layer of wood, we have created a natural and impregnation-free composition that does not contribute to fire. Thanks to this, all our cladding systems are 100 percent fire-rated, not just parts of the product, and meet all countries’ fire safety requirements.
With our low emission wood, you can breathe out.
And everyone else can breathe in.
The fibre gypsum core of Gustafs panels is regarded an inherently none-emitting source of VOCs, just like stone, ceramic, metals, glass and concrete. The panels are also completely impregnation-free and that is why our panels are naturally very low emitting, guaranteeing a healthy room air quality.
It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy, that our products are made from 98 percent natural materials and 94 percent recycled materials, and that all wood panels are free from retardants, added formaldehyde or isocyanate binders.
Gustafs panels contain an incredible 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material.
02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY
Producing in Sweden and surrounded by hydro power plants this is the main energy source for our production. The only other two are wind and solar power, adding up to a fantastic 100% renewable energy.
03 ENVIRONMANTAL DECLARATIONS +
03 ENVIRONMANTAL DECLARATIONS
Our products are environmentally declared, available with FSC® certified wood and have all documentation in place to comply with leading building assessments like BREEAM and LEED.
The 5 natural benefits of our Fibre Gypsum Core
Gustafs panels are produced with a high-density, reinforced fibre gypsum core having inherent properties regarding dimension stability, emissions, sustainability, fire safety and acoustics. These 5 fundamental demands in today’s modern building industry effectively eliminate most traditional wood-based alternatives. Use our dark fibre gypsum core on PH-perforations to make the holes and grooves less appearing in combination with dark veneers.
Unaffected by indoor climate changes, fibre gypsum doesn’t bulge, warp or swell – making large panels and zero-spaced joints perfectly viable. The end-result will be beautiful and remain so over the full lifetime.
Non-combustible and homogeneous by nature, fibre gypsum doesn’t need chemicals to achieve its fire rating, remaining safe even with acoustic perforations or when cut. The panel, with wood veneer and solid wood edging, is still 97% fibre gypsum, with a fire classification up to A2-s1,d0.
Acoustically, the use of wall cladding with a higher density is usually favourable compared to lighter materials. Fibre gypsum-based panels are heavier than wood-based wall cladding materials and sound waves will not make them vibrate or resonate.
Thanks to the cores high density and low thermal conductivity, the panels help to maintain room temperature, reducing the need for cooling or heating.
Fibre gypsum contains of 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material, very important for the certification of buildings.
Fibre Gypsum cores are extremely low emitting. One of the reasons is that they are produced without wood binders and automatically without added urea-formaldehyde or isocyanates. Interior Panels and Ribs, containing 97% Fibre Gypsum, will per definition have very low TVOC and formaldehyde emissions.
Challenge us by designing a panel we can’t produce.
In the safe hands of Gustafs experienced project leaders, craftsmen, and our flexible in-house production, you can design and create with almost no limitations. Every year we realize many unique projects including customized solutions.
The Chamber Hall – Nathan Milstein Hall, with blue waves is custom made for a smaller audience and strings, organ and piano performance. The bespoke curved panels are painted ash veneer in different blue shades and a gold laminate cover.
The Malmö Live project is one of Gustafs most prestigious projects ever. We have produced all wooden wall and ceiling claddings in the concert hall. The wall and ceiling panels consist of bespoke acoustic panels – boxes called mondrian elements.
The artwork “Exploration of Another World” is designed by the artist Katarina Klingspor Ekelund. A atrium wall has been mounted with Gustafs Non perforated panels in painted ash veneer, solid white paint and attached gold plated “territories” on the Gustafs panels.
Panel Accessories are unique details including lights, hatches, grilles or other solutions to be combined with your wall or ceiling system. Our panel accessories complete your vision and simplify complicated solutions.
For quick frequent access to the ancillary systems behind walls or suspend ceilings. With a concealed push open mechanism and hinges. Supplied in matching veneers or colours. Same fire safety class as the Gustafs panels.
A stylish corner profile compatible with Gustafs Capax installation system. Provides a durable corner protection in high trafficked areas of the interior. Comes in the wood specie of choice.
A sturdy corner profile compatible with Gustafs Capax installation system. Provides an extra durable corner protection in high trafficked areas of the interior like for example elevator entries. Natural anodized or painted in customized colours.
Varying types of overs and windowsills are needed in almost any interior fitting project. Gustafs will perfectly match the correct specifications and needs for your project as well as the surface and finish.
Plinths are the definite finish of a panel installation, not only regarding a nice design but also concerning the protecting function, for example against wet floor cleaning. Contact us and we will fulfil the specifications of your project.
Especially in ceilings functional openings are needed. Gustafs Panels can be supplied with prefabricated openings for varying use like lightning and speakers. Contact us and we will meet the specifications of your project.
Linear Lightning for panels
Integral LED illumination system for Gustafs Panels using installation profile Capax 3206 and a diffuser lens. The 12V plug and play system provides an easy and time saving installation. The result is a slim and brilliant light line in between the panels, either vertically or horizontally. The slim power supply system can be hidden behind the panels.
Grilles to cover heating and ventilation systems are a natural part of our cladding system. To make the grills sturdy they are made of solid wood and supported by a clever construction. As a one stop supplier, we will match the visual appearance of the grill with the rest of the interior for an optimal result.
Slatwall wall suspension system
Open a world of opportunities by integrating our Slat-Wall profile to your wall. The profile 3266 provides a visible open joint of 15 mm and can be used everywhere and directly in-between our panels. Slat-Wall is a universal World standard, and the number of accessories is infinite, like the suspensions of shelves, hooks, lamps, art, office tools, meeting room tools etc.
In-fill strips for panel joints
Give the joint between your panels a personal touch and make beautiful panel patterns. In-fill strips can be delivered in real wood veneer or coloured materials. Used with Gustafs Capax demountable Profile 3206. Vertically, horizontally or a combination of both.
Informative or creative signage by intarsia
Intarsia is an ancient decoration method where veneer is cut into different shapes and put back onto Gustafs panels like a puzzle. You can work with different wood species and vary the veneer directions. Today’s intarsia is cut 100% digitally for a perfect result and end-less design options. Intarsia is not suited for graphics spread over several panels. Intarsia designs do not affect the final fire classification.
Informative or creative signage by perforations
To express an image by perforations you first need to digitalize the graphics into dots. Our perforations can vary from 0,5 to 10 mm in diameter and in some extend different hole diameters can be combined in one and the same design. Perforated images can often reach over several panels but please contact us for the guidelines before you start to create. The perforations do not affect the final fire classification our panels.
Informative or creative signage by print
High resolution printed graphics can be applied to all Gustafs panel surfaces and can be combined with acoustic perforations of which the Nano perforations gives the best result. In-house controlled, the printed images can easily be spread over several panels and do not affect the final fire classifications of the panels. Your Print is always sealed and additionally protected by our triple UV coating system, giving it the professional long-lasting finish demanded by public rooms.
A versatile installation system with many benefits
Capax is the name of our inventive installation system. It makes installations quick, durable, concealed and ensures the perforation pattern is aligned across the wall or ceiling.
Work with seamless “zero spacing installations”, in lengths up to incredible 3000 and widths up to 1200 mm.
Panels 2400 mm or longer have maximum width 600 mm.
Thanks to the Capax installation system, the installation is seamless with no signs of visible joints, throughout the installation.
Avoid devalue engineering of your design
Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.
