Acoustic Panel PH10

ACOUSTIC PANELS FOR WALLS AND CEILINGS

Panels with acoustic PH perforations are combining a simple and timeless pattern with a very good sound absorption. The remaining high-density surface of the panels will reflect sound for optimal speaking environments like requested in lecture halls and similar. We handle almost any wood specie and by varying the type of veneer cut, the pigmentation and ultimately the installation pattern, you can create one of nature´s strongest interior expressions. Our acoustic panels are installed with Gustafs praised Capax system for ease of use and a beautiful end-result.

Fire Class

A2-s1,d0, ASTM-A

Acoustic class

C

Perforation

Round

APPLICATION

Ceilings, Wall

Material

This is an all-natural product combining high-quality timber veneer and a non-combustible, high-density fibre gypsum core.

Fire Safety

Designed for use in public spaces, the finished acoustic panel and the total installation offer the highest possible fire class for wooden panels; A2-s1,d0.

Acoustics

Create an optimal sound environment by combining a selection of Gustafs perforation patterns, each with their own highly calibrated acoustic properties.

01 IT'S A SYSTEM +
01 IT'S A SYSTEM

Our panels are so much more than a cladding, they’re a complex installation system that enables your creative visions to become a reality.

02 SURFACE FINISH +
02 SURFACE FINISH

We offer several possibilities for you to create a unique expression with our panels. Experiment with surfaces and finishes to find the right look.

03 PANEL COMPOSITION +
03 PANEL COMPOSITION

Our panels are based on a fibre gypsum board with excellent qualities regarding dimensional stability, impact resistance, acoustics, fire-safety and emissions. The unique combination of materials results in a panel suited to the high demands in large public spaces.

Panels produced according to your drawings

Surfaces

Give our panels your personal touch by endless options regarding veneers, surfaces and laminates.

Core colour

Choose between a light- or dark-fibre gypsum core. For instance, the acoustic pattern will be less noticeable when a dark core is combined with a dark veneer like walnut.

Installation

Our acoustic panels are so much more than cladding. Available in custom formats in lengths up to 3000 and widths up to 1200mm, the panels are installed with Gustafs adored easy-to-use Capax System to secure zero-spaced joints and perfect in-line patterns.

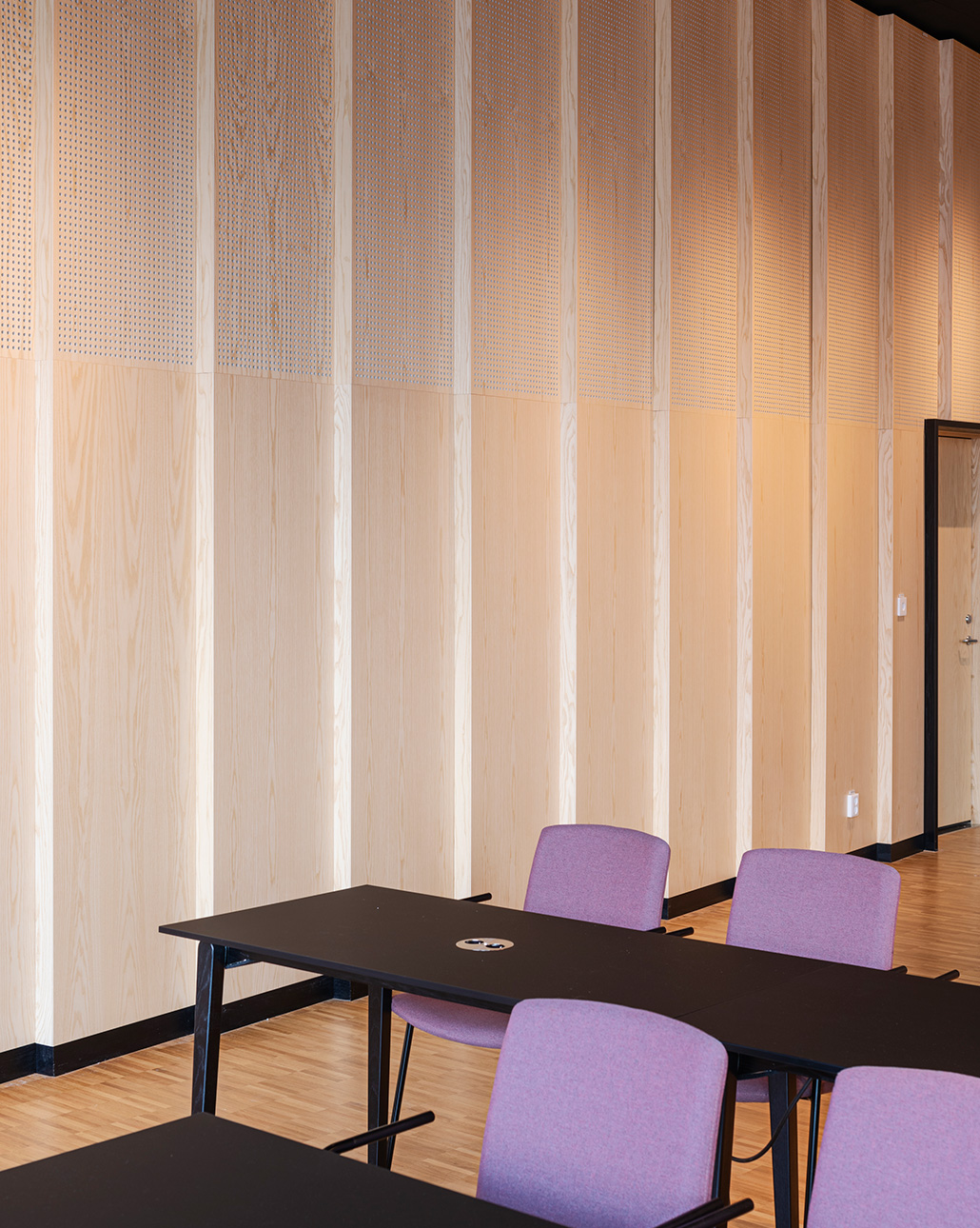

PROJECT USING PH10
Argus Falkenberg



Our unique production for your unique designs

Our flexible inhouse production will realize your ideas and designs with almost no limitations. Surfaces and surface materials and surface finishes are 99% of what you see of our products so we decided to be leading experts in these fields.

KNOWLEDGE HUB / SURFACES

01 SURFACE MATERIALS +
01 SURFACE MATERIALS

Traditionaly we love wooden surfaces. Our veneer masters handpick the finest sheets for the surface of the panels.
We also provide solid painted or extra durable laminated surfaces.

Explore our veneers

02 SURFACE FINISH +
02 SURFACE FINISH

The veneer can be treated with the finish you’re looking for. Pigmentation, painted, gloss or why not give your veneer a nice, oiled look.

03 PRINTED +
03 PRINTED

Gustafs Prints give you a truly freedom in design, with the option to spread your graphics over many panels and by that over extremely large wall or ceiling areas.

02 Finish treatments veneer

LACQUERS & GLOSS +
LACQUERS & GLOSS

Our lacquer is a multi-layer UV-cured process which is available in a range of gloss rates, from super matt to high gloss.

PIGMENTED LACQUERS +
PIGMENTED LACQUERS

To change the colour tone of a wooden veneer, a pigment is used in our multi-stage UV-Lacquering process. The options are endless, from solid to transparent in any colour.

01  Surface option – Wood veneers

Nature veneers

Nature veneers will have the lively variations and characteristic expression associated with each wood species.
Learn more about how veneers can be cut and joint >>

ASH

Ash veneer Nature

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 56,3

ROTARY CUT BIRCH

rotary cut birch veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 61,3

BIRCH

Birch veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 56,2

MAPLE

Maple veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value:55,4

BEECH

Beech veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 38,5

OAK

Oak veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 32,6

ELM

Elm veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 30,5

WALNUT

walnut veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 21,6

SAPELE

Sapele

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value:20,5

AMERICAN PINE

American pine veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 47,8

PEAR

Pear veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 29,2

CHERRY

Cherry veneer

VENEER TYPE: GUSTAFS NATURE
LRV: Light reflection value: 24,2



Gemeni veneers

Gemini veneers offer an even colour tone and structure to achieve a more harmonious appearance.
Learn more about how veneers can be cut and joint >>



PALE MAPLE / GEMINI

Gemini veneer pale maple

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value: 76,7

SANDY MAPLE / GEMINI

Gemini veneer sandy maple

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value: 65,8

WAVY MAPLE / GEMINI

Gemini veneer wavy maple

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value: 75,8

BIRDS EYE MAPLE / GEMINI

Gemini veneer Birds eye maple

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value:68,0

BIRCH / GEMINI

Gemini veneer Birch

VENEER TYPE: GUSTAFS GEMINI
LRV:Light reflection value:65,8

ASH / GEMINI

Gemini veneer wavy maple

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value:75,8

WALNUT / GEMINI

Gemini veneer Walnut

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value:20,3

WENGE / GEMINI

Gemini veneer Wenge

VENEER TYPE: GUSTAFS GEMINI
LRV:Light reflection value:8,9

OAK / GEMINI

Gemini veneer Oak

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value:55,4

CHERRY / GEMINI

Gemini veneer Cherry

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value:28,3

TEAK / GEMINI

Gemini veneer Teak

VENEER TYPE: GUSTAFS GEMINI
LRV:Light reflection value:23,5

MAHOGANY / GEMINI

Gemini veneer Mahogany

VENEER TYPE: GUSTAFS GEMINI
LRV: Light reflection value:16,5

Turn our standards into something unique

Shape, dimensions, veneer, pigment, play with angles, bend surfaces, build optical illusions and create harmonious innovations. By experimenting freely, you can achieve an even more exciting and personal expression. We can assist you with your design wishes and help provide the panel solution with your own personal touch.

01. Dimensions wall

Wall panels are available in formats up to 2400 x 1200 mm, 3000 x 600mm.

Panels with lengths 2401-3000 mm have the maximum width of 600 mm.

Panel thickness 13,2 mm

02. Dimensions ceiling

Recommended Maximum:
1800 mm x 600 mm.

Bespoke Maximum: 3000 mm x 600 mm.

Panel thickness 13,2 mm

03. Weight

Panel weight, perforated PH10 12,5 kg/m²

01. MAXIMUM DIMENSIONS WALL PANEL

Widths: 300 mm – 600 mm
Max length: – 3000mm

Widths: 300 mm – 1200 mm
Max length: -2400 mm

02. DIMENSIONS CEILING PANEL

Widths increase by 50 mm : 300 mm, 350 mm,
400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Max recommended length: 1800mm

Max length bespoke: 3000 mm

Designed for eyes and ears

Every room is unique regarding its acoustic needs and Gustafs Stripe offers a valuable acoustic recipe. These Helmholtz absorbers are typically used to reduce mid frequencies.



Acoustic Values Panel PH10
APPLICATION OPEN AREA INSULATION αw / NCR
Wall 18% 45 mm + 30 mm void 0,70 – C / 0,85
Ceiling 18% 45 mm + 200 mm void 0,75 – C / 0,90
MEASUREMENTS ACOUSTIC PATTERN
Acoustic pattern PH10

Perforation holes Ø = 10 mm
A = 20 mm
E = 20 mm



Gustafs Products Acoustic Absorption Values / Download
ACOUSTIC VALUES
Acoustic properties | .pdf

Our unique fire protection

By covering a non-combustible fibre gypsum core with a thin layer of wood, we have created a natural and impregnation-free composition that does not contribute to fire. Thanks to this, all our cladding systems are 100 percent fire-rated, not just parts of the product, and meet all countries’ fire safety requirements.



Reaction to Fire Classification Panel PH10
PRODUCT CORE MATERIAL LACQUERED VENEER PRINTED VENEER HPL SURFACE
Acoustic Panel PH10 High Density Fibre Gypsum A2-s1,d0 A2-s1,d0 B-s1,d0
Acoustic Panel PH10 High Density Fibre Gypsum ASTM-A ASTM-A



FIRE SAFETY +
FIRE SAFETY

The core in our panels makes our fire safety unique. The rest is superficial.

KNOWLEDGE HUB / CORE

Download
FIRE CLASSIFICATIONS
Reaction to fire | .pdf

With our low emission wood, you can breathe out.
And everyone else can breathe in.

The fibre gypsum core of Gustafs panels is regarded an inherently none-emitting source of VOCs, just like stone, ceramic, metals, glass and concrete. The panels are also completely impregnation-free and that is why our panels are naturally very low emitting, guaranteeing a healthy room air quality.



Our panels comply with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 0,3 (mg/m³) 0,021 (mg/m³) ≤ 0,06 (mg/m³) 0,016 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,021 (mg/m³) < 0,06 (mg/m²h) 0,017 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,023 (mg/m²h) < 0,05 (mg/m²h) 0,017 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,023 (mg/m²h) < 0,05 (mg/m²h) 0,017 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,021 (mg/m³) ≤ 0,06 (mg/m³) 0,016 (mg/m³)



More Building Certifications >>



EMISSIONS +
EMISSIONS
No added formaldehyde

The glues and lacquers used in our solutions are always certified NAF systems – No Added urea Formaldehyde.

KNOWLEDGE HUB / EMISSIONS

A zero footprint is our target

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy, that our products are made from 98 percent natural materials and 94 percent recycled materials, and that all wood panels are free from retardants, added formaldehyde or isocyanate binders.

01 RECYCLED MATERIALS +
01 RECYCLED MATERIALS

Gustafs panels contain an incredible 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material.

02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY

Producing in Sweden and surrounded by hydro power plants this is the main energy source for our production. The only other two are wind and solar power, adding up to a fantastic 100% renewable energy.

03 ENVIRONMANTAL DECLARATIONS +
03 ENVIRONMANTAL DECLARATIONS

Our products are environmentally declared, available with FSC® certified wood and have all documentation in place to comply with leading building assessments like BREEAM and LEED.

The 5 natural benefits of our Fibre Gypsum Core

Gustafs panels are produced with a high-density, reinforced fibre gypsum core having inherent properties regarding dimension stability, emissions, sustainability, fire safety and acoustics. These 5 fundamental demands in today’s modern building industry effectively eliminate most traditional wood-based alternatives. Use our dark fibre gypsum core on PH-perforations to make the holes and grooves less appearing in combination with dark veneers.

KNOWLEDGE HUB / CORE

Stability

Unaffected by indoor climate changes, fibre gypsum doesn’t bulge, warp or swell – making large panels and zero-spaced joints perfectly viable. The end-result will be beautiful and remain so over the full lifetime.

Fire Safety

Non-combustible and homogeneous by nature, fibre gypsum doesn’t need chemicals to achieve its fire rating, remaining safe even with acoustic perforations or when cut. The panel, with wood veneer and solid wood edging, is still 97% fibre gypsum, with a fire classification up to A2-s1,d0.

Acoustics

Acoustically, the use of wall cladding with a higher density is usually favourable compared to lighter materials. Fibre gypsum-based panels are heavier than wood-based wall cladding materials and sound waves will not make them vibrate or resonate.

Sustainability

Thanks to the cores high density and low thermal conductivity, the panels help to maintain room temperature, reducing the need for cooling or heating.
Fibre gypsum contains of 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material, very important for the certification of buildings.

Emissions

Fibre Gypsum cores are extremely low emitting. One of the reasons is that they are produced without wood binders and automatically without added urea-formaldehyde or isocyanates. Interior Panels and Ribs, containing 97% Fibre Gypsum, will per definition have very low TVOC and formaldehyde emissions.

Challenge us by designing a panel we can’t produce.

In the safe hands of Gustafs experienced project leaders, craftsmen, and our flexible in-house production, you can design and create with almost no limitations. Every year we realize many unique projects including customized solutions.

OUR PROCESS

01 SHAPES & DIMENSIONS +
01 SHAPES & DIMENSIONS

The flexibility in our production allows you to create with almost no restrictions. Panels should be made to fit the room not the other way around.

02 CNC MILLING +
02 CNC MILLING

As on all our panels, you can enhance the PH panels with milled patterns. Only your creativity sets the limit.

Milled bird on RP8 Barcode panel with dark core and oak veneer.

03 CURVED INSTALLATIONS +
03 CURVED INSTALLATIONS

We encourage designers to create something unique with our products. Design curved and we will support with our carpentry heritage and modern production technologies.

Some of our bespoke Projects

Qatar Convention Center

Qatar Convention and Conference Center was conceived and designed by Arata Isozaki in association with RHWL architects to be the largest and most adaptable meeting place in the gulf region.

Explore the project >>

Royal College of Music

The Chamber Hall – Nathan Milstein Hall, with blue waves is custom made for a smaller audience and strings, organ and piano performance. The bespoke curved panels are painted ash veneer in different blue shades and a gold laminate cover.

Explore the project >>

Malmö Live

The Malmö Live project is one of Gustafs most prestigious projects ever. We have produced all wooden wall and ceiling claddings in the concert hall. The wall and ceiling panels consist of bespoke acoustic panels – boxes called mondrian elements.

Explore the project >>

Exploration of Another World

The artwork “Exploration of Another World” is designed by the artist Katarina Klingspor Ekelund. A atrium wall has been mounted with Gustafs Non perforated panels in painted ash veneer, solid white paint and attached gold plated “territories” on the Gustafs panels.

Explore the project >>

CONTACT OUR PROFESSIONAL SUPPORT

Details that make the difference

Panel Accessories are unique details including lights, hatches, grilles or other solutions to be combined with your wall or ceiling system. Our panel accessories complete your vision and simplify complicated solutions.

Hatches

For quick frequent access to the ancillary systems behind walls or suspend ceilings. With a concealed push open mechanism and hinges. Supplied in matching veneers or colours. Same fire safety class as the Gustafs panels.

Corner profile

A stylish corner profile compatible with Gustafs Capax installation system. Provides a durable corner protection in high trafficked areas of the interior. Comes in the wood specie of choice.

Corner protection

A sturdy corner profile compatible with Gustafs Capax installation system. Provides an extra durable corner protection in high trafficked areas of the interior like for example elevator entries. Natural anodized or painted in customized colours.

Cover

Varying types of overs and windowsills are needed in almost any interior fitting project. Gustafs will perfectly match the correct specifications and needs for your project as well as the surface and finish.

Plinth

Plinths are the definite finish of a panel installation, not only regarding a nice design but also concerning the protecting function, for example against wet floor cleaning. Contact us and we will fulfil the specifications of your project.

Openings

Especially in ceilings functional openings are needed. Gustafs Panels can be supplied with prefabricated openings for varying use like lightning and speakers. Contact us and we will meet the specifications of your project.

Linear Lightning for panels

Integral LED illumination system for Gustafs Panels using installation profile Capax 3206 and a diffuser lens. The 12V plug and play system provides an easy and time saving installation. The result is a slim and brilliant light line in between the panels, either vertically or horizontally. The slim power supply system can be hidden behind the panels.

Opening Grilles

Grilles to cover heating and ventilation systems are a natural part of our cladding system. To make the grills sturdy they are made of solid wood and supported by a clever construction. As a one stop supplier, we will match the visual appearance of the grill with the rest of the interior for an optimal result.

Slatwall wall suspension system

Open a world of opportunities by integrating our Slat-Wall profile to your wall. The profile 3266 provides a visible open joint of 15 mm and can be used everywhere and directly in-between our panels. Slat-Wall is a universal World standard, and the number of accessories is infinite, like the suspensions of shelves, hooks, lamps, art, office tools, meeting room tools etc.

In-fill strips for panel joints

Give the joint between your panels a personal touch and make beautiful panel patterns. In-fill strips can be delivered in real wood veneer or coloured materials. Used with Gustafs Capax demountable Profile 3206. Vertically, horizontally or a combination of both.

Informative or creative signage by intarsia

Intarsia is an ancient decoration method where veneer is cut into different shapes and put back onto Gustafs panels like a puzzle. You can work with different wood species and vary the veneer directions. Today’s intarsia is cut 100% digitally for a perfect result and end-less design options. Intarsia is not suited for graphics spread over several panels. Intarsia designs do not affect the final fire classification.

Informative or creative signage by perforations

To express an image by perforations you first need to digitalize the graphics into dots. Our perforations can vary from 0,5 to 10 mm in diameter and in some extend different hole diameters can be combined in one and the same design. Perforated images can often reach over several panels but please contact us for the guidelines before you start to create. The perforations do not affect the final fire classification our panels.

Informative or creative signage by print

High resolution printed graphics can be applied to all Gustafs panel surfaces and can be combined with acoustic perforations of which the Nano perforations gives the best result. In-house controlled, the printed images can easily be spread over several panels and do not affect the final fire classifications of the panels. Your Print is always sealed and additionally protected by our triple UV coating system, giving it the professional long-lasting finish demanded by public rooms.

A versatile installation system with many benefits

Capax is the name of our inventive installation system. It makes installations quick, durable, concealed and ensures the perforation pattern is aligned across the wall or ceiling.

Wall installation

Work with seamless “zero spacing installations”, in lengths up to incredible 3000 and widths up to 1200 mm.
Panels 2400 mm or longer have maximum width 600 mm.

WALL INSTALLATION

Ceiling installation

Concealed and fully demountable for frequent access to technical installations. Formats up to 3000 x 600 mm.

CEILING INSTALLATION

CONCEALED JOINTS +
CONCEALED JOINTS
Seamless installation

Thanks to the Capax suspended ceiling system, the installation is seamless with no signs of visible joints, throughout the installation.

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Acoustic Panel PH10

Fire
+

Reaction to Fire: A2-s1,d0
Resistance to Fire: K1-10/K2-10

Acoustics
+

Acoustics absorption: C

Environmental performance certification program for buildings
+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions
+

E1
M1
Blue Angel
AgBB
French VOC
Belgian VOC

Declaration of Performance
+

Yes

EPD
+

Yes

FSC®
+

FSC® (Forest Stewardship Council®)
Gustafs FSC® certificate code is: SCS-COC-005137

READ MORE KNOWLEDGE HUB FSC® >>

And more
+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Country of origin: Sweden
Hygien cleaning: 70% Alc.
Recycled content: 94%
Recycled Post consumer: 17%

Download files for Acoustic Panel PH10

We’ve tried to make your working day as easy as possible. Here we have gathered all the documents for the product, download what you need.

DWG & BIM files

Our CAD and BIM files are downloaded through a link sent to your email address. In that ZIP file you will also find our specification texts.

CAD/BIM & SPECIFICATION TEXTS
.zip
PRODUCT SHEET RP8-C10
Wall installations | .pdf
Ceiling installations | .pdf
ACOUSTIC VALUES
Acoustic properties | .pdf
FIRE CLASSIFICATIONS
Reaction to Fire | .pdf
Resistance to Fire | .pdf
TECHNICAL DATA SHEET
Veneer surface | .pdf
Laminate surface | .pdf
Painted surface | .pdf
Generic selectors
Exact matches only
Search in title
Search in content
This site is registered on wpml.org as a development site.
