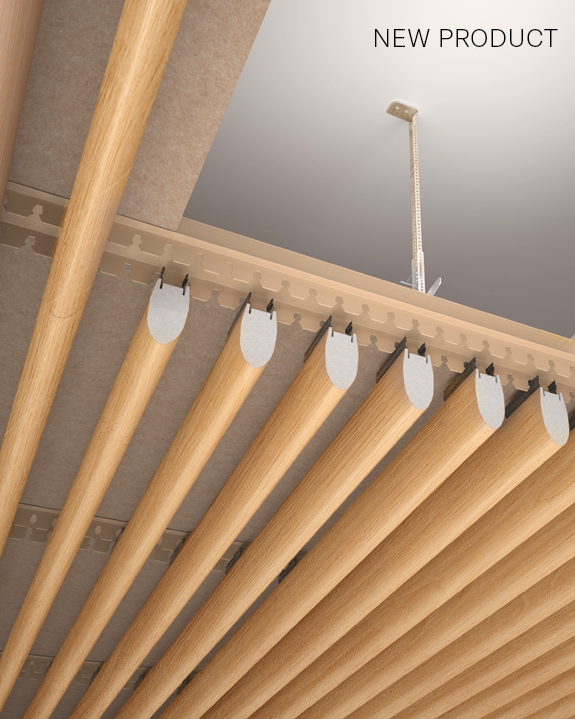

Linear Rib-E Installation – Ceiling

The Capax MIX installation system for Linear RIB-E is a user-friendly aluminium grid, offering installation reliability and a perfect visual result.

Compatible products: Linear Rib-R, Rib-S, Blayde, F-Line and Linear Feltfon range + Feltfon Blox.

APPLICATION

Ceilings

TYPE / SOLUTION

Linear Mix System

INSTALLATION

CAPAX MIX

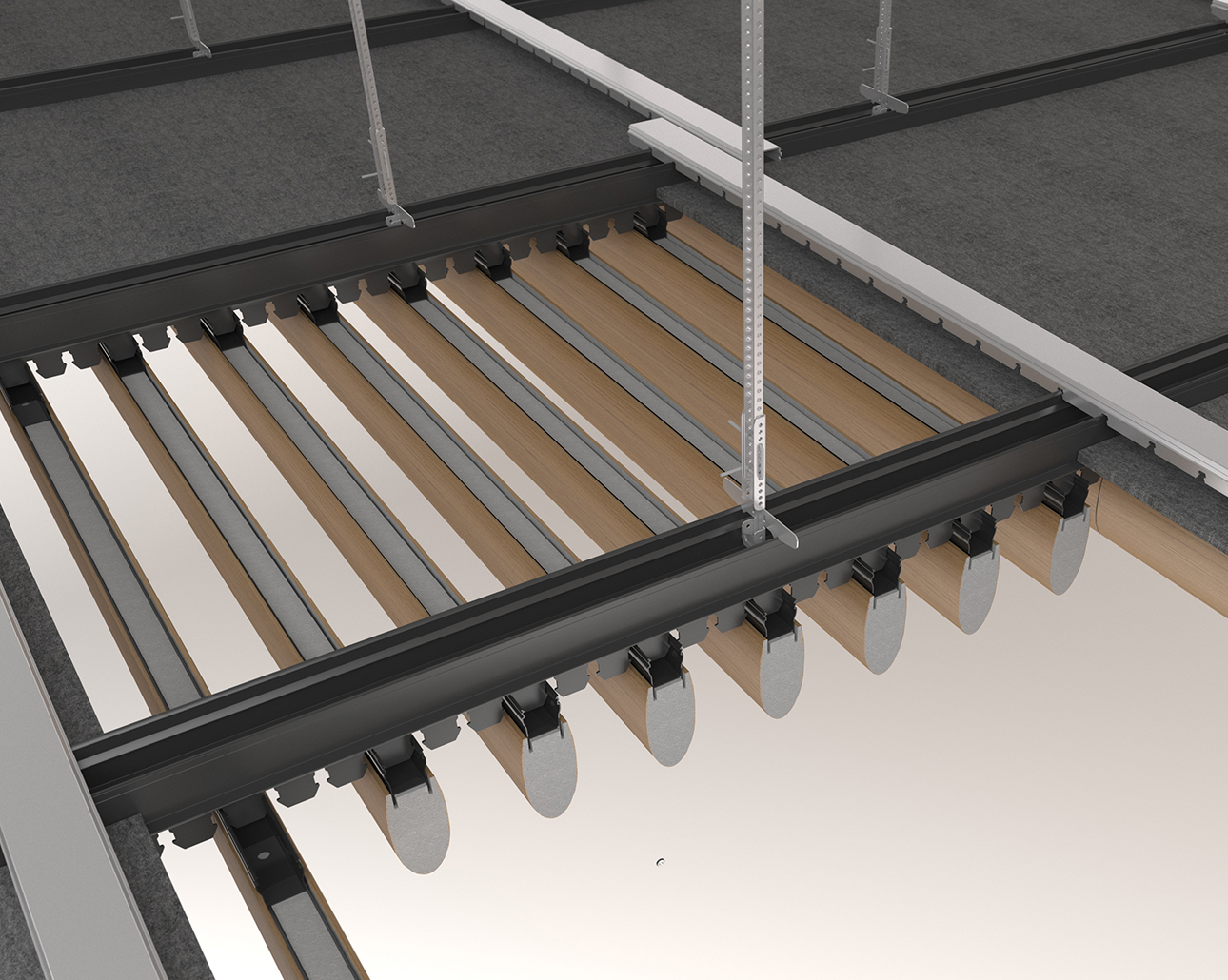

Capax System Rib-E – ceiling

01 EASY TO INSTALL +
01 EASY TO INSTALL

Easy to install in different spacings and combine with other Gustafs Linear products in the Capax Mix system.

IN-LINE JOINTS +
IN-LINE JOINTS

The ends of two ribs can be fixed on the same BASE-CF profile and in the same fixation hole. The rib-ends will be fully fixated for perfect looking and over time lasting connections, still completely demountable.

Combination possibilities

With the Capax MIX System, you can freely combine different Gustafs products — from veneered Linear Ribs and Blayde, Baffles to soft Feltfon Ribs, DNA etc. Mix widths, depths, materials, and colours to design unique linear expressions with perfect alignment. The system also integrates seamlessly with F-line LED profiles, allowing you to blend light, texture, and acoustics into one unified ceiling design.

Linear Rib R and S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-R product page >>

Linear Rib S

Including Rib Narrow 22 mm wide and Rib HD 74 mm depth.

To Rib-S product page >>

Feltfon range

To Feltfon products >>

F-Line R light

Read more about F-line R >>

F-Line C light

Read more about F-Line C >>

Blayde

Read more about Blayde >>

Customised installations

These instructions refer to our standard installation. For other solutions such as curved ceilings, closures and door liners, contact our support.

CONTACT SUPPORT

ACOUSTEX 9

Acoustex® 9

Acoustex 9 mm acoustic insulation comes in a wide range of colours, perfectly matched to our Feltfon and wood felt products – ensuring both visual harmony and acoustic performance.

APPLICATION: Wall, ceilings, wet rooms
FIRE CLASS: B-s1,d0
MATERIAL: 9 mm rPET felt

ACOUSTEX 15

Acoustex 15

Acoustex 15mm acoustic insulation is available in the following colours

DIMENSIONS (mm): 1194 x 594, 594 x 594

Colour Colour code LRV
Jet Black NCS S 8500-N 3
Rock Grey NCS S 7502-B 8
Smoke Grey NCS S 2000-N 58
Linen NCS S 1005-R80B 75
Desert Tan NCS S 4005-Y50R 30
Cream Latte NCS S 2005-Y40R 54
Mouse Grey NCS S 4000-N 33
Pale Denim NCS S 3020-B 35
Ivory NCS S 1510-Y60R 57
Moss NCS S 3010-G10Y 32
Damask NCS S 3040-Y90R 20
Buff NCS S 1505-Y30R 68
Khaki NCS S 2020-Y20R 31
Amber NCS S 2050-Y10R 53

Before you start the installation

Plan

Select Ribs on colour shade and plan your ceiling installation, we recommend mixing varying shades randomly.

Room temperature

The room temperature should be between 18-50 C°.

Humidity

The air humidity should be between 25-60%. The humidity in the under laying construction (concrete) should not be higher than 15%.



Step by step guide, using 2400 mm long Linear Rib-E

STEP 1

1. Suspend the Nonius ceiling hangers from the ceiling. Plan the positioning of the Nonius according to steps 3 and 4. ↓

STEP 2

2. Use the adapter NONIUS-CD to connect the BASE-CF profile to the ceiling hangers.



nonius-cd hanger

STEP 3

3. Suspend the BASE-CF profiles with a repeated interval of 600 mm, measured from the centrums of the profiles (cc).

A = 600 mm

Suspended Base-CF

STEP 4

4. Measured along the length of the BASE-CF, the connection to the ceiling must be made every 600 mm .

B = 600 mm

STEP 5

5. Level the height using a laser and secure the hanger with the Nonius-CD with the locking pin.

STEP 6

6. Secure the position of the NONIUS-CD by bending the 2 wings and the long leg of the locking pin.

STEP 7

7. When needed, connect the BASE-CF in-line with profile 3263 and assure the cc distance between the fixation holes remains constant. Increase the friction between the engaging components by slightly twisting one corner inwards, on each BASE-CF.


Base-CF in-line connection using Capax profile 3263

STEP 8

8. Snap the distance profile 3262 perpendicular to the BASE-CF every 1200 mm.

STEP 9

9. Two distance profiles Capax 3262 will partially run parallel, where mounted on the same BASE-CF.

STEP 10

10. Install Acoustex-15 insulation or Acoustex-9 felt onto the ”T” section of the BASE-CF.

STEP 11 a. Rib-E 22x47 mm

11 a. Rib-E 22×47 mm
Attach U-FIX-CF-80 to the concealed track of the Rib-E.

Staple lenght: 10 mm

Gauge: 18

STEP 11 b. Rib-E 22x47 mm

11 b. Rib-E 22×47 mm
Use 5 pcs of U-FIX-CF-80 per 2400 mm length with a maximum cc interval of 600 mm.

A = 600 ± 10 mm

STEP 11 a. Rib-E 40x80 mm

11 a. Rib-E 40×80 mm
Attach U-FIX-CF-80 to the concealed track of the Rib-E with specific screws supplied by Gustafs.

STEP 11 b. Rib-E 40x80 mm

11 b. Rib-E 40×80 mm
Use 5 pcs of U-FIX-CF-80 per 2400 mm length with a maximum cc interval of 600 mm.

A = 600 ± 10 mm

STEP 12

12. Attach the Ribs to the BASE-CF carrier, starting in position A.

You must hear 3 ”clicks” to finalize the attachment.

STEP 13 Rib-E 22x47 mm

13.Rib-E 22×47 mm The spacing can be increased in increments of 31 mm.

Approved spacings Rib-E Width 22mm, depth 47 mm

40, 102, 133, 164 mm

STEP 13. Rib-E 40x80 mm

13. Rib-E 40×80 mm The spacing can be increased in increments of 31 mm.

Approved spacings Rib-E Width 40mm, depth 80 mm

53, 84, 115, 146, 167 mm

STEP 14

14.  The in-line connection of 2 Linear Rib-E should be secured by a BASE-CF profile.

STEP 15

15. The end of a Rib-E must not protrude unsupported more than max 200 mm.

Optionally, ad Acoustex-9, in the colour of choice, inside the BASE-CF.

RIB E 40 MM WIDE

Rib-E 40 mm Wide

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
F. Rib-E
G. U-FIX-CF-80
H. 3263 Connector
I. Acoustex 9 mm

1. Rib- E 40

RIB-E 22MM WIDE

Rib-E 22 mm Wide

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
F. Rib-E
H. 3263 Connector
I. Acoustex 9 mm

1. Rib- E 22

Components Rib-E

Base-CF


Base profile lenght: 3000 mm.

Nonius-CD

nonius-cd hanger for gustafs feltfon
Nonius-CD connecting Base-CD with Nonius hanger.

Capax 3265 Connector


Connector for to Base-CF lenght: 300 mm.

Capax profile 3262

capax 3265 distance profile
Distance profile 3262

Nonius Lock

lock Nonius hanger with Nonius-CD


RIB-E 22 mm
U-Fix FG

RIB-E 40 mm
U-Fix 80

LIGHTING

Linear LED lighting

Gustafs F-LINE light fixtures are designed in harmony with our Gustafs Linear products.
Gustafs F-Line R and F-line C can be installed in between Rib-E.

Wood

Wood is a natural product and each veneer is unique. Colour, pattern and structural differences are considered as normal and a part of the décor. Select panels and ribs on colour shade and plan your wall or ceiling installation, we recommend mixing varying shades randomly. Wood changes over time when exposed to UV-light.

Conditions for Storage, Installation and Use

Only for indoor use and not in wet rooms. Storage, Installation and Use at 18-50 C° and 25-60% air humidity. The humidity in the under laying construc-tion (concrete) should not be higher than 15%. Gustafs solutions are sensitive to humidity and water, therefore they should always be stored dry and in-door.

Storage & Transportation

– Do not transport unsecured panels.
– Do not stack pallets.
– Keep the packaging closed during storage.
– Lift panels flat, vertically and one at the time.
– Avoid exposure to strong and direct sunlight.

Cleaning

Cleanings is done by dry mop or vacuum. Use synthetic cleaning fluid without ammonia for greasy stains, fruit, wine and coffee. Blood is removed with cold water.

Our UV coated and Laminate surfaces are approved for hospital cleaning products containing up to 70% alcohol.

On building site

– Avoid exposure to strong and direct sunlight.
– Do not expose visible surfaces to sharp objects during installation.
– Do not slide products on each other. Lean panels against a wall for short term storage.
– Protect both non-installed and installed panels and ribs from impact coming from ladders, trolleys, furniture installation, etc, including all other workers and their tools.
