Linear Rib-E
Linear Rib-E - Image 2
Linear Rib-E
Linear Rib-E - Image 2

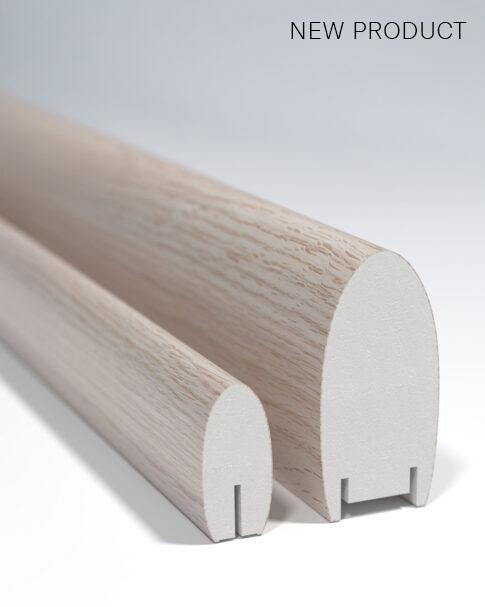

Linear Rib-E

Rib-E builds on the same trusted performance as Rib-R, but with a fully rounded profile that brings a softer, more fluid expression to any interior. Crafted with real wood veneer and a dimensionally stable fibre-gypsum core, it delivers long-term reliability without warping or movement, even in demanding environments.
Like all solutions within the Gustafs Linear family, Rib-E is installed using the Capax Quick-Up system, ensuring a precise, efficient and secure assembly. You control the visual identity: choose veneer, surface finish, spacing colour, dimensions and centre-to-centre distances.

TYPE / SOLUTION

Linear System, Linear Mix System

APPLICATION

Ceilings

Fire Class

ASTM-A, B-s1,d0

Acoustic class

A, B, C

INSTALLATION

CAPAX MIX

CONTACT
MENU /
CLOSE

Design

Gustafs Rib-E delivers soft, rounded lines in real wood with long-term stability. Choose surface, combine with other mix- system products or ad an acoustic felt backing colour, to create unique patterns.

Installation

Our Capax MIX System offers precise installations regarding length joints and spacings in a multiple of dimensions. Spacings start at 22 mm for the 80×40 mm model and 9 mm for the 47×22 mm model and increase with intervals of 31 mm.

Surfaces

Choose from a wide range of veneers and surface treatments.
Surfaces >>

SURFACES +
SURFACES

Choose from a wide range of surface options—veneer, paint, or foil—and combine Rib-E with different acoustic felt backing colours to create distinct design expressions.

Surfaces >>

SEAMLESS +
SEAMLESS

Capax MIX System and Rib-E offers precise alignment and a clean, secure finish.

DIMENSIONS +
DIMENSIONS

Two dimensions available.

See Dimensions >>

DESIGN

Refined softness

Gustafs Rib-E brings a refined softness to linear design. Its fully rounded profile creates fluid, uninterrupted lines across ceilings, while the combination of real wood veneer and a fibre-gypsum core ensures long-term dimensional stability. Installed with the Capax Quick-Up system, Rib-E offers precise alignment and a clean, secure finish. With variations in veneer, finish, spacing colour and dimensions, architects can shape a distinctive, durable expression that stands the test of time.

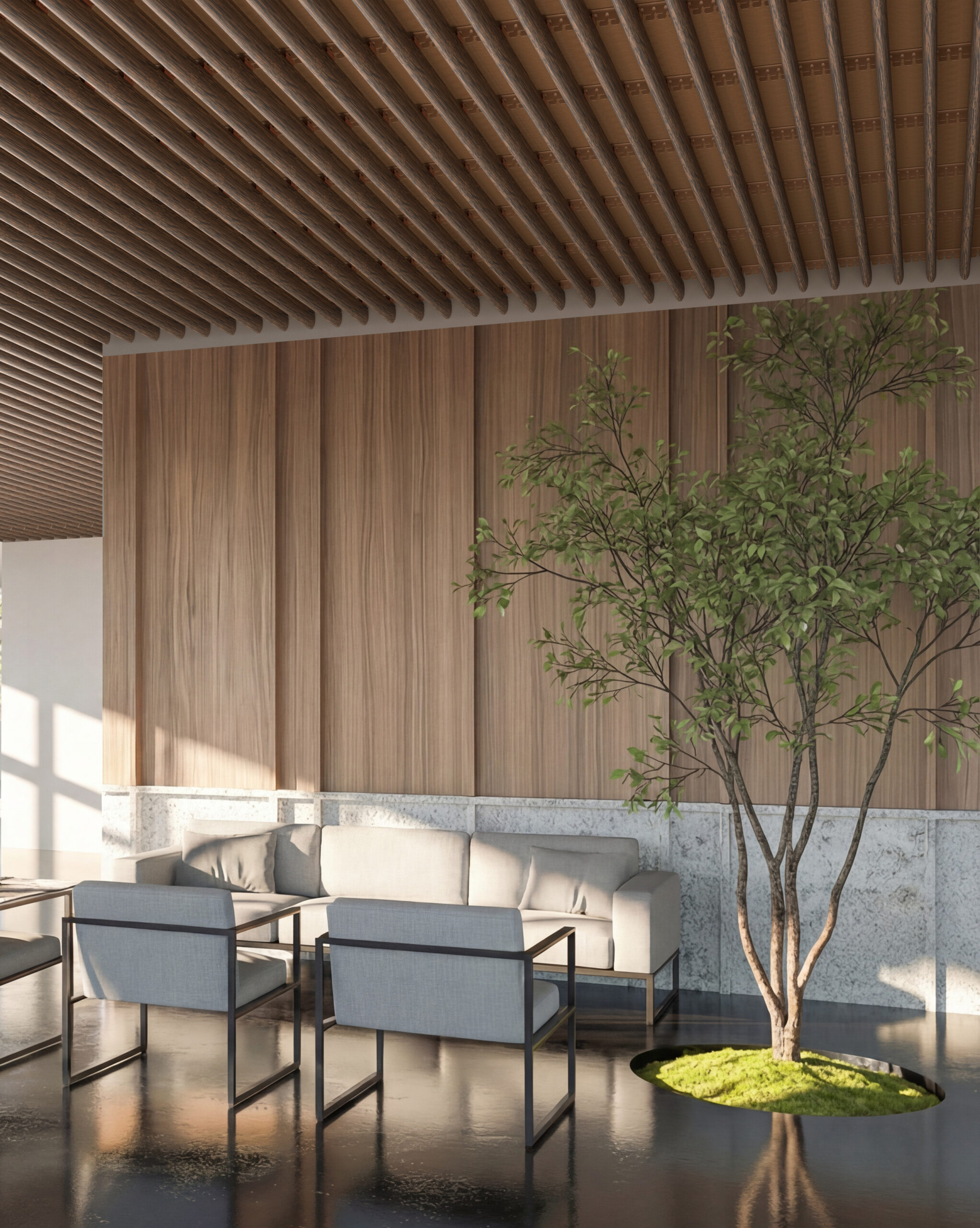

IMPACT

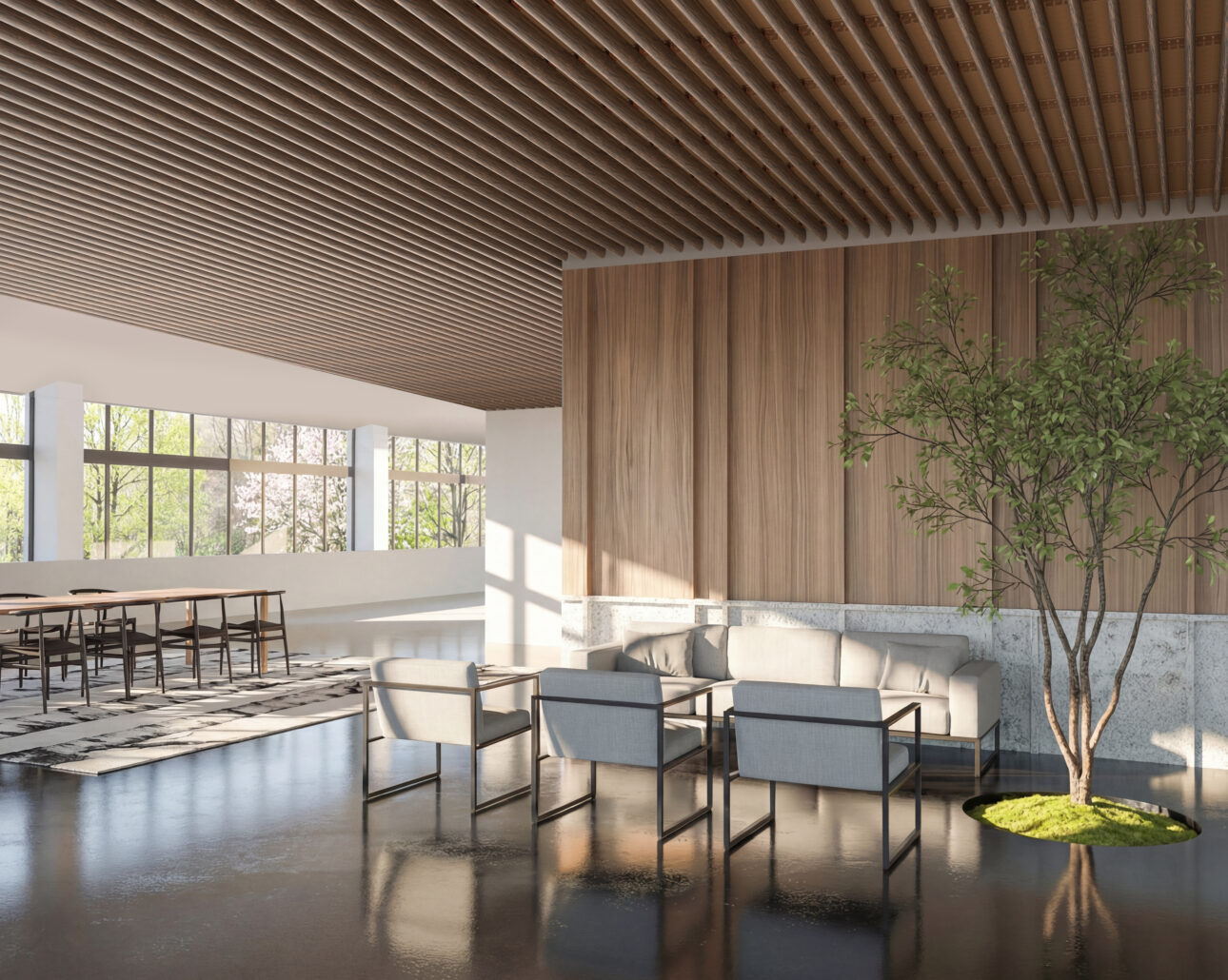

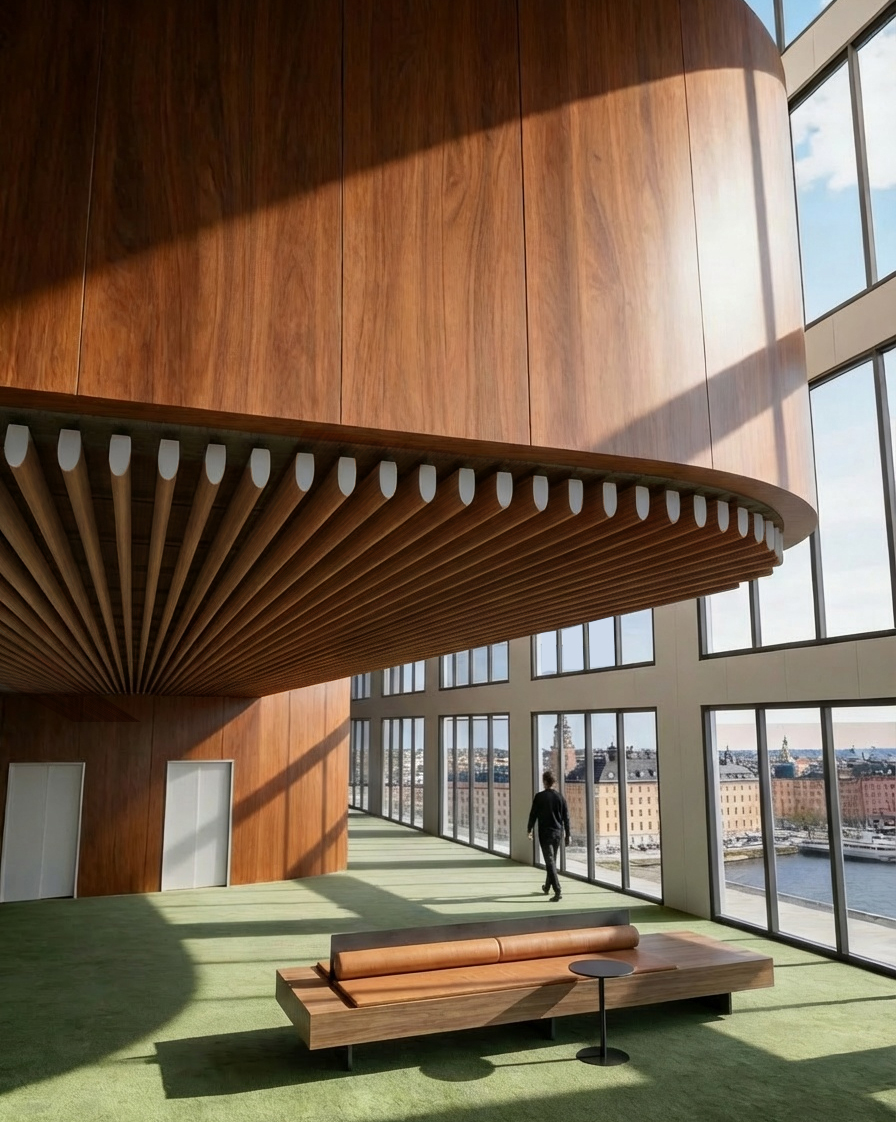

Sculptural Wood Ceilings with Bold Character

Rib-E creates a powerful, exclusive ceiling expression where rounded, flowing wooden forms define the space. The design is both architectural and tactile — adding depth, rhythm, and a strong sense of craftsmanship to interiors where aesthetics matter.

A wide selection of natural wood veneers allows each ceiling to be tailored to the character of the project, from warm and understated to bold and expressive. For applications where fire performance is not the primary requirement, Rib-E can also be manufactured in MDF or solid wood, offering greater freedom in material choice and detailing.

The result is a ceiling that feels substantial and refined — where form, material, and craftsmanship come together in a confident architectural statement.

CEILING INSTALLATION

Function and Performance

With the Gustafs Rib-E system you access true flexibility. Designed for ceilings, Rib-E integrates seamlessly into the Capax Mix installation system — allowing you to combine linear ribs, panels, lighting and other elements in one consistent grid.

Whether you specify Rib-E across the entire ceiling plane or mix it with Feltfon, lights or angular ribs, the Capax Mix system supports clean transitions and unified geometry.

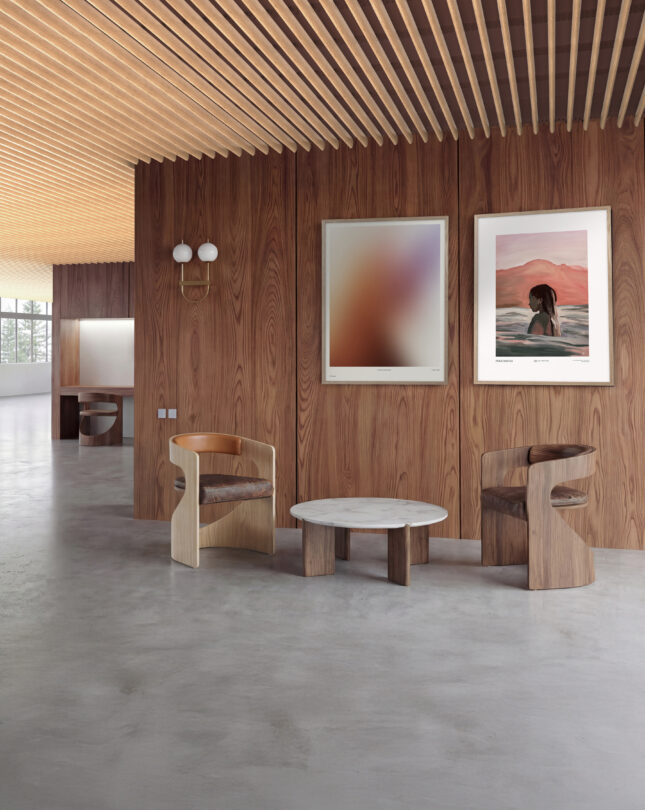

INSPIRATION

Rib-E 80 mm

Rib-E combined with coloured Acoustex® acoustic felt in the colour mocca. The profile creates visual depth and a flexible expression tailored to each architectural concept.

Rib-E in image is installed with a spacing of 84 mm, CC 124mm.

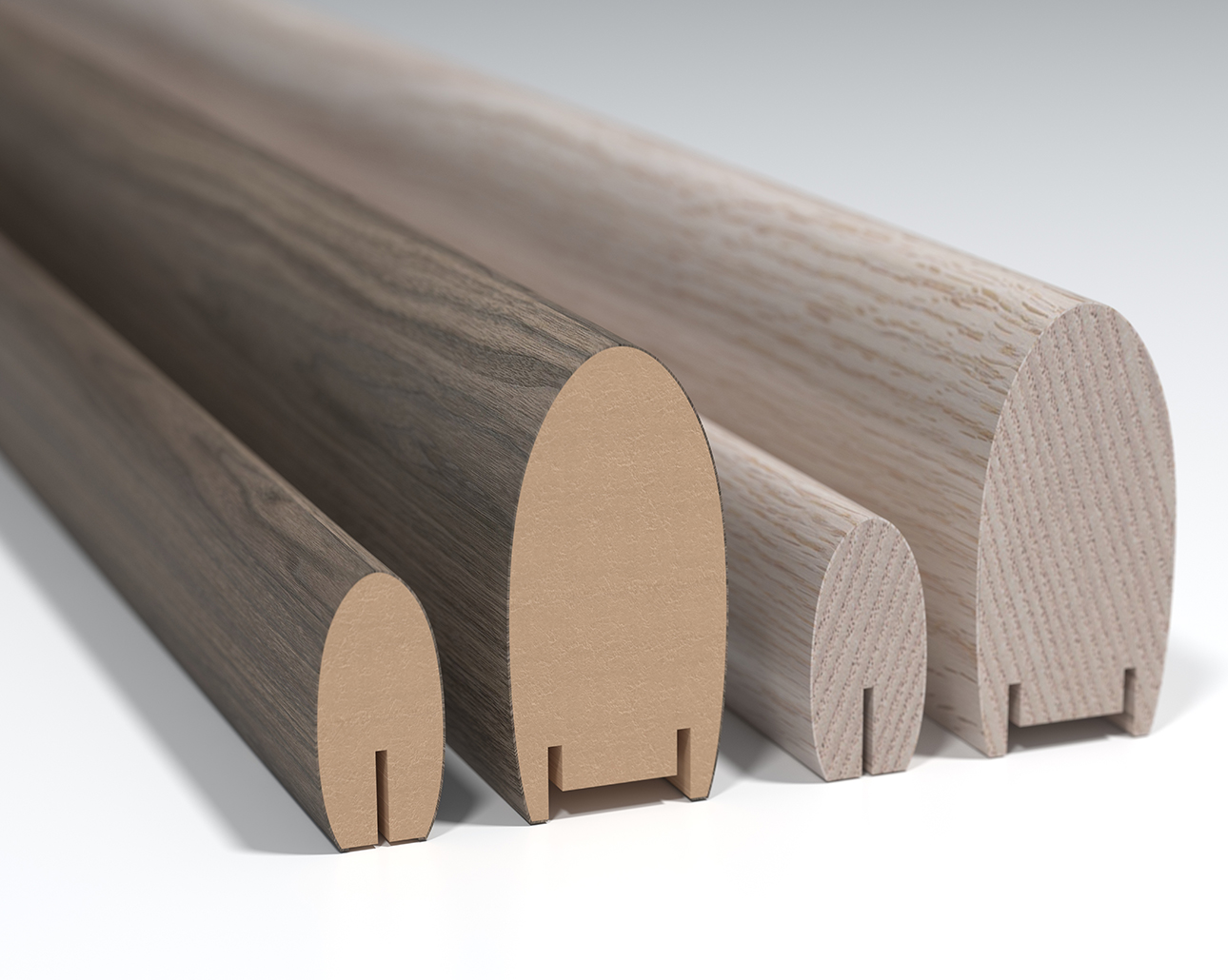

MDF & SOLID WOOD +
MDF & SOLID WOOD

Rib-E is also available as solid wood ribs and with MDF core.



A Shared Framework – Mix installationsystem

The following products can be combined with Rib-E in the same Capax-Mix system.

Linear Rib-S & Rib-R

Acoustic wooden slats.

Linear Rib-S
Linear Rib-R

Blayde

Blayde >>

Feltfon

All linear products in the Feltfon range, plus Feltfon – Blox and – Diamonds.

Feltfon products >>

F-Line

Lighting system

F-line-R

Create rib solutions with your own touch

Our flexible inhouse production will realize your ideas and designs with almost no limitations. Surface materials and surface finishes are 99% of what you see of our products, so we decided to be leading experts in these fields.

KNOWLEDGE HUB / SURFACES

Wood Veneer

The Gustafs Linear Ribs are available in customized veneers or in our standard veneer collections Nature & Gemini. For customized effects, vary the gloss or pigmentation of the surface finish.

Explore our veneers

Paint

With a super smooth surface prepared for painting, we can supply solid colours in any NCS or RAL code and a gloss from super matt to glossy.

Foil

As an alternative to wooden veneer or painted surfaces, we offer coloured or décor foils as an eye-catching finish for our ribs.

VENEERS +
VENEERS
Veneers

We offer two types of veners, Nature and Gemini.

See our Veneer Collections

Veneer Nature >>

Veneer Gemini >>



Installation Patterns

PATTERNS

Rib-E combination with Feltfon Rib



PATTERN

Rib-E & combination with Feltfon DNA



Get inspired by our mix intsllation patterns.

MIX INSPIRATION PATTERNS

Turn our standards into something unique

Play with and combine product dimensions and vary the spacings to build optical illusions and create harmonious innovations.

Spacings
Rib-E 80×40 mm

Spacings start at 53 mm and can be increased in steps of 31 mm.
See spacings

Spacings
Rib-E 47×22 mm

Spacings start at 40 mm and can be increased in steps of 31 mm.
See spacings

Fill the spacings

Use our wide program of coloured acoustic insulations to fill the spacings or fill them with lights.

01 DIMENSIONS

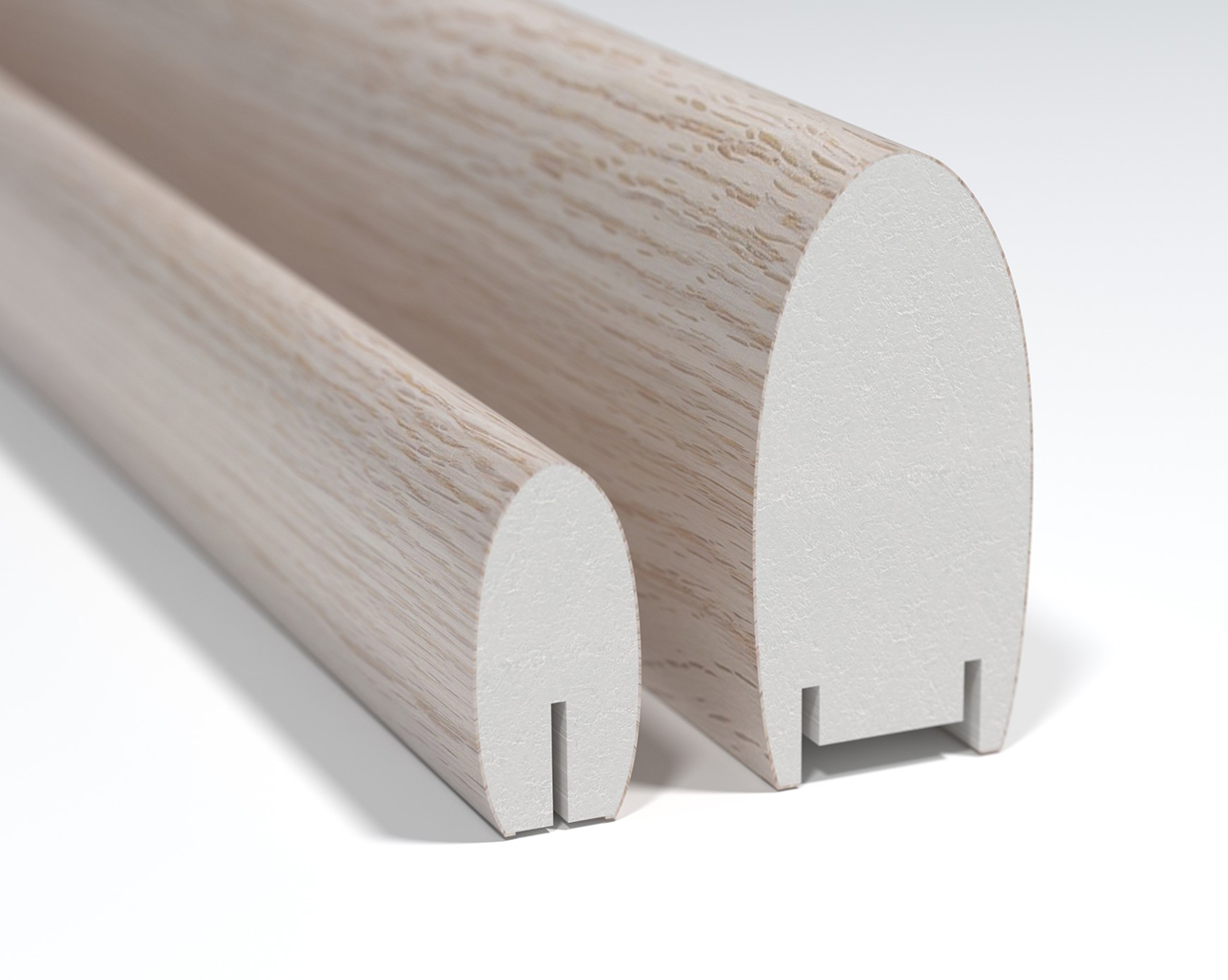

Rib-E Dimensions mm

Available in two dimensions.

DEPTH WIDTH LENGHT
80 40 2400
80 40 2550
47 22 2400
47 22 2970

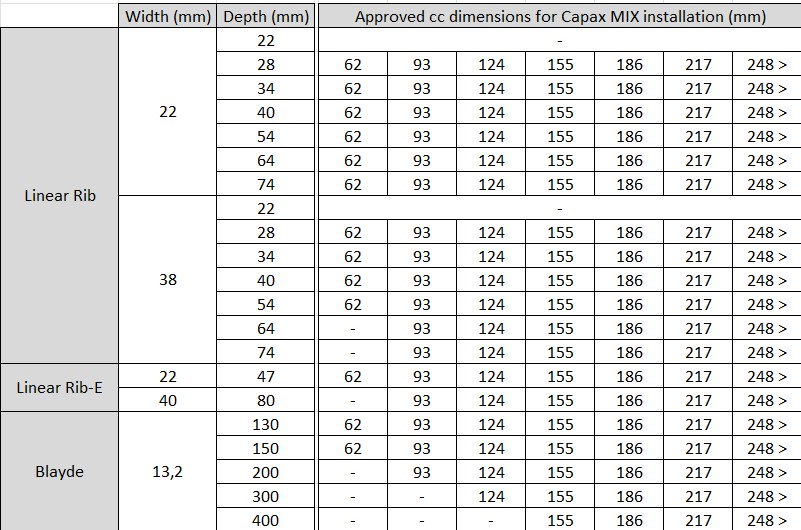

Rib-E Approved cc dimensions for Capax Mix installation (mm)

Rib-E Width 22mm, depth 47 mm
62 93 124 155 186 217 248>
Rib-E Width 40mm, depth 80 mm
– 93 124 155 186 217 248>
SPACINGS

Spacings Rib-E 80×40

SPACINGS: 53, 84, 115, 146 mm

SPACINGS

Spacings Rib-E 47×22

SPACINGS: 40, 71, 102, 133 mm

Gustafs Linear Rib-E acoustics

Quality in room acoustics requires a well-balanced combination of absorption and reflection. Gustafs Linear Rib-E will deliver the perfect solution for sound absorption and at the same time provide a good reflection and diffusion. Simply adjust the rooms reverberation by varying the spaces between the ribs.

KNOWLEDGE HUB / ACOUSTICS

Ceiling installation acoustic values Linear Rib-E

CEILING MIX

APPLICATION RIB WIDTH SPACING INSULATION αw / NRC
Ceiling 22 mm 9 mm 15 mm + 200 mm void 0,80-B / 0,80
Ceiling 40 mm 22 mm 15 mm + 200 mm void 0,90-A / 0,90





Gustafs Products Acoustic Absorption Values / Download

ACOUSTIC VALUES
Acoustic properties | .pdf
ACOUSTIC ABSORBTION VALUES
DOWNLOAD

Safety in our core

By covering a non-combustible fibre gypsum core with a thin layer of wood, we have created a natural and impregnation-free composition that does not noticeable contribute to fire. Thanks to this, our total Linear Rib System is 100 percent fire-rated, not just parts of the product, and will meet all countries’ fire safety requirements.

KNOWLEDGE HUB FIRE

Reaction to fire – classifications Gustafs Linear System
PRODUCT CORE MATERIAL VENEER PRINTED VENEER FOIL
Linear Rib-E System High Density Fibre Gypsum B-s1,d0 B-s1,d0 B-s1,d0
Linear Rib-E System High Density Fibre Gypsum ASTM-A ASTM-A ASTM-A
FIRE SAFETY +
FIRE SAFETY

The core in our ribs makes our fire safety unique. The rest is superficial.

KNOWLEDGE HUB / CORE

Download

FIRE CLASSIFICATION
Reaction to fire
REACTION TO FIRE
DOWNLOAD.PDF

With our low emission wood, you can breathe out.
And everyone else can breathe in.

The fibre gypsum core of Gustafs Linear Ribs is regarded an inherently none-emitting source of VOCs, just like stone, ceramic, metals, glass and concrete. The ribs are also completely impregnation-free and that is why our panels are naturally very low emitting, guaranteeing a healthy room air quality.

KNOWLEDGE HUB / EMISSIONS



Our Linear ribs comply with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 0,3 (mg/m³) 0,147 (mg/m³) ≤ 0,01 (mg/m³) 0,005 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,147 (mg/m³) < 0,06 (mg/m²h) 0,005 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,16 (mg/m²h) < 0,05 (mg/m²h) 0,005 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,160 (mg/m²h) < 0,05 (mg/m²h) 0,005 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,147 (mg/m³) ≤ 0,06 (mg/m³) 0,005 (mg/m³)



More Building Certifications >>



EMISSIONS +
EMISSIONS
No added formaldehyde

The glues and lacquers used in our solutions are always certified NAF systems – No Added urea Formaldehyde.

KNOWLEDGE HUB / EMISSIONS

A zero footprint is our target

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy, that our products are made from 98 percent natural materials and 94 percent recycled materials, and that all Linear Ribs are free from retardants, added formaldehyde or isocyanate binders.

KNOWLEDGEHUB / SUSTAINABILITY

READ MORE ON GREEN GUSTAFS

01 RECYCLED MATERIALS +
01 RECYCLED MATERIALS

Our Linear Ribs contain an incredible 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material.

02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY

Producing in Sweden and surrounded by hydro power plants this is the main energy source for our production. The only other two are wind and solar power, adding up to a fantastic 100% renewable energy.

03 ENVIRONMANTAL DECLARATIONS +
03 ENVIRONMANTAL DECLARATIONS

Our products are environmentally declared, available with FSC® certified wood and have all documentation in place to comply with leading building assessments like BREEAM and LEED.

The 5 natural benefits of our fibre gypsum core

Gustafs Linear Ribs are produced with a high-density, reinforced fibre gypsum core having inherent properties regarding dimension stability, emissions, sustainability, fire safety and acoustics. These 5 fundamental demands in today’s modern building industry effectively eliminate most traditional wood-based alternatives.

Stability

Unaffected by indoor climate changes, fibre gypsum doesn’t bulge, warp or swell. The zero spacing in-line joints between the ribs will remain zero over their full lifetime.

Fire Safety

Non-combustible and homogeneous by nature, fibre gypsum doesn’t need chemicals to achieve its fire rating. A Linear Rib with a wood veneer wrapping still consists of 97% fibre gypsum and has a fire classification of B-s1,d0.

Acoustics

Acoustically, the use of wall cladding with a higher density is usually favourable compared to lighter materials. Fibre gypsum-based ribs are heavier than wood-based wall cladding materials and sound waves will not make them vibrate or resonate.

Sustainability

Thanks to the cores high density and low thermal conductivity, the ribs help to maintain room temperature, reducing the need for cooling or heating. Fibre gypsum contains of 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material, very important for the certification of buildings.

Emissions

Fibre Gypsum cores are extremely low emitting. One of the reasons is that they are produced without wood binders and automatically without added urea-formaldehyde or isocyanates. Interior Panels and Ribs, containing 97% Fibre Gypsum, will per definition have very low TVOC and formaldehyde emissions.

Details that make the difference

Rib Accessories are unique details including lights and other solutions to be combined with your wall or ceiling system. Our linear accessories complete your vision and simplify complicated solutions.

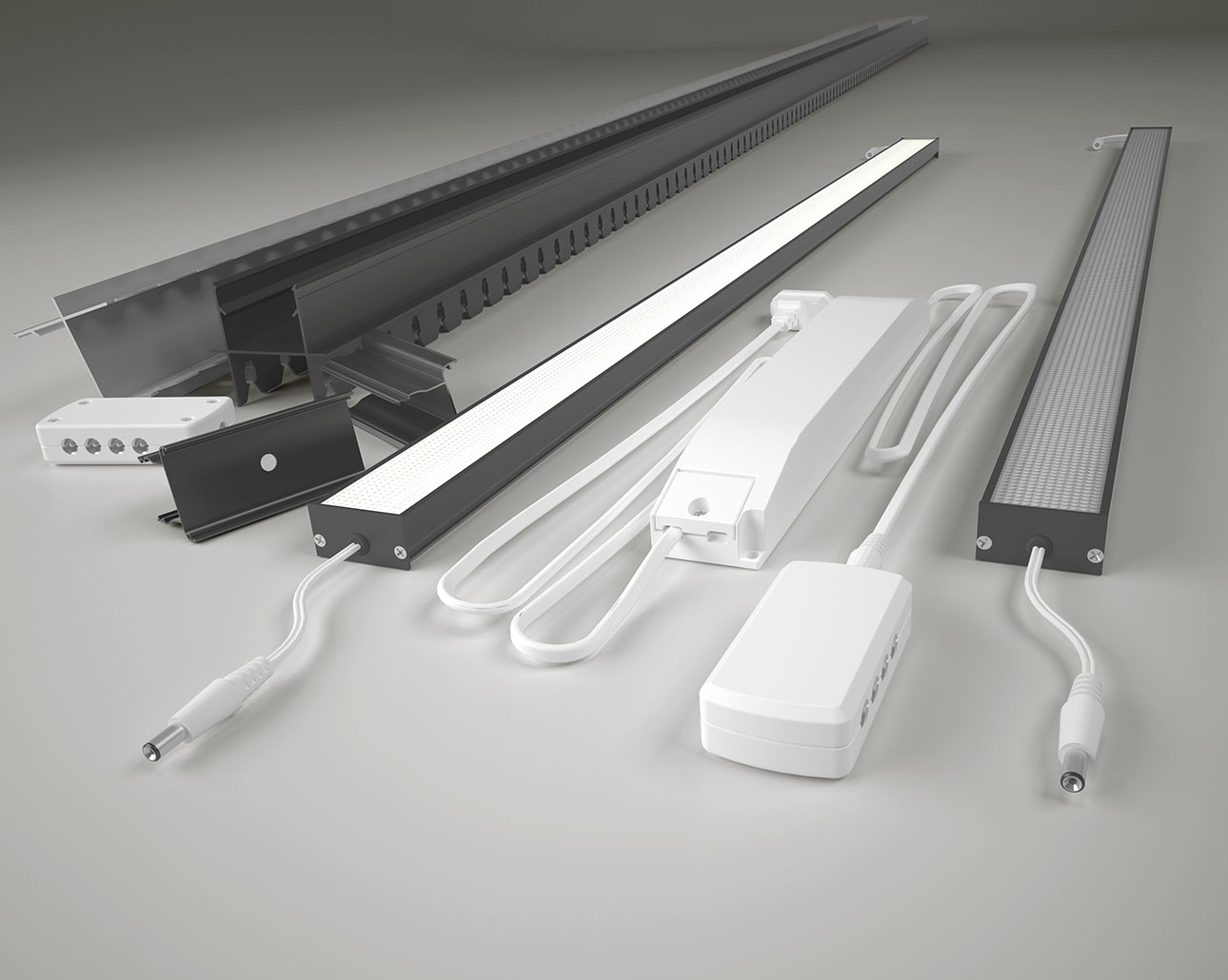

F-Line  – Linear lightning för Gustafs Linear System

Integral linear lightning solution for Gustafs Linear Ceiling System. The lamp housing uses the same fixture clips as the ribs and has due to that a free positioning and is demountable. D-Line uses a modern micro prismatic dimming in combination with high-quality LED light sources.

Installation instructions F-line-C >>

Acoustex 9,0 – Sturdy acoustic felt for multiple use

Extremely form stable acoustic backing in the colours Wool Grey, Dark Grey or Anthracite with fire class B-s1,d0. Can be used as an individual sound absorber or integral as the acoustic insulation layer behind Gustafs demountable Linear Ceiling-CD system. Supplied in sheets in various formats. Contains minimum 50% recycled PET bottles and is approved by all international standards regarding in-door climate emissions. Thickness 9,0 mm.

Acoustex 9 mm >>

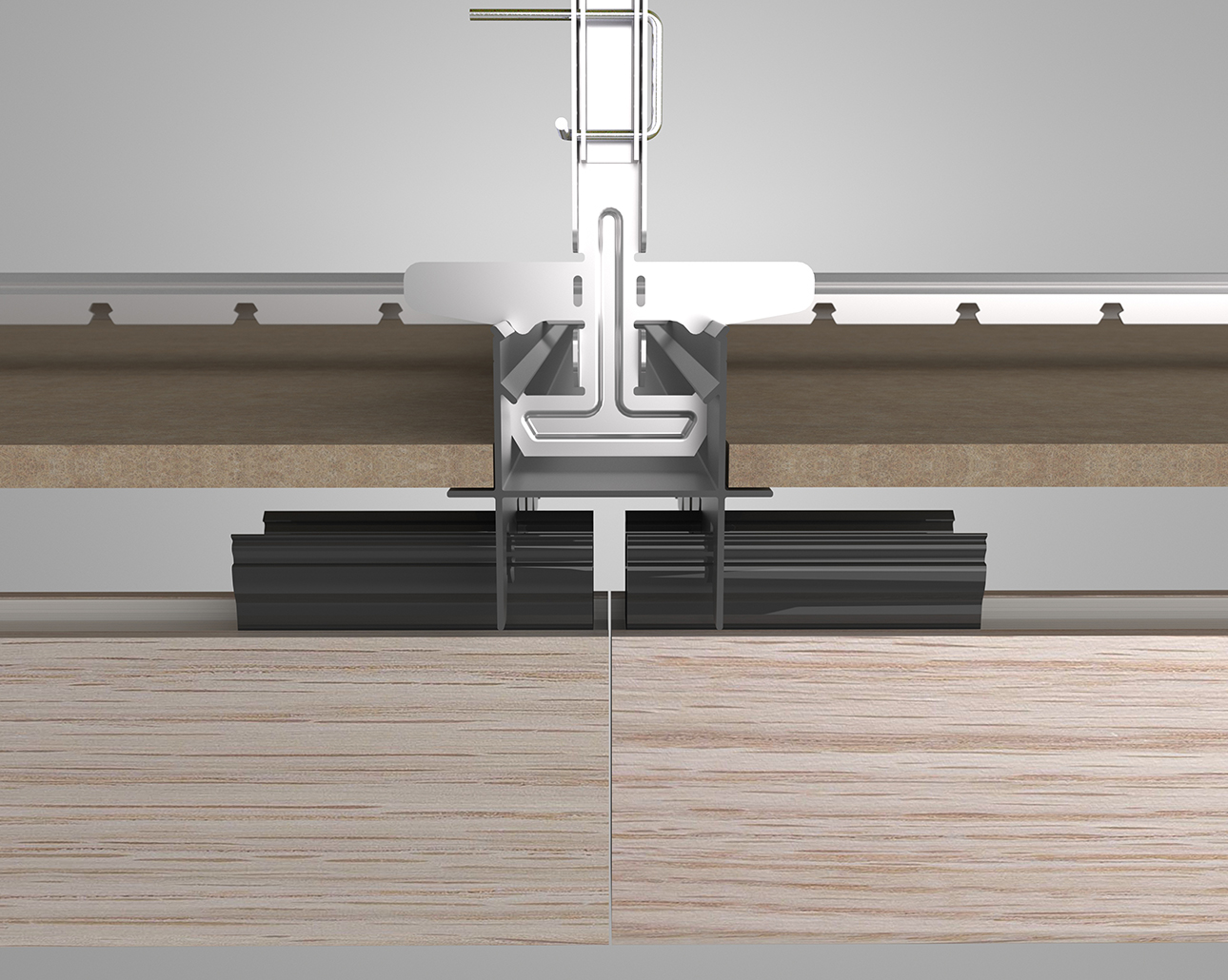

A versatile installation system with many benefits

Capax is our unique aluminum profile installation system that provides you a concealed, reliable, quick and cost saving installation. The MIX assembly system is a user friendly aluminum grid offering installation reliability and a perfect visual result. No tools are needed to assemble the interlocking components. A demountable version is available, ideal when access to the ancillary systems is required.

Ceiling installation

Installation with the Mix installation system

Linear Rib-E Installation – Ceiling

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Rib-E

Fire
+

Reaction to Fire: B-s1,d0

ASTM: A

Acoustics
+

Configurations possible to achieve absorption class A, B or C.

Environmental performance certification program for buildings
+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions
+

E1
M1
Blue Angel
AgBB
French VOC
Belgian VOC

Declaration of Performance
+

Yes

EPD
+

Yes

FSC® & PEFC®
+

FSC® (Forest Stewardship Council®)
Gustafs FSC® certificate code is: SAI-COC-010919

PEFC® Certificate Number:
ICSE-PEFC-COC-0230846

READ MORE KNOWLEDGE HUB FSC® >>

And more
+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Country of origin: Sweden
Hygien cleaning: 70% Alc.
Recycled content: 94%
Recycled Post consumer: 17%

CAD
CAD Rib-E & Mix system
DOWNLOAD
CAD-FILES
ACOUSTIC VALUES
Gustafs products | pdf
DOWNLOAD
FIRE CLASSIFICATION
Reaction to fire Gustafs products | pdf
DOWNLOAD
