Linear Plank Wall

EXCLUSIVE PLANKS FOR WALLS

Gustafs Plank provides a traditional design to make beautiful walls. Installed with the Gustafs Capax installation parts, it is a system – reliable, labour saving and guaranteeing a perfect end-result. Although a standard system you can still many features. You can vary the veneer, add colours using a pigmentation, work with varying plank widths between 100 and 200 mm, or use open, closed and coloured spacings. Gustafs Plank can be use on curved walls.

TYPE / SOLUTION

Linear System

APPLICATION

Wall

Fire Class

ASTM-A, B-s1,d0

Acoustic class

D

CONTACT
MENU /
CLOSE

Material

Made with a fire resistant fibre gypsum high density, 1200 kg/m³ core and a natural wooden veneer. An all-natural product.

Installation

Capax is our unique installation system using aluminium profiles. It’s concealed, reliable, quick-up, user friendly and cost saving. No tools are needed to assemble the interlocking components.

Fire Reaction

The high density nonflammable core and the surface veneer’s strongly bound adhesion to the fiber gypsum plank give our planks a classification up to”Reaction to fire B-s1,d0.”

01 EASY TO INSTALL +
01 EASY TO INSTALL

Using full length Capax profiles or Capax clips, the Planks can be installed vertically, horizontally or diagonal and with closed or more eye catching coloured spacings between the Planks. The Linear Plank system is perfect to create curved walls.

02 FLEXIBLE DESIGN +
02 FLEXIBLE DESIGN

Many design parameters can be adjusted individually. The veneer, the veneer finish regarding gloss or pigmentation or why not work with painted or HPL surfaces.

03 DIMENSIONS +
03 DIMENSIONS

Gustafs Plank wall is available in widths between 100 and 200 mm, but our standards are 100 mm, 150 mm and 200 mm.

All planks are made to order, based on your choices:

Surface

Our designs and surfaces are constantly evolving. Choose from a wide range of veneers, laminates, or painted solid colours to achieve a unique design.

Veneer finish treatments

Our veneer lacquer is a durable 3-layer UV-cured process, available in different gloss levels and pigmentations.

Dimensions

You can freely combine different Plank Ceiling dimentions. Gustafs Linear Plankcan also be customized, pre-fabricated according to your drawings. Contact us for more information.

Acoustic felt

The acoustic felt is available in black, white, or grey.

Spacings & Infill Strips

Install with closed or opened spacings 0, 5, 10 or 13mm. Together with the 13 mm spacing you can use coloured or illuminated infill-strips in your wall installation.

Projects with Linear Plank

PROJECT

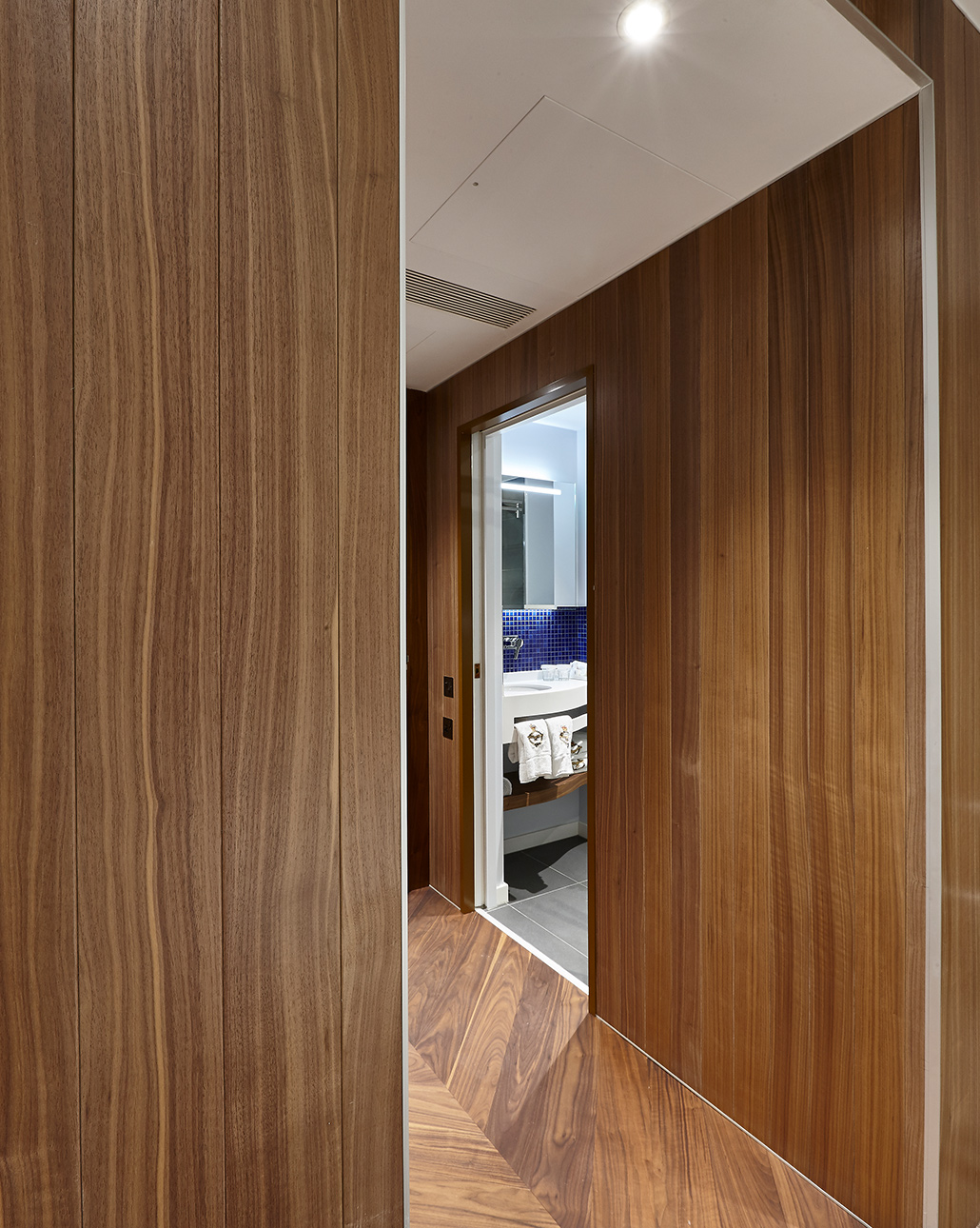

Royal Air Force Club

Gustafs Linear planks with walnut veneer  at the RAF social club, London.

Explore the project >>

PROJECT
Lykke & Löjromsbaren

At the re-opened reasturant, Lykke & Löjromsbaren at Nordic Light Hotel, Stockholm, you will find wood veneered planks on both wall and ceiling in the entire restaurant.

Explore the project >>

Other Plank products

Linear Plank-P for Ceilings

Gustafs Plank-P has the highest possible A2-s1,d0 fire class and lets you create beautiful spaces with real wood slatted ceilings.

PLANK-P CEILING

Linear Plank for Ceilings

Gustafs Plank Ceiling has B-s1,d0 fire class and lets you create beautiful spaces with real wood slatted walls.

PLANK CEILING

Create plank solutions with your own touch

Our flexible inhouse production will realize your ideas and designs with almost no limitations. Surface materials and surface finishes are 99% of what you see of our products, so we decided to be leading experts in these fields.

KNOWLEDGE HUB / SURFACES

01 WOOD VENEER +
01 WOOD VENEER

Available in any of our standard veneer collections, Nature & Gemini. The veneer can be treated with the finish you’re looking for with changeable pigmentations and gloss levels.

Nature veneer collection
Gemini veneer collection

02 PAINT +
02 PAINT

Fibre gypsum planks can be painted in any NCS or RAL colour.

03 FOIL +
03 FOIL

As an alternative to wooden veneer or painted surfaces, we offer foil as an eye catching finish for our wall and ceiling Planks.

A Plank with many unique benefits

Dimensions, surfaces, patterns, pigment, play with angles, bend surfaces, build optical illusions and create harmonious innovations. By experimenting freely, you can achieve an even more exciting and personal expression. The only limit is your creativity. We can assist you with your design wishes and help provide the plank solution with your own personal touch.

01. Dimensions

We have three standard measurements on our Linear Planks, but we do not want to restrict you. Gustafs Linear Plank can be customized, pre-fabricated according to your drawings.

02. Spacing

The standard spacings are 0, 5, 10 or 13 mm. You can use open and closed spacings in the same installation. Use coloured or even illuminated infill-strips in your wall installation.

Spacings

Infill Strips

Use coloured or illuminated infill-strips in your wall installation.

Infill Strips

01. DIMENSIONS

Standard measurements on our Linear Plank.
Thickness: 13 mm
Widths: 100 mm, 150 mm, 200 mm
Lenghts: 2970 mm

Gustafs Linear Plank can also be customized, pre-fabricated according to your drawings. Contact us for more information.



02. SPACING

Spacing

Spacing 0, 5 or 13 mm, for use with infill strips.

various dimensions plank pattern

INFILL STRIPS

Infill strips

The Capax 3206 joint profile makes it possible to get coloured open joints. Infill strips can be made of all types of laminates, real wood or metal.

Challenge our production team

Gustafs Linear Plank, provides designers the possibillity to create exciting and appealing rooms while at the same time ensuring the highest possible well-being for their occupants. We can assist you with your design wishes and help provide a solution with your own personal touch.



OUR PROCESS

Patterns

The Planks can be installed vertically, horizontally or diagonal and with closed or more eye catching coloured open joints between the Planks.

Dimensions

Gustafs Linear Plank is available in customized lengths and widths, prefabricated according to your drawings.

Printed or Painted Patterns

The design options in our production allows you to create with almost no restrictions. Room claddings should be made to dress the room, not the other way around.



INSTALLATION PATTERNS

The Planks can be installed vertically, horizontally or diagonal and with closed or more eye catching coloured open joints between the Planks.

A. Offset
B. Decreasing lengths
C. Diagonal
D. Chevron wall
E. Offset / various dimensions
F. Chevron various dimensions
G. Horizontal

PRINTED PLANKS

Gustafs Prints give you a truly freedom in design, with the option to spread your graphics over many planks and by that over extremely large wall or ceiling areas.

Safety in our core



By covering a non-combustible fibre gypsum core with a thin layer of wood, we have created a natural and impregnation-free composition that does not noticeable contribute to fire. Thanks to this, our total Linear Plank System is 100 percent fire-rated, not just parts of the product, and will meet all countries’ fire safety requirements.

KNOWLEDGE HUB FIRE

Fire Classifications Gustafs Plank
PRODUCT CORE MATERIAL VENEER PRINTED VENEER FOIL
Linear Plank High Density Fibre Gypsum B-s1,d0 B-s1,d0 B-s1,d0
Linear Plank High Density Fibre Gypsum ASTM-A ASTM-A ASTM-A



FIRE SAFETY +
FIRE SAFETY

The core in our planks makes our fire safety unique. The rest is superficial.

KNOWLEDGE HUB / CORE

Download

FIRE CLASSIFICATION
Reaction to fire
REACTION TO FIRE
DOWNLOAD.PDF

With our low emission wood, you can breathe out.
And everyone else can breathe in.

The fibre gypsum core of Gustafs planks is regarded an inherently none-emitting source of VOCs, just like stone, ceramic, metals, glass and concrete. The planks are also completely impregnation-free and that is why our panels are naturally very low emitting, guaranteeing a healthy room air quality.

KNOWLEDGEHUB / EMISSIONS



Our Linear Plank comply with the following building certifications
TVOC  required TVOC  result Formaldehyde required Formaldehyde result
BREEAM ≤ 0,3 (mg/m³) 0,147 (mg/m³) ≤ 0,01 (mg/m³) 0,005 (mg/m³)
LEED none U.S. ≤ 1,0 (mg/m³) 0,147 (mg/m³) < 0,06 (mg/m²h) 0,005 (mg/m²h)
BVB < 0,2 (mg/m²h) 0,160 (mg/m²h) < 0,05 (mg/m²h) 0,005 (mg/m²h)
M1 < 0,2 (mg/m²h) 0,023 (mg/m²h) < 0,05 (mg/m²h) 0,017 (mg/m²h)
Blue Angel ≤ 0,3 (mg/m³) 0,147 (mg/m³) ≤ 0,06 (mg/m³) 0,005 (mg/m³)



More Building Certifications >>



EMISSIONS +
EMISSIONS

The glues and lacquers used in our solutions are always certified NAF systems – No Added urea Formaldehyde.

KNOWLEDGE HUB / EMISSIONS

A zero footprint is our target

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy, that our products are made from 98 percent natural materials and 94 percent recycled materials, and that all Linear Planks are free from retardants, added formaldehyde or isocyanate binders.

KNOWLEDGE HUB / SUSTAINABILITY

GREEN GUSTAFS

01 RECYCLED MATERIAL +
01 RECYCLED MATERIAL

Our Linear Plank contains an incredible 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material.



02 RENEWABLE ENERGY +
02 RENEWABLE ENERGY

Producing in Sweden and surrounded by hydro power plants this is the main energy source for our production. The only other two are wind and solar power, adding up to a fantastic 100% renewable energy.

03 ENVIRONMANTAL DECLARATIONS +
03 ENVIRONMANTAL DECLARATIONS

Our products are environmentally declared, available with FSC® certified wood and have all documentation in place to comply with leading building assessments like BREEAM and LEED.

The 5 natural benefits of our fibre gypsum core

Gustafs Plank is produced with a high-density, reinforced fibre gypsum core having inherent properties regarding dimension stability, emissions, sustainability, fire safety and acoustics. These 5 fundamental demands in today’s modern building industry effectively eliminate most traditional wood-based alternatives.

Stability

Unaffected by indoor climate changes, fibre gypsum doesn’t bulge, warp or swell. The zero spacing in-line joints between the planks will remain zero over their full lifetime.

Fire Safety

Non-combustible and homogeneous by nature, fibre gypsum doesn’t need chemicals to achieve its fire rating. The Plank, with wrapped wood veneer is 97% fibre gypsum, with a fire classification up to B-s1,d0.

Acoustics

Acoustically, the use of wall cladding with a higher density is usually favourable compared to lighter materials. Fibre gypsum-based ribs is heavier than wood-based wall cladding materials and sound waves will not make them vibrate or resonate.

Sustainability

Thanks to the cores high density and low thermal conductivity, the ribs help to maintain room temperature, reducing the need for cooling or heating. Fibre gypsum contains of 94% recycled material. Even better is the fact that 17% of the total content comes from post-consumer recycled material, very important for the certification of buildings.

Emissions

Fibre Gypsum cores are extremely low emitting. One of the reasons is that they are produced without wood binders and automatically without added urea-formaldehyde or isocyanates. Interior Panels and Linears, containing 97% Fibre Gypsum, will per definition have very low TVOC and formaldehyde emissions.

A versatile installation system with many benefits

Capax is our unique aluminum profile installation system that provides you a concealed, reliable, quick and cost saving installation. The Quick-Up assembly system is a user friendly aluminum grid offering installation reliability and a perfect visual result. No tools are needed to assemble the interlocking components. A demountable version is available, ideal when access to the ancillary systems is required.

Wall installation

Concealed and fully demountable.

WALL INSTALLATION

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Gustafs Plank

Fire
+

Reaction to Fire: B-s1,d0
Resistance to Fire: K1-10/K2-10

Acoustics
+

Acoustic absorption value for Plank Wall with 12 mm spacing

WIDTH 100 mm 150 mm 200 mm
Acoustic absorption value D D D



Environmental performance certification program for buildings
+

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions
+

E1
M1
Blue Angel
AgBB
French VOC
Belgian VOC

Declaration of Performance
+

Yes

EPD
+

Yes

FSC®
+

FSC® (Forest Stewardship Council®)
Gustafs FSC® certificate code is: SAI-COC-010919

READ MORE KNOWLEDGE HUB FSC® >>

And more
+

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Country of origin: Sweden
Hygien cleaning: 70% Alc.
Recycled content: 94%
Recycled Post consumer: 17%
