Gustafs / Panel system / Figura+ Acoustic Panel

Acoustic walnut wall panel with decorative holes where the acoustic felt is showing.

Figura+ Acoustic Panel

ACOUSTIC ART PANELS FOR WALLS

Safety and Elegance Combined: Figura+ Acoustic panels boast the superb fire classification, B-s1,d0, ensuring safety in any public environment. Crafted with exquisite wooden veneers, these panels add a touch of sophistication and natural beauty to any space. Nature-Inspired Patterns: Drawing inspiration from the wonders of nature, Figura+ offers four captivating patterns; Bubbles, Splash, Pebbles and Snake. Figura+ Acoustic panels come ready to use with a robust 9 mm acoustic felt backing made from recycled plastic bottles, reflecting our commitment to sustainable practices. With an unlimited range of real wood veneers and 6 standard colours for the felt, these panels allow designers to match the aesthetic of any space while contributing to a greener future.

Fire Class

ASTM-A, B-s1,d0

Acoustic class

A, B, C

APPLICATION

Ceilings, Wall

Perforation

Bespoke

CONTACT

Material

This is an all-natural product combining high-quality timber veneer and a non-combustible, high-density fibre gypsum core and a 9 mm acoustic felt backing made from recycled plastic bottles. Materials that contribute to better interiors.

Fire Safety

The fire safety of Gustafs Figura+ comes from its material composition and is not reliant on chemical treatments. The Figura+ panel has the fire classification: B-s1,d0

Surface treatments

Figura+ Acoustic panels come ready to use with a triple UV coating for easy cleaning and good durability. The coating has a matt and modern oiled look.

01 PATTERNS +

01 PATTERNS

Figura+ Acoustic panels feature four captivating patterns influenced by natural elements; Splash, Snake, Bubbles and Pebbles. All patterns offer the flexibility to be turned 180 degrees, allowing for different expressions of the patterns.

02 EASY TO INSTALL +

02 EASY TO INSTALL

Figura+ Acoustic panels is a ready to use panel. Ready to be installed directly on the wall. Easy to combine with Lamellow+.

03 VENEER & FELT +

03 VENEER & FELT

Depending on the colour of the acoustic felt backing, the overall impression of the veneer and the finished surface will vary. As a result, there are many possible designs and colour combinations. The felt is available in six colours; Anthracite, Dark Grey, Wool Grey, Sand, Wet Sand and Dirty Green.

Design possibilities

Veneer

We offer a wide range of veneer options, allowing you to choose from various wood species to achieve the desired appearance. Veneers can bring warmth, texture, and natural beauty to your acoustic walls. Each veneer has its own unique grain pattern, colour variations, and characteristics, allowing you to select the one that best matches your design vision.

Core options

The choice between anthracite or light grey core for the reinforced fibre gypsum core of Figura+ Panels can have a significant impact on the overall appearance of the panels. When deciding between anthracite or light grey core, it’s essential to consider the desired atmosphere, the surrounding colour scheme, and the overall design objectives of your space.

Acoustic Felt

In addition to the core options, the choice of felt backing for Figura+ Panels further contributes to the overall design. Figura+ Panels offer Acoustex felt, which is made from recycled PET materials. The colour of the acoustic felt backing plays a significant role in the visual impact of the panels and the finished surface. It influences the perception of the veneer and adds texture to the design.

Related Products

LAMELLOW+

Figura+ Acoustic panel is part of the Lamellow+ range and has the same dimensions and material options. Therefore, these two products seamlessly complement each other, allowing for a flawless combination.

Lamellow+ Linear
Lamellow+ Barcode

Nature-Inspired Patterns

Drawing inspiration from the wonders of nature, Figura+ offers four captivating patterns; Bubbles, Splash, Snake and Pebbles.

The goal with Figura+ Acoustic panels is to seamlessly integrate design with improved acoustics. Whether used as complementary elements or standalone artworks, these panels enhance the visual appeal of spaces such as hotel receptions or office walls and reduce sounds.

01 SPLASH +

01 SPLASH

The “Splash” pattern replicates the playful motion of a sprinkler’s water spray and the graceful movement of a shoal of fish, adding dynamic energy to any setting. Explore our veneers

02 BUBBLES +

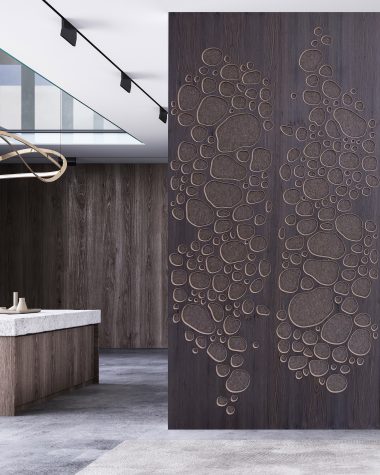

02 BUBBLES

Captures the gentle foam and bubbles of the ocean, creating a serene and tranquil atmosphere.
The colour of the veneer, felt and core is up to you. Explore our veneers

03 SNAKE +

03 SNAKE

Some see pea pods while others see a line of snakes. The beauty of Figura’s patterns lies in their ability to evoke different emotions and thoughts, depending on the beholder and the material combination you choose.

04 PEBBLES

The Pebbles pattern draws inspiration from a beach adorned with pebble stones, shaped over countless moments in time.

Explore our veneers

FLEXIBILITY IN INSTALLATION

Joint patterns

The patterns of the Figura+ panels are designed to provide flexibility and versatility in installation. Whether you choose to repeat the pattern in the same direction or alternate by turning every second panel 180 degrees, you can create different looks and visual effects. This unique feature allows for customization and creativity, enabling you to tailor the design to suit your preferences and the aesthetics of the environment.

Our unique production for your unique designs

Our flexible inhouse production will realize your ideas and designs with almost no limitations.

KNOWLEDGE HUB / SURFACES

01 SURFACE MATERIALS +

01 SURFACE MATERIALS

Traditionally we love wooden surfaces. Our veneer masters handpick the finest sheets for the surface of the panels.

Explore our veneers

02 PIGMENTATION +

02 PIGMENTATION

The veneer can be treated with the finish you’re looking for. Pigmentation, gloss or why not give your veneer a nice, oiled look.

03 LACQUERS & GLOSS +

03 LACQUERS & GLOSS

Our lacquer is a multi-layer UV-cured process which is available in a range of gloss rates, from super matt to high gloss.

01 Surface option – Wood veneers

Nature veneers

Nature veneers will have the lively variations and characteristic expression associated with each wood species.

Se our Nature veneer collection >>

Gemini veneers

Gemini veneers offer an even colour tone and structure to achieve a more harmonious appearance.

Se our Gemini veneer collection >>

Acoustex Felt – Green Acoustics made from rPET

The Acoustic felt, Acoustex, is crafted from a minimum of 50% recycled PET bottles, which are chipped into flakes and combined with fresh PET material. This innovative process ensures optimal reprocessing of PET, making it an environmental friendly choice.

01. STANDARD COLOURS +

01. STANDARD COLOURS

With a 9 mm thick Acoustic feltbacking with the density of 2 kg/m².

The felt is available in:

Wool grey, Dark grey, Anthracite grey
Sand, Wet Sand, Dirty Green.

02. CORE COLOURS +

02. CORE COLOURS

The fibre gypsum core is available in two colours: Light grey and Anthracite grey.

Panel measurements

Figura+ Acoustic Panels have the dimension 600 mm wide, 2400 mm long and 22 mm thick. The top panel itself is 13 mm thick, combining durability and structural integrity. This combination of the 9 mm thick acoustic felt and the 13 mm thick milled panel ensures optimal acoustic performance while maintaining a robust construction.

PANEL DIMENSIONS

Panel dimensions

A=600 mm
B=2400 mm

Panel thickness total: 22 mm
Top Panel: 13 mm thick
Felt: 9 mm thick

Designed for eyes and ears

Every room is unique regarding its acoustic needs. Figura+ panels offer a valuable acoustic recipe typically used to reduce mid frequencies.

KNOWLEDGE HUB / ACOUSTICS

Calculated Acoustic Absorption Classifications

Figura+ Bubbles

Open area 40%

Sound absorption class wall 45 mm insulation + 30 mm air void αw 0,85 – class B, NRC 0,90, total depth 97 mm

Sound absorption class ceiling 45 mm insulation + 200 mm air void αw 0,90 – class A, NRC 0,90, total depth 267 mm

Figura+ Splash

Open area 20%

Sound absorption class wall 45 mm insulation + 30 mm air void αw 0,65 – class C, NRC 0,85, total depth 97 mm

Sound absorption class ceiling 45 mm insulation + 200 mm air void αw 0,65 – class C, NRC 0,85, total depth 267 mm

Figura+ Snake

Open Area 18%

Sound absorption class wall 45 mm insulation + 30 mm air void αw 0,65 – class C, NRC 0,85, total depth 97 mm

Sound absorption class ceiling 45 mm insulation + 200 mm air void αw 0,65 – class C, NRC 0,85, total depth 267 mm

Figura+ Pebbles

Open area 50%

Sound absorption class wall 45 mm insulation + 30 mm air void αw 0,90 – class A, NRC 0,90, total depth 97 mm

Sound absorption class ceiling 45 mm insulation + 200 mm air void αw 0,95 – class A, NRC 0,95, total depth 267 mm

Our unique fire protection

The fire safety of Gustafs Figura+ comes from its material composition and is not reliant on chemical treatments. The Figura panel has the fire classification: B-s1,d0.

KNOWLEDGE HUB / FIRE

Reaction to Fire, Classification

PRODUCT	CORE MATERIAL TOP BOARD	LACQUERED VENEER
Figura+	High Density Fibre Gypsum	B-s1,d0
Figura+	High Density Fibre Gypsum	ASTM-A

FIRE SAFETY +

FIRE SAFETY

The core in our panels makes our fire safety unique. The rest is superficial.

KNOWLEDGE HUB / CORE

With our low emission wood, you can breathe out.
And everyone else can breathe in.

The fibre gypsum core of Gustafs Figura+ panels and the Acoustex felt backing are regarded inherently non-emitting sources of VOC’s. These naturally very low emitting qualities plus the impregnation-free fire safety of the Figura+ panel, guarantee a healthy room air quality.

KNOWLEDGE HUB / EMISSIONS

Our Figura+ panels comply with the following building certifications

	TVOC required	TVOC result	Formaldehyde required	Formaldehyde result
BREEAM	≤ 0,3 (mg/m³)	0,023 (mg/m³)	≤ 0,06 (mg/m³)	0,051 (mg/m³)
LEED none U.S.	≤ 1,0 (mg/m³)	0,1 (mg/m³)	< 0,06 (mg/m²h)	0,024 (mg/m²h)
BVB	< 0,2 (mg/m²h)	0,011 (mg/m²h)	< 0,05 (mg/m²h)	0,024 (mg/m²h)
M1	< 0,2 (mg/m²h)	0,011 (mg/m²h)	< 0,05 (mg/m²h)	0,024 (mg/m²h)
Blue Angel	≤ 0,3 (mg/m³)	0,1 (mg/m³)	≤ 0,06 (mg/m³)	0,051 (mg/m³)

More Building Certifications >>

EMISSIONS +

EMISSIONS

No added urea formaldehyde

The glues and lacquers used in our solutions are always certified NAF systems – No Added urea Formaldehyde.

KNOWLEDGE HUB / EMISSIONS

A zero footprint is our target

It’s in our Swedish DNA to do everything we can to reduce the environmental impact of our business. We have come a long way and we are proud that our production is certified using 100% renewable energy. The felt backing of Figura+ contains a minimum of 50% post-consumer recycled material and the top panel is made of 94% recycled material, including 17% post-consumer recycled material.

The whole panel is free from retardants, added formaldehyde or isocyanate binders. FSC® certified wood is available, and Gustafs Certificate Code is SAI-COC-010919.

KNOWLEDGE HUB / SUSTAINABILITY

Installed directly on an existing wall or ceiling.

The Figura+ Acoustic panels are really simple and quick to mount, directly on any existing wall or ceiling. Depending on the total construction of the installation, sound absorption class A, B, C or D will be reached, but all constructions will achieve fire safety class B-s1,d0.

Installation for sound absorption class A

To reach the highest acoustic absorption class for your chosen pattern on walls, add 45 mm mineral wool insulation behind the panels and for suspended ceilings use Gustafs T24 Capax system to create a 200 mm air void, no additional insulation needed.

Acoustic class D

If you install the panels directly on the wall or ceiling the acoustic absorption class will be D.

Fixtures

Depending on the sub-construction, screw or nail directly in the felt. Use screws and nails in colours matching the felt.

INSTRUCTIONS

X= suggested fixing point

Cut the acoustic panels to fit your wall or ceiling. Cut the top panel with a sharp saw and the acoustic felt with a carpenter knife.

1. Plan your installation and decide whether the pattern of the panels should be continuous or whether you should rotate every other panel 180 degrees.

2. To achieve the highest absorption class for your chosen pattern, first regrade the wall with 45 mm battens, 600 mm cc, and place 45 mm thick mineral wool behind the panels.

3. If necessary, adjust the length of the panels to the correct size. Use a sharp saw for the top panel and a knife for the felt.

4. Install with at least 15 fixing points per panel. Choose the mounting method (screwed, glued or stapled) depending on the wall material and location.
Glue is recommended for wall mounting only. In this case, use an MS polymer adhesive and fix the panel during curing.

5. If you are installing in combination with Lamellow+, add a felt strip to the Lamellow+ panel and install with the felt edge against the Figura+ panel to create a consistent spacing.

Avoid devalue engineering of your design

Gustafs has comprehensive, accredited test data for a wide variety of criteria such as fire, acoustics, emissions and many others. We tick all the boxes to comply your project with todays modern building standards. However, the following documents are not available for direct downloading. Please send a request or contact us or our country representatives for more information.

SEND REQUEST FOR CERTIFICATIONS

Available certifications for Gustafs Figura+, a part of the Lamellow+ range

Fire

Reaction to Fire: B-s1,d0

ASTM: A

Environmental performance certification program for buildings

BREEAM
LEED
BVB
Svanen (Nordic Eco)
Sunda Hus

Emissions

E1
M1
Blue Angel
AgBB
French VOC
Belgian VOC

Declaration of Performance

Yes

EPD

Yes

Third party verified EPD, also available on www.environdec.com

FSC®

FSC® (Forest Stewardship Council®)
Gustafs FSC® certificate code is: SAI-COC-010919

And more

Added Urea formaldehyde: No
Isocyanate binders: No
Life Time:> 50 years
Country of origin: Sweden
Hygien cleaning: 70% Alc.
Recycled content: 94%
Recycled Post consumer: 17%
