Acoustic Panels Bespoke Perforation

PANELS CUSTOMIZED TO YOUR DESIGN

Wooden wall and ceiling panels fully tailored according to your drawings. Combining our joinery skills with modern production techniques, these panels will make a difference! Contact us for more information and how we can guide and support you through this process.

Fire Class

A2-s1,d0, ASTM-A

Perforation

Bespoke

APPLICATION

Ceilings, Wall

Bespoke look, same high quality

Our acoustic panels with bespoke perforation have the same attributes, except acoustic values, as our other acoustic panels regarding e.g. fire classification, emissions, core material and installation.

Fire Safety

Designed for use in public spaces, the finished acoustic panel and the total installation offer the highest possible fire class for wooden panels; A2-s1,d0.

Bespoke patterns

Harness the power of our production. Develop your own pattern, or use existing well-designed perforations.

01 IT'S A SYSTEM +
01 IT'S A SYSTEM

Our panels are so much more than a cladding, they’re a complex installation system that enables your creative visions to become a reality.

02 SURFACE FINISH +
02 SURFACE FINISH

We offer several possibilities for you to create a unique expression with our panels. Experiment with surfaces and finishes to find the right look.

03 PANEL COMPOSITION +
03 PANEL COMPOSITION

Our panels are based on a fibre gypsum board with excellent qualities regarding dimensional stability, impact resistance, acoustics, fire-safety and emissions. The unique combination of materials results in a panel suited to the high demands in large public spaces.

PROJECT USING BESPOKE PERFORATION
House of Sweden

“House of Sweden” is the name of the Swedish Embassy in Washington, D.C. The modern, exciting and open building is designed by Gert Wingårdh and Tomas Hansen and stands on the bank of the Potomac – and truly symbolizes scandinavian architecture.

Slotted perforation

Our classic perforation with slits gives you many options in terms of both acoustic properties and design.

SG8

OPEN AREA: 20%
αw/NRC WALL: 0,65 C/0,85
αw/NRC CEILING: 0,65 C/0,85

SH5

OPEN AREA: 15%
αw/NRC WALL: 0,60 C/0,80
αw/NRC CEILING: 0,60 C/0,80

SH8

OPEN AREA: 26%
αw/NRC WALL: 0,75 C/0,85
αw/NRC CEILING: 0,75 C/0,90

SM5

OPEN AREA: 15%
αw/NRC WALL: 0,65 C/0,80
αw/NRC CEILING: 0,65 C/0,75

SM8

OPEN AREA: 26%
αw/NRC WALL: 0,85 B/0,85
αw/NRC CEILING: 0,85 B/0,85

SX8

OPEN AREA: 29%
αw/NRC WALL: 0,80 B/0,85
αw/NRC CEILING: 0,85 B/0,85

QS

OPEN AREA: 28%
αw/NRC WALL: 0,5 D/0,65
αw/NRC CEILING: 0,75 C/0,75

RS8-C40

OPEN AREA: 13%
αw/NRC WALL: 0,60 C/0,70
αw/NRC CEILING: 0,60 C/0,65

SG5

OPEN AREA: 12%
αw/NRC WALL: 0,50 D/0,75
αw/NRC CEILING: 0,55 D/0,70

Downloads

CAD/BIM & SPECIFICATION TEXTS
.zip
PRODUCT SHEET SLOT PERFORATIONS
Wall installations | .pdf
Ceiling installations | .pdf
ACOUSTIC VALUES
Acoustic properties | .pdf
FIRE CLASSIFICATIONS
Reaction to Fire | .pdf
Resistance to Fire | .pdf
TECHNICAL DATA SHEET
Veneer surface | .pdf
Laminate surface | .pdf
Painted surface | .pdf

Bespoke patterns

Create beautiful spaces with our special perforations. Use our existing patterns or create your own unique design in the form of patterns or logos. Contact our experts for advice.

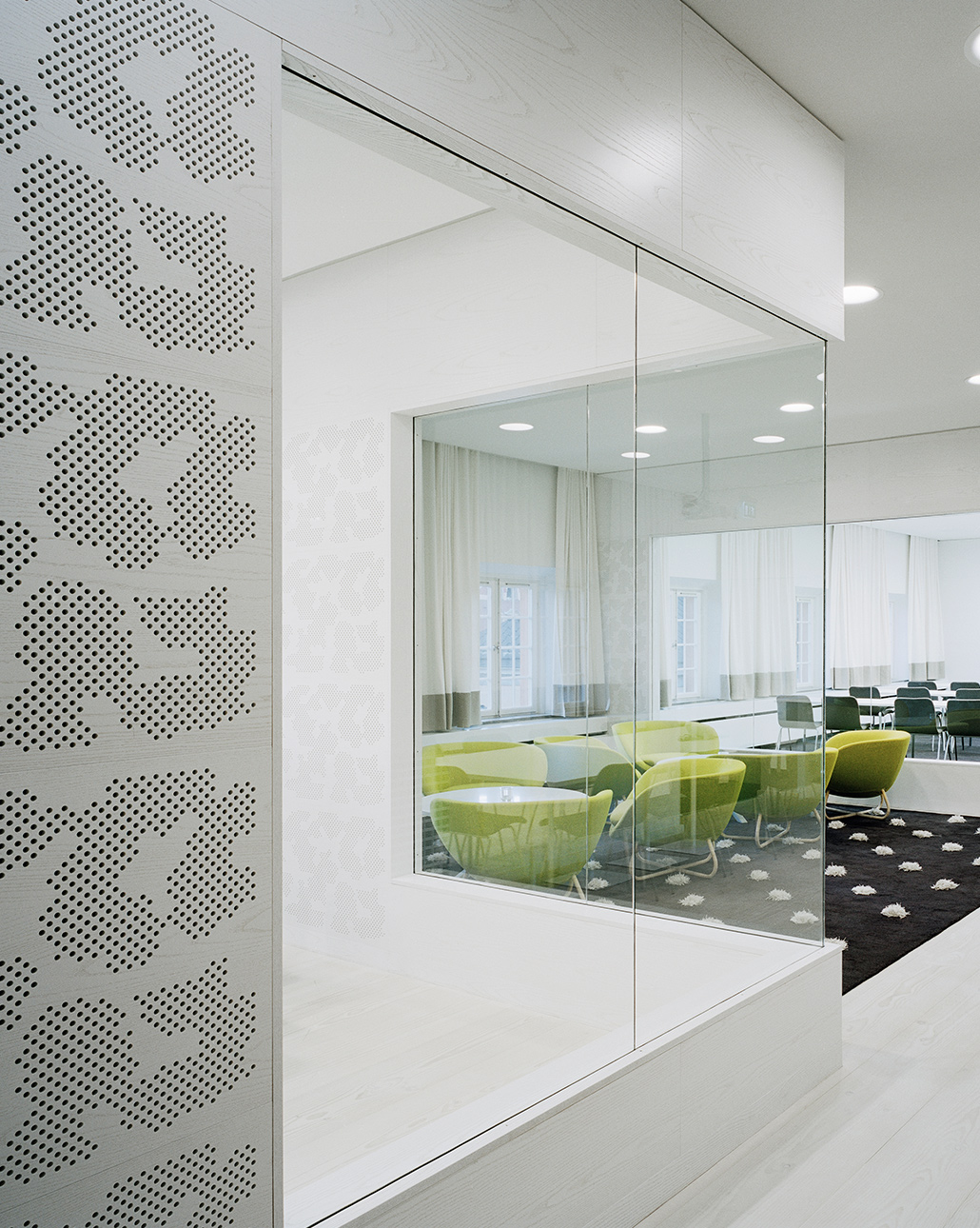

CLOUD

OPEN AREA: N/A

AUTUMN

OPEN AREA: 8%

CROSS

OPEN AREA: 8%

MORSE

OPEN AREA: 15%

MORSE 2.0

OPEN AREA: 14%

SQUARE 2.0

OPEN AREA: 6%

SQUARE

OPEN AREA: 18%

STARS

OPEN AREA: 2%

STATION

OPEN AREA: 4%

STORM

OPEN AREA: 8%

SYMMETRY

OPEN AREA: 27%

TORNADO

OPEN AREA: 21%

WAVE

OPEN AREA: 13%

WAVE 2.0

OPEN AREA: 11%

WAVE 3.0

OPEN AREA: 13%

WAVE 4.0

OPEN AREA: 12%
