Capax Mix – montaż sufitowy

System montażu Capax Mix wyznacza nowy standard elastyczności w projektowaniu sufitów liniowych. Zaprojektowany z myślą o wytrzymałości i precyzji, z bezpiecznym mechanizmem blokowania i wysoką sztywnością skrętną, system Mix pewnie utrzymuje ponadgabarytowe profile Gustafs Linear RIB (do 74 mm grubości), jednocześnie wspierając listwy Gustafs Linear Feltfon, zintegrowane liniowe oświetlenie LED Gustafs oraz podkłady akustyczne – bez zakłócania płynności montażu ani wydajności systemu. Capax Mix gwarantuje idealne połączenia liniowe i nieskazitelne dopasowanie wizualne.

ZASTOSOWANIE

Pomieszczenia mokre, Sufity

TYP / ROZWIĄZANIE

System liniowy

INSTALACJA

CAPAX SYSTEM

KONTAKT

CAPAX MIX

Bezproblemowa integracja wielu modeli sufitów

WIDOK Z GÓRY +

WIDOK Z GÓRY

Gustafs Capax jest sztywny, odporny na korozję i opcjonalnie wyposażony w łatwy w montażu, demontowalny podkład akustyczny w różnych kolorach.

OŚWIETLENIE +

OŚWIETLENIE

Capax Mix pozwala łączyć różne listwy i zintegrowane oświetlenie w jednym, bezproblemowym systemie zatrzaskowym – łatwym w montażu i bardzo wszechstronnym.

FILC I DREWNO +

FILC I DREWNO

Połącz filc i drewno według własnego uznania i stwórz nowe wzory.

ACOUSTEX 9

Acoustex 9 mm acoustic insulation comes in a wide range of colours, perfectly matched to our Feltfon and wood felt products – ensuring both visual harmony and acoustic performance.

APPLICATION: Wall, ceilings, wet rooms
FIRE CLASS: B-s1,d0
MATERIAL: 9 mm rPET felt

Kolory filcu

ACOUSTEX 15

Acoustex 15 mm acoustic insulation is available in many colours

DIMENSIONS (mm): 1194 x 594, 594 x 594

Colour	Colour code	LRV
Jet Black	NCS S 8500-N	3
Rock Grey	NCS S 7502-B	8
Smoke Grey	NCS S 2000-N	58
Linen	NCS S 1005-R80B	75
Desert Tan	NCS S 4005-Y50R	30
Cream Latte	NCS S 2005-Y40R	54
Mouse Grey	NCS S 4000-N	33
Pale Denim	NCS S 3020-B	35
Ivory	NCS S 1510-Y60R	57
Moss	NCS S 3010-G10Y	32
Damask	NCS S 3040-Y90R	20
Buff	NCS S 1505-Y30R	68
Khaki	NCS S 2020-Y20R	31
Amber	NCS S 2050-Y10R	53

Before you start the installation

Plan

Select Ribs on colour shade and plan your ceiling installation, we recommend mixing varying shades randomly.

Room temperature

The room temperature should be between 18-50 C°.

Humidity

The air humidity should be between 25-60%. The humidity in the under laying construction (concrete) should not be higher than 15%.

Step by step guide

STEP 1

1. Suspend the Nonius ceiling hangers from the ceiling. Plan the positioning of the Nonius according to steps 3 and 4. ↓

STEP 2

2. Use the adapter NONIUS-CD to connect the BASE-CF profile to the ceiling hangers.

Nonius-CD adapter for ceiling installations

STEP 3

3. Suspend the BASE-CF profiles with a repeated interval of 600 mm, measured from the centrums of the profiles (cc).

A = 600 mm

Suspended Base-CF

STEP 4

4. Measured along the length of the BASE-CF, the connection to the ceiling must be made every 600 mm .

B = 600 mm

STEP 5

5. Level the height using a laser and secure the hanger with the Nonius-CD with the locking pin.

STEP 6

6. Secure the position of the NONIUS-CD by bending the 2 wings and the long leg of the locking pin.

STEP 7

7. When needed, connect the BASE-CF in-line with profile 3263 and assure the cc distance between the fixation points remains constant. Increase the friction between the engaging components by slightly twisting one corner inwards, on each BASE-CF.

Base-CF in-line connection using Capax profile 3263

STEP 7B

7b. The ribs can be installed with spacing of 24 mm, 86 mm, or 148 mm. The spacing can be increased in increments of 62 mm.

STEP 8

8. Snap the distance profile 3262 perpendicular to the BASE-CF every 1200 mm.

STEP 9

9. Two distance profiles Capax 3262 will partially run parallel, where mounted on the same BASE-CF.

STEP 10

10. Install Acoustex-15 insulation or Acoustex-9 felt onto the ”T” section of the BASE-CF.

STEP 11

11. Attach U-FIX-CF-80 to the concealed track of the Linear Rib.

STEP 12

12. Use 5 pcs of U-FIX-CF-80 per 2400 mm length with a maximum cc interval of 600 mm.

A = 600 ± 10 mm

STEP 13

13. Attach the Linear Ribs to the BASE-CF carrier, starting in position A.

You must hear 3 ”clicks” to finalize the attachment.

STEP 14

14. The in-line connection of 2 ribs should be secured by a BASE-CF profile.

STEP 15

15. The end of a rib must not protrude unsupported more than max 200 mm.

Optionally, ad Acoustex-9, in the colour of choice, inside the BASE-CF.

Wood

Wood is a natural product and each veneer is unique. Colour, pattern and structural differences are considered as normal and a part of the décor. Select panels and ribs on colour shade and plan your wall or ceiling installation, we recommend mixing varying shades randomly. Wood changes over time when exposed to UV-light.

Conditions for Storage, Installation and Use

Only for indoor use and not in wet rooms. Storage, Installation and Use at 18-50 C° and 25-60% air humidity. The humidity in the under laying construc-tion (concrete) should not be higher than 15%. Gustafs solutions are sensitive to humidity and water, therefore they should always be stored dry and in-door.

Storage & Transportation

– Do not transport unsecured panels.
– Do not stack pallets.
– Keep the packaging closed during storage.
– Lift panels flat, vertically and one at the time.
– Avoid exposure to strong and direct sunlight.

Cleaning

Cleanings is done by dry mop or vacuum. Use synthetic cleaning fluid without ammonia for greasy stains, fruit, wine and coffee. Blood is removed with cold water.

Our UV coated and Laminate surfaces are approved for hospital cleaning products containing up to 70% alcohol.

On building site

– Avoid exposure to strong and direct sunlight.
– Do not expose visible surfaces to sharp objects during installation.
– Do not slide products on each other. Lean panels against a wall for short term storage.
– Protect both non-installed and installed panels and ribs from impact coming from ladders, trolleys, furniture installation, etc, including all other workers and their tools.

GUSTAFS LIGHTING

Linear LED lighting

Gustafs F-LINE light fixtures are designed in harmony with our Gustafs Linear Rib System.

Gustafs F-Line is an integrated linear lighting designed to be fully compatible with our Capax MIX installation system for Gustafs Linear Rib. This means that the installation of linear LED lighting is as reliable and quick to mount.

DOWNLOAD PRODUCT SHEET

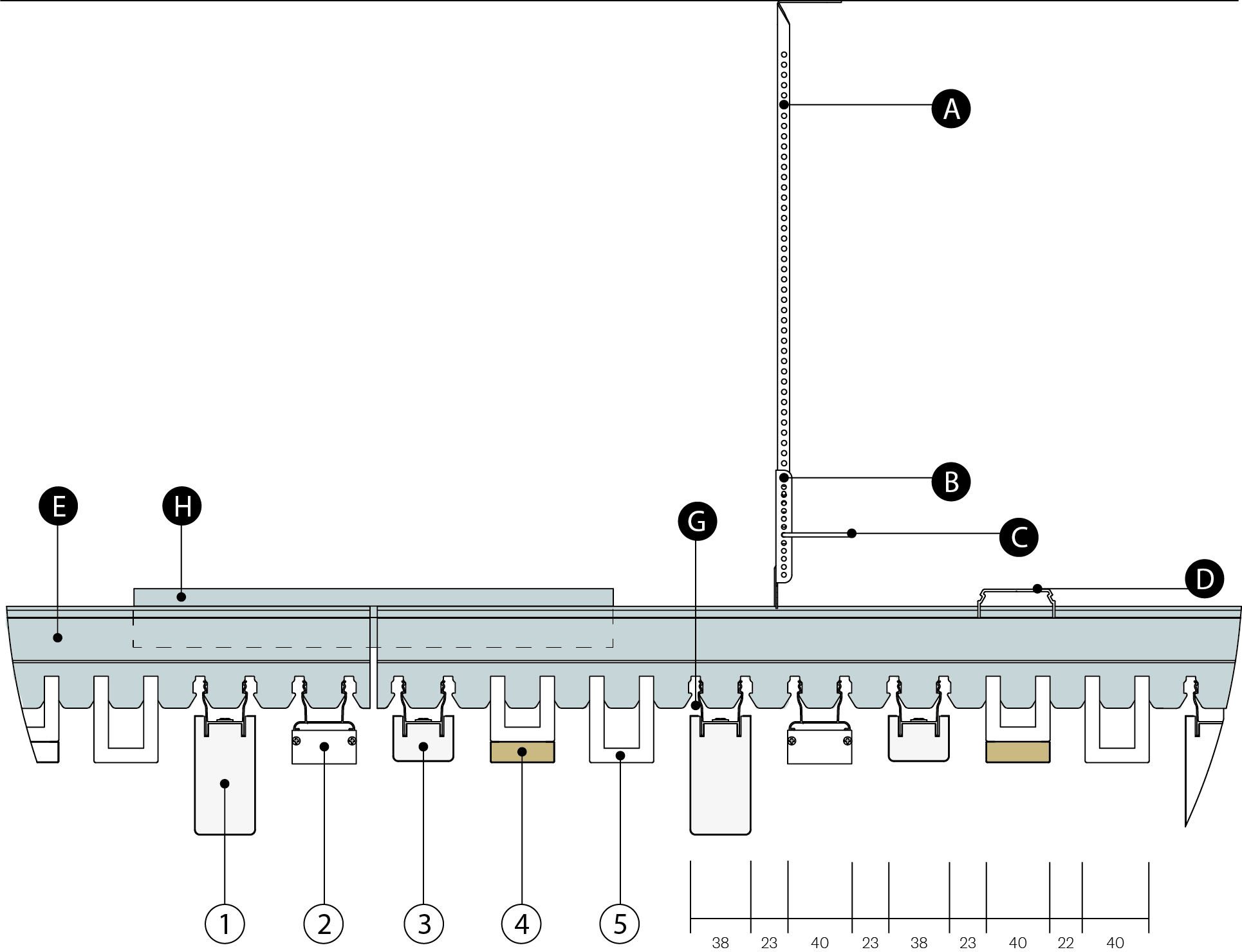

CEILING

A. Nonius hanger
B. Nonius adapter
C. Nonius locking pin
D. 3262 distance profile
E. BASE-CF
F. Rib
G. U-FIX-CF-80
H. 3263 Connector
I. Acoustex 9 mm

1. Linear Rib-R, Rib-S, 74mm
2. Light
3. Linear Rib-R, Rib-S, 28 mm
4. WoodFelt
5. Feltfon, Depth: 54 mm
